Wireless Digital Camera System for Farm Equipment

Name: Wireless Digital Camera System for Farm Equipment
Brand: China-Manufacturer-Directory.com
SKU: 706161232
Availability: InStock
Rating: 4.7 (22 reviews)

Supplier:	Veise (Guang Zhou) Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	DF-536H2361
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wide View Angle(Cr>10):	(up/ Down): 70/70 (Left/Right): 50/70
Color System:	PAL/NTSC
Receiving Sensitivity:	≤-86dBm(1MHz Qpsk Md300re)
Brightness (CD/M2):	450
Type:	Monitoring System
Application:	Sentinel Surveillance
Feature:	High Definition
Video Capture System:	Video Camera
Video Transmission System:	Wireless Transmission
Software Function:	Monitoring+Control
Software Usage:	Vehicle Monitoring Software
Client Software:	Without Client Software
Model:	CCTV
Sensor:	CCD
Kind:	Autofocus Lens
Technology:	Wireless
Horizontal Resolution:	480tvl

Product Description

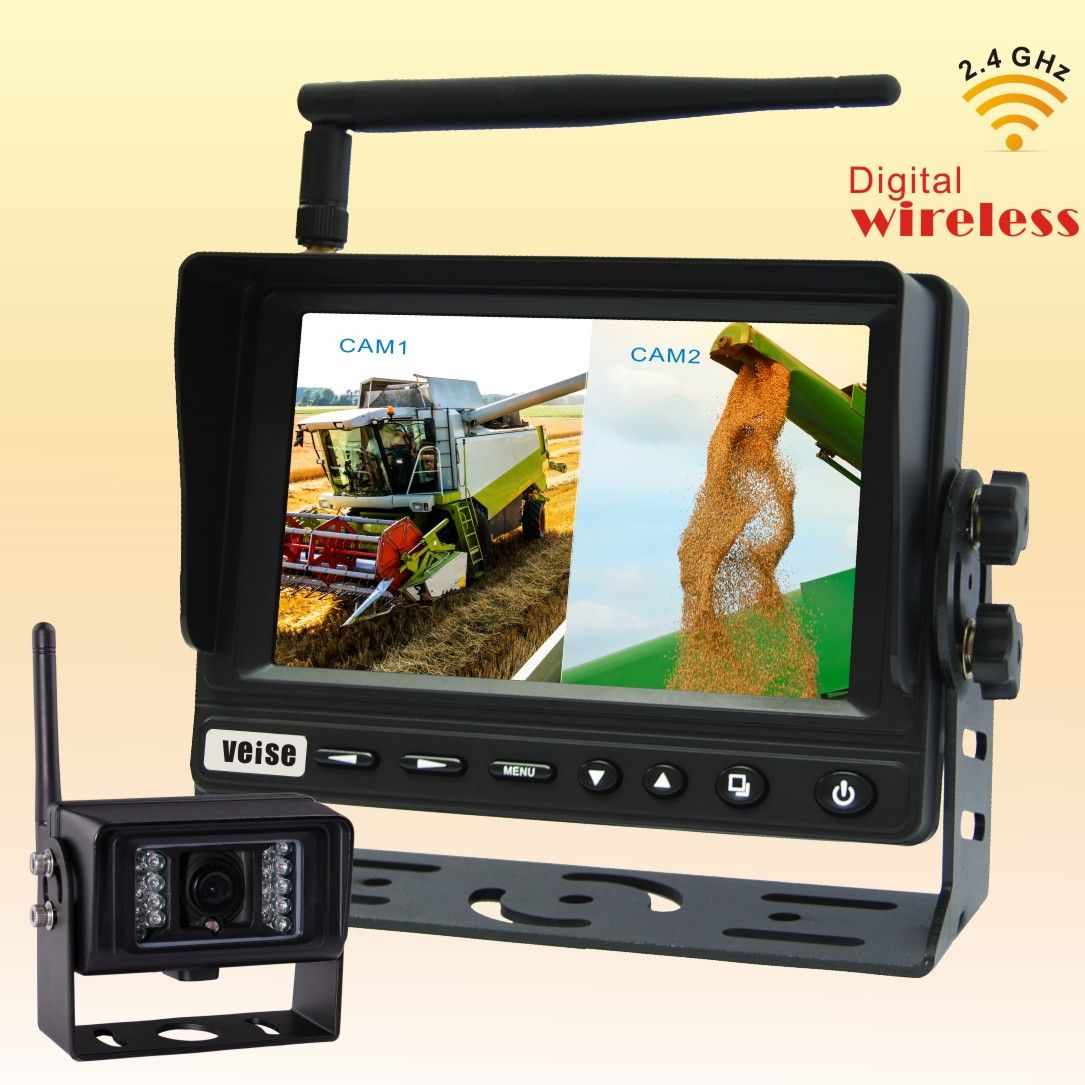

Wireless Digital Camera System for All Vehicles

For Farm Tractor, Combine, Cultivator, Plough, Trailer, Truck
Camera Observation Video System That Mounts To Your Tractor, Combine, or Trailer ,

System fits to many brands including: John Deere, Ford / New Holland, Case - International, Massey Ferguson, Kubota, Allis Chalmers, White / Oliver / Mpl Moline, Deutz, Yanmar, Gleaner, Steiger, Versatile, and more.

Digital Wireless Waterproof Monitor Camera system

igital Wireless Receive Monitor(Model:SP-536)

5" Digital Screen TFT LCD Monitor

Built in 2 CH 2.4GHz Digital Wireless Receiver

Operation Frequency:2400 ~ 2483.5MHz

Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE)

Overlapping Hopping Channel:80

Color System:PAL/NTSC

Display Resolution: 800RGB(H) X 480(V) dot

Wide view angle(CR>10):(up/ down): 70/70 (left/right): 50/70

Brightness (cd/m2): 300

Contrast ratio: 500:1

Operating temperature: -20ºC to +70ºC

Storage temperature: -30ºC to +80ºC

Free Operating Voltage: DC10~32V

External dimensions:(L x W x T) (139X100X49mm)

Weight Approx: 450g

Digital Wireless Waterproof IR Camera(MODEL:DF-8275H-SFS*1)

Image Type: 1/3 inch Color CMOS

Built in 2.4GHz Digital wireless transmitter

Transmission Power:18dBm with Power control

Line of Sight Range:≤100M

Horizontal Resolution:500TV Lines

Effective pixel:NTSC:720(H)X480(V);PAL:720(H)X480(V)

Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)

Free viewing angle: 120°

Waterproof: IP69K

Shockproof: 10G

Free Operating Voltage: DC10-32 Volts

Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)

Weight : 450g

Accessories

U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*3,User's Manual

Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.

Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.

Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.

Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.

Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.

Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
