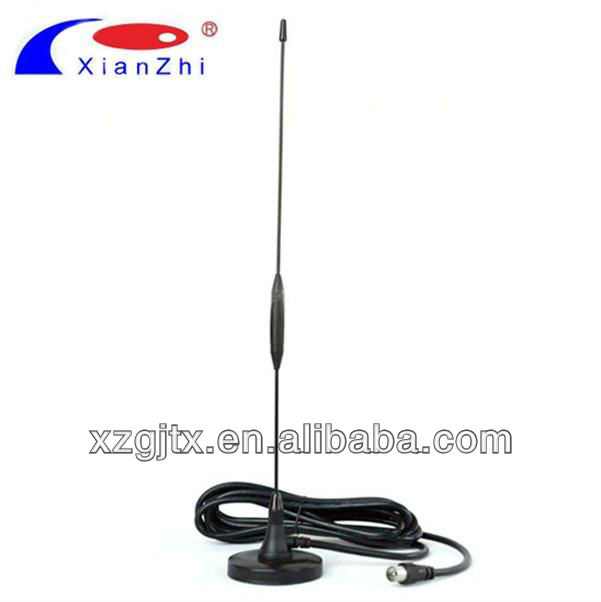

Wireless Digital TV Antenna for DVBT Receiver 5dBi

Name: Wireless Digital TV Antenna for DVBT Receiver 5dBi
Brand: china-manufacturer-directory.com
SKU: 744284585
Availability: InStock
Rating: 4.5 (111 reviews)

Supplier:	Shenzhen Xianzhi Electronic Co., Ltd
Price:	US $ 1.5-1.9/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	174-230/470-862
Type:	Indoor
Usage:	Car Antenna
Directionality:	Omnidirectional Antenna
VSWR:	<1.5
Material:	Steel Plate & Cu

Product Description

The antenna has high gain, wide frequency band, interference resistance, plastic molding method, high-strength magnet and crimp into one feeder, antenna size, light weight, stable performance, reliable, convenient installation.
We are a manufacturer that specializes in DVB-T antenna, GPS antenna, GSM antenna and GPS/GSM combined antenna, widely used for leading technology fields such as car navigation, communication, global positioning systems. Our products are with good quality and competitive price.

Electrical Specifications
Model Antenna	XQC-DVBT-ZC
Frequency Range (MHz)	VHF174-230/UHF470~862
Bandwidth (MHz)	V56 / U392
Input Impendence (ohm)	50
V.S.W.R	≤1.5
Gain (dBi)	5
Lightning Protection	Direct Current
Max Input Power (w)	50
Mechanical Specifications
Antenna HEIGHT	385mm
Base dimension	63mm
Material	Plastic
Cable (m)	1.5m(or as demand
Connect Type	IEC(or as demand)
Radiator	Cu
Working Temp	-30~65°C
Mounting	Magnet
Radome Color	Black
Cable	rg174

Shenzhen Xianzhi Electronic Co. Ltd was founded in 2003, is the first domestic engaged in wireless communications antenna research and development of high-tech enterprises. Focus on product: GSM antenna, GPS antenna, WiFi antenna, the gain of the antenna, Yagi antenna, base station antenna, GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (Wi-Fi, WLAN), 3.5GHz (WiMAX), 5.8GHz, wireless spread spectrum communication antenna series (including: Omnidirectional, Yagi, indoor coverage ceiling. Hanging, parabolic, plate, vehicle suction cup series antenna), DVB-T/DMB-T/CMMB mobile digital television antenna. Low frequency antenna: 315MHz/433MHz wireless data transmission / wireless monitor / wireless meter reading antenna, GSP navigation antenna, power divider / lightning arrester, development and production of signal enhancer and other devices and other communications equipment; At present, Yin Zhi trade has formed hundreds of products chain, covered with wireless internet access, wireless power load control, wireless distribution transformer terminal, wireless, wireless data transmission, satellite positioning, application fields of wireless radio and television public communication system.

Xianzhi electronic company since its inception, to develop national responsibility, to create brand, crowded trade in terms of the pursuit, with 'development for safe, reliable and development' oriented, pragmatic and enterprising!
