Product Specifications
| Prod Model: |
W14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Transmission: |
Wireless Alarm |
| Certification: |
FCC |
| Usage: |
Window |
Product Description

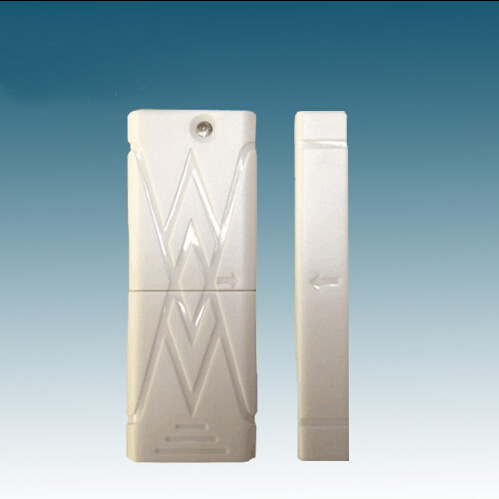

User manual of Wireless Door/ window Sensor
The wireless door/window Sensor and are widely used in security alarm system and matched with master unit for usage. It is equipped with a magnet (movement of the magnet triggers an internal sensor in the detector). You can locate the transmitter module on the frame of the door or window, with the magnet on the moving part of the door or window, It will send RF signal to the master unit for alarming once be triggered (disconnect).
Specification:
1. Operating voltage: 12VDC
2. Static current ≤ 2μ A
3. Operating current ≤ 40mA
4. Operating frequency: 433.92MHZ+/-0.2MHz
5. Transmitting power: ≥ 10mW
6. Size: 28x76× 15mm(transmitting partion),
10x76x15mm (magnet partion)
7. Encode IC: Learning code
8. Modulation Mode: ASK
9. Opearating temp: -20º C ~ +50º C
10. Battery: 12V23A
11. LED: Trigger transmitting indication
Before sticking the module, please clean the area where you plant to stick it.
A. Dust or humidity may cause the module fall off.
B. Parallel the module and the magnet exactly, and the distance should be less than 10mm. Make door contact upward vertically.
The magnet should be pasted at the side which is near the indicator light on the module. Make sure the light faces you. Please stick the magnet on the door and the module on the door case to prevent the module's fall which causes by the shake of the door.
C. It is suggested to change the battery once 6 mouths.
Please try to shorten the distance between the module and the unit base. It is suggested less than 30 meters.
Try not to make the concrete wall or electrical equipments between the unit base and the module in order to prevent the signal being cut off.
Keep the module dry.
If the parts are found inverted, it can be pull down and stick again.
