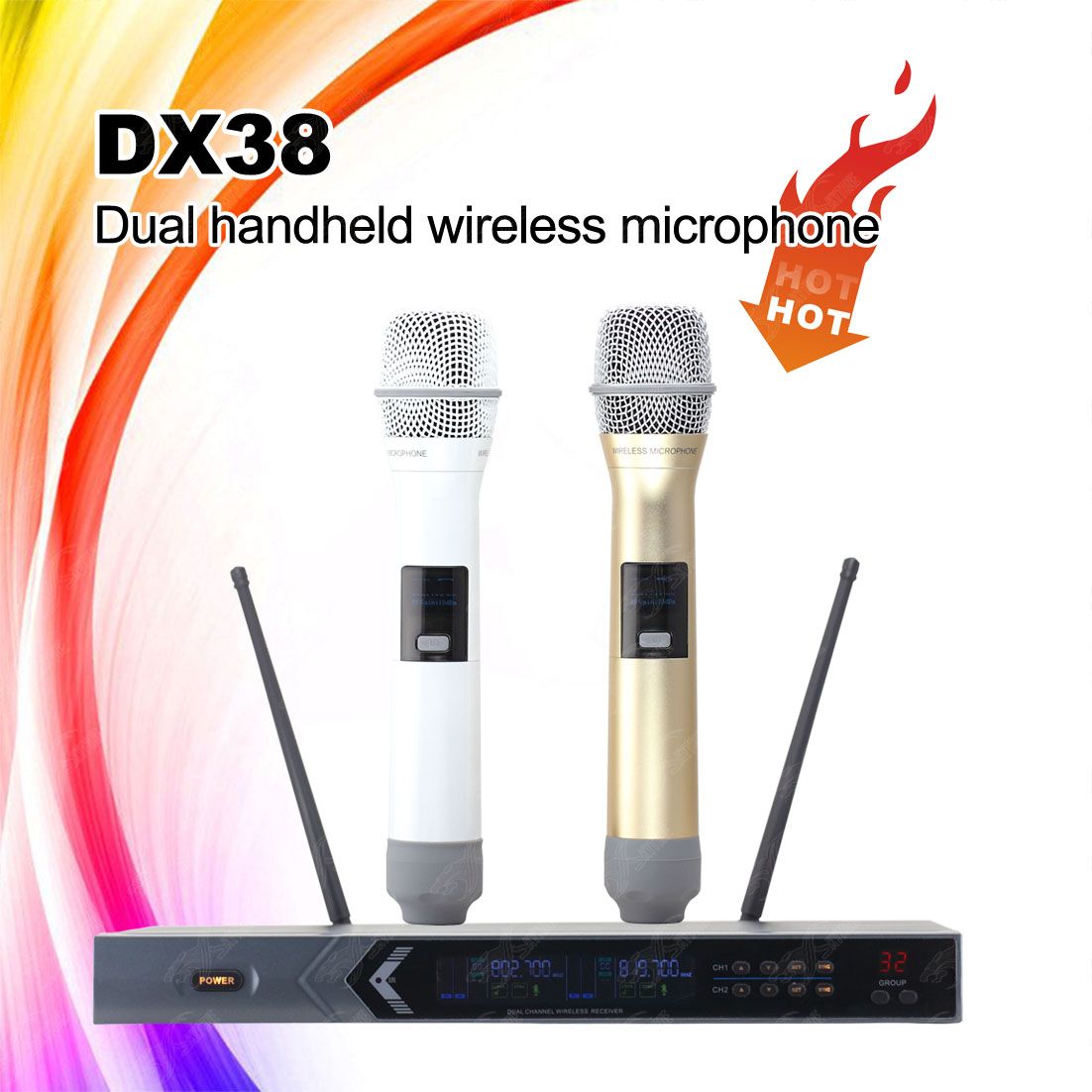

Wireless Dynamic Double Handheld Microphone

Product Specifications

Prod Model:	DX38
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Carrier Frequency:	UHF610~920MHz
Channel Numbers:	Dual Channels
Power Supply:	DC 12V~16V 10W
Continuous Working Hours:	12hours
Oscillation Mode:	Pll Integrated Control
Working Distance:	100m
Cartridge Type:	Dynamic
Style:	Handheld Microphone
Application:	Amplify
Signal Transmission:	Wireless
Directivity:	Omni-direction
Transducer Principle:	Electrodynamic Microphone
Sound Field Force:	Pressure Differential Type
Connector(',s):	XLR 3 Pin
Wireless Technology:	UHF
Output Impedance:	1000-20000Ω

Product Description

Wireless Dynamic Double Handheld Microphone

Handheld mics
wireless mics
cordless microphone
wireless system
wireless microphones
audio microphones
professional microphones
dual wireless microphone
UHF karaoke microphone


Features:

Using New designed EIA international standard 1U metal case.
LCD display, display working channels or frequency,RF AF signal strength at real-time. Transimitter batteries are convenience for  debugging and testing.
Super wide frequency(UHF 610~920MHz), selecting frequency automatic, Infrared automatic frequency fuction, transimitter can be locked the preset channel  of receiver exactly once press SYNC.

Stable PLL oscillation circuit, matched with noise detection, mute control fuctions, which can prevent noisy from computer, song machine, DVD ect.

Dual channels presrt 32 groups noninterference frequency points, total 4 channels frequency range which provide 128 groups frequency points for users selection.

120MHz wide frequency transimitter, 4 different frequencies machines can be mutual used optional, which convenience for adjustment and management.

Organizing into groups quickly, multi machines can be used at the same time, easy setup.

Working distance: 100M(Open space)


DX38 Specification
Receiver Specification
Carrier frequency	UHF610~920MHz
Channel numbers	dual channels
Modulation Mode	FM
Oscillation mode	PLL integrated control
Sensitivity	Input 6 DBV at Rotation Degree equal to 25KHz, S/N > 60 db
Bandwidth	30 MHz
Maximum deviation	±45KHz
Integrated S / N	>105dB
Integrated T.H.D	<0.7% 1khz="" br=""
Integrated Frequency Response	45HZ~18KHZ +-3dB
Power supply	DC 12V~16V 10W
Output connector	XLR balance and Jack unbalance
Working distance	100M
Handheld transmitter Specification
Carrier frequency	UHF610~920MHz
Oscillation mode	PLL integrated control
Harmonic Radiation	<-65dbm
Maximum deviation	±45KHz
Bandwidth	120 MHz
Cartridge type	dynamic
RF output power	15MW
Battery	AA x 2
Power consumption	<90ma
continuous working hours	12hours
Bodypack transmitter Specification
Carrier frequency	UHF610~920MHz
Oscillation mode	PLL integrated control
Harmonic Radiation	<-65dbm
Maximum deviation	±45KHz
Bandwidth	120 MHz
Cartridge type	condenser
RF output power	15MW
Battery	AA x 1
Power consumption	<90ma
continuous working hours	12hours

You can order aluminum case as below details:

1 aluminum case can fill in 2sets of single channel receiver microphone, and fill 1 sets of dual channel receiver microphone.
