Product Specifications
| Prod Model: |
WL-JT-120CG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Zones: |
120 Wireless Zones & 2 Wired Zones |
| Timing Arrm/Disarm: |
4 Groups |
| Groups Of Phone No.: |
6+3 |
| GSM Frequency: |
850/900/1800/1900MHz |
| Type: |
Anti-Theft Alarm |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Passive |
| Certification: |
CCC |
| Application: |
Indoor |
| Sensor Type: |
Infrared Alarm System |
| Working Principle: |
Electro-Optical Type |
| Transmission Mode: |
Wireless |
| Alarm Volume (',within 1m): |
≥110dB |
| Receive Frequency: |
433.92MHz |
| Usage: |
Smoke |
Product Description

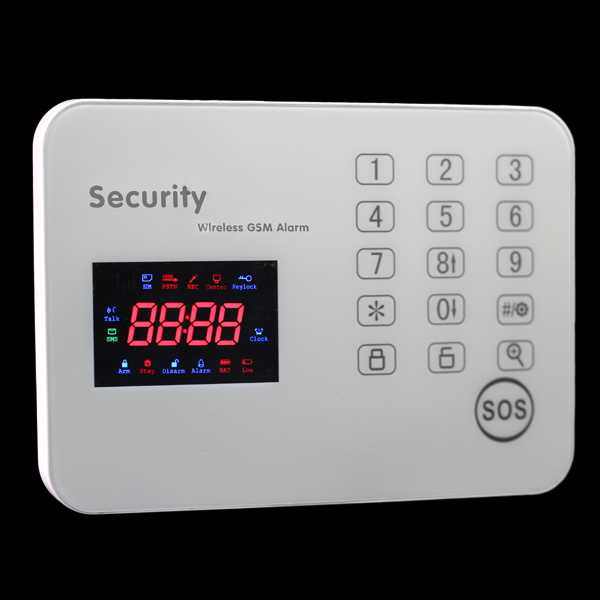

Wireless GSM Security Alarm System for home usage
1. Digital clock display with two groups alarm function, time optional.
2. Support GSM mobile network, provide redundancy for extra stability.
3. Allow up to 120 wireless defense zones and 2 wired zones.
4. Each can be defined as one of the 8 zone types including NORMAL, STAY, INTELLIGENT, EMERGENCY, CLOSED, HELP SENIOR, WELCOME and CHIME.
5. Four sets of scheduled arm/disarmed function, each time you can select the included period of time and different defense zone, eliminating of need of the manual procedure, realizing the beauty of automatic controls.
6. Support configuration via keyboard, phone ( handset ) or SMS messages to System
7.6 group voice alarm phone number for alert calling, 3 group phone number for help senior, 6 group for SMS messaging, numbers saved inside EEPROM without lost upon power failure.
8. Different zones can dial a pre-set telephone number.
9. Support ISD automatic voice mailbox for playback message upon alert. Maximum length of voice message is 10 seconds.
10. Telephone (phone) long-distance telephone control for arming, disarming, monitoring, remote announcement.
11.1 Set of normally open signal outputs, relay linkage output, home appliances remote control can be realized.
12. Wireless intelligent study coding, compatible with PT2262 normal encoding and a 1527 encoding, convenient and flexible for adding or reducing accessories. Maximum support 150 remote control and 150 sensors.
13. Unique black box features, you can display most recent 72 disarmed records and 102 recent alarm recording. Accurately shows the alarm time and control code.
14. Built-in Ni-Hi rechargeable battery and automatically switchable upon power failure, and notification will be sent via SMS.
15. Panel integrated with quad-band GSM/GPRS industrial graded module, stable and reliable.
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. Two years warranty is provided for all models.
Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
| Input Voltage | DC12V/1A |
| Standby Current | <55mA |
| Alarming Current | <450mA |
| Wireless Frequency | 433MHz, 2262/4.7MΩ |
| GSM Frequency | 850/900/ 1800/ 1900MHz |
| Back-up Battery | NI-HI AAA*6 DC7.2V |
| Siren Volume | 110dB |
