Easytech Systems Inc. >> Wireless Handheld Barcode Data Collector (OBM-767)

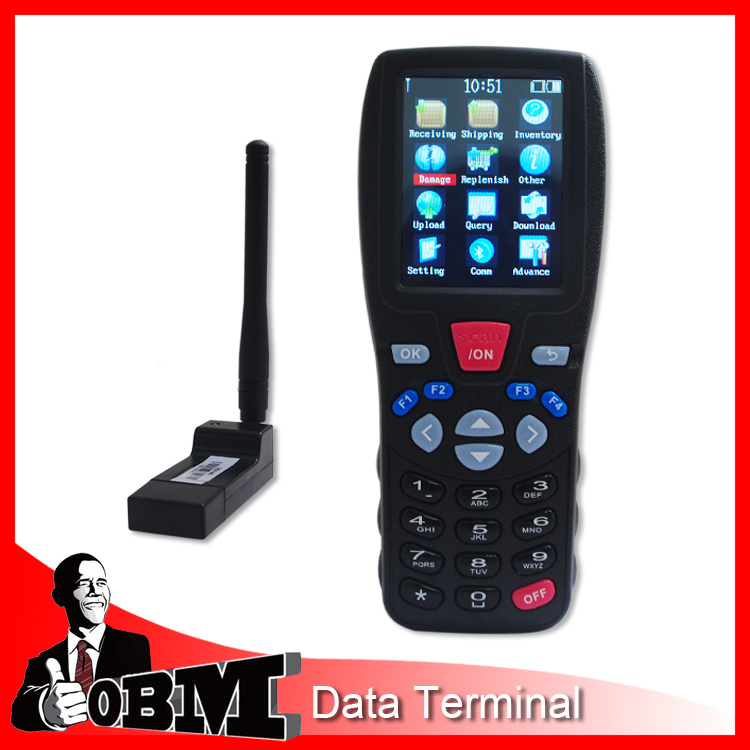

Wireless Handheld Barcode Data Collector (OBM-767)

Name: Wireless Handheld Barcode Data Collector (OBM-767)
Brand: China-Manufacturer-Directory.com
SKU: 722691855
Availability: InStock
Rating: 4.5 (125 reviews)

Supplier:	Easytech Systems Inc.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OBM-767
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	Ism Band,433MHz
Modulation:	Gfsk
Rate Of Transmission:	50kbps
Output Power:	20dBm (Max)
Transmission Coverage:	300m Visibility Range(Max.)
Antenna:	2.5dB
Light Source:	650nm Laser Diode
Scan Pattern:	Single Line
Scan Rate:	45±2 /Sec
Scan Precision:	4mil
Type:	Handheld Computer
CPU Type:	ARM
Memory Capacity:	16MB
OS:	Obm
Screen Size:	2.8"

Product Description

Wireless Handheld Barcode Data Collector (OBM-767)
FEATURES:
1. MULTI-FUNCTIONAL
Covers the full circulation of commodity: Receiving, shipping, cycle count, replenishment and defect report
2. RECONIZABLE
Supports download of item file: Barcode scanned matches to the item automatically and displays on screen right away
3. SIMPLE
2.8" color display and graphical menu makes it easy to understand
4. EFFICIENT
Report is automatically generated right after inventory count, 90% savings on time, manpower and administrative overhead
5. SAFE
Supports real-time, storage and batch transmission
6. WIRELESS
Adopts mainstream wireless and storage technology, free from cables
7. ENDURING
2800mA POLYMER-Lithium-ion battery ensures long working hours

About Us:
Easytech is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.

TECHNICAL PARAMETERS
Radio Specifications
433MHz
Frequency	ISM band , 433MHz
modulation	GFSK
Rate of Transmission	200Kbps
Output Power	20dBm (max)
Transmission Coverage	300M visibility range ( Max. )
Antenna	Integrated PCB
Performance Characteristics
Light Source	650nm Laser
Scan Pattern	Single line
Scan Rate	48±2 /sec
Scan Precision	4mil
Scan Width	20mm@window , 220mm@200mm
Depth of Field	0 ~ 250mm ( 0.33mm , PCS 90% )
Roll(Till)	30°
Pitch	65°
Skew(Yaw)	55°
Resolution	30% minimum reflectance
Operating Mode	Continuous / itemized scanning
Error Rate	Error Rate
Indicator	beeper , LCD screen
Decode Capability	EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI .
Interfaces supported	Mini USB receiver , optional RS232 or PS2
Electrical Parameters
Receiver Voltage	DC5V
Receiver Current	50mA
Battery	Rechargeable lithium ion battery (3.7V ,1900mAh)
Charging Indicator	LCDdisplay
Stockcount Working current	120mA
Stockcount Standby Current	70mA
Laser Safety	national class2 regulatory
EMC	CE & FCC DOC compliance
Physical Characteristics
Memory	16M
keypad	23
Stockcount Dimensions	160mm×68mm×29mm
Material	ABS + silicon

Easytech is one of leading high technology companies which is specialized in the Auto-Identification (Barcode & RFID machine) industry. Our products include Laser Barcode Scanner, CCD Barcode Scanner, Barcode Data Terminal, RFID Data Terminal and RFID Reader.

In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech complies with a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and releases products out of new demands of customers to meet the ever-changing market needs. Besides, Insisting on a principle of "well done of the experienced product before moving on to the next new, Making a plan on the new generation for the future while developing the present", Easytech is able to release at least one of leading products from the same industry every year.

Because of excellent performance and high quality of the products, Easytech has imajor companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also our products are seen in many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brand of Barcode Industry" by the Auto-Identification Association of China.

Let us work together and make a better tomorrow with all new and old customers from all over the world.
