Product Specifications
| Prod Model: |
HDE004 |
| Markets: |
North America,South America,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Housing: |
Plastic |
| Colour: |
Black/White |
| Size: |
148 X 97 X 18 (Mm) |
| Gross Weight: |
436g (Including The Base) |
| Video Format: |
TV 1080p, 1080I, 720p, 576p, 480p; VGA; Svga; Xga; Sx |
Product Description

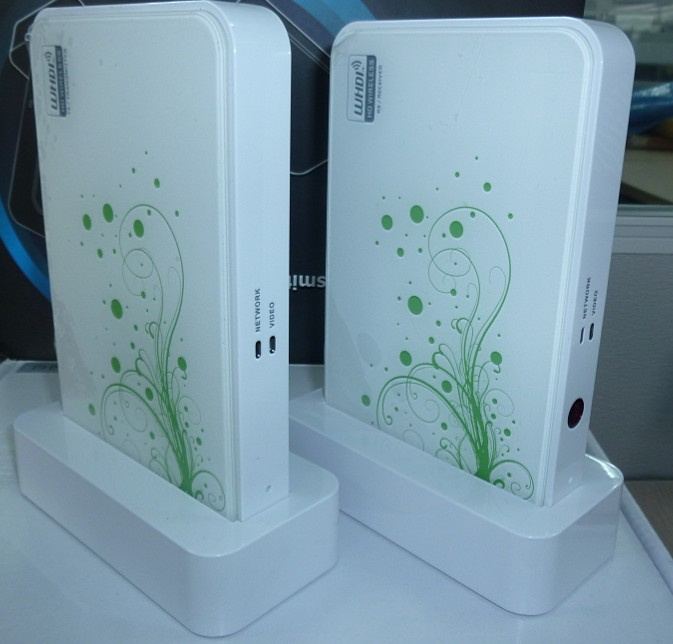

Wireless HDMI transmitter/receiver
Product Description
Wireless HDMI Extender
Product Features
*Instant wireless HD AV transmission;
*Transmission range in the vacancy indoor environment 30m;
*Supporting the video HDMI interface at the maximum of 1080P60 Hz;
*Supporting HDMI1.3 and HDCP1.2 protocols;
*Supporting the EDID function;
*Supporting the CEC function (for the receiving and display devices);
*Supporting the IR extension transmission function;
*Transmission power 12 dBm;
*Supporting the point-to-point transmission function currently
*which can be expanded to the point to multi-point or multi-pointto multi-point transmission function;
*Supporting the AES128-bit image encryption Function;
*Supporting the reverse back-transmission channel at the maximum rate of 100 kbs;
*Supporting OSD display;
*Supporting WHDI 1.0 specification.
Technical Specifications
Video formats supported: TV 1080p, 1080I, 720p, 576p, 480p
PC: VGA(640X480), SVGA(800X600),
XGA(1024X768), SXGA(1280X1024)
Audio formats supported: PCM, DTS, DOCBY DIGITAL
RF communication system: MIMO
Modulation mode: OFDM
Maximum transmission power: 12dBm
Image transmission distance: >30m
Image delay: <1 ms
Transmission/receiving: Antenna mode Built-in
Operating frequency: 5.1~5.9GHz
IR carrier modulation: Frequency supported 38KHz
Operating power supply: 100-240V AC mains, 5V 2A DC power
Storage temperature: -20~80OC
Storage temperature: -10~50 C
SPECIFICATIONS:
Items: HDE004
Transmitter
Transmission Frequency: 5.1~5.9GHz
Frequency Stability: ± 4PPM
Bandwidth: 40MHz
Transmission Power: Ge; 12dBm
Receiving Sensitivity: ≤ -75dBm
System Latency: ≤ 1ms
Sending/receiving channel: 4 channels for sending/1channel for receiving
HD video protocol: HDMI 1.3
HD video encryption protocol: HDCP 1.2
Unobstructed Effective Range: ≥ 30m
Power Supply: 5VDC
Consumption Current: 2A 10%
Dimensions (W x D x H): 148 x 97 x 18 (mm)
Approx. Weight: 440g (including the base)
Receiver
Receiving Frequency: 5.1~5.9GHz
RF communication system: MIMO
Modulation mode: OFDM
Frequency stability: ± 4PPM
Bandwidth: 40MHz
Transmission Power: ≥ 15dBm
Receiving Sensitivit: ≤ -65dBm
System latency: ≤ 1ms
Sending/receiving channel: 1channel for sending/4 channels for receiving
HD video protocol: HDMI 1.3
HD video encryption protocol: HDCP 1.2
Unobstructed Effective Range: ≥ 30m
Power Supply: 5VDC
Consumption Current: 2A± 10%
Dimensions (W x D x H): 148 x 97 x 18 (mm)
Approx. Weight: 436g (including the base)
Operating Temperature: -10 C~50 C
Storage Temperature; -20 C~80 C
Operating Humidity: 15~85%RH
|
|
Items |
GBS-331 |
|
Transmitter |
Transmission Frequency |
5.1~5.9GHz |
|
Frequency Stability |
±4PPM |
|
Bandwidth |
40MHz |
|
Transmission Power |
≥12dBm |
|
Receiving Sensitivity |
≤-75dBm |
|
System Latency |
≤1ms |
|
Sending/receiving channel |
4 channels for sending/1channel for receiving |
|
HD video protocol |
HDMI 1.3 |
|
HD video encryption protocol |
HDCP 1.2 |
|
Unobstructed Effective Range |
≥30m |
|
Power Supply |
5VDC |
|
Consumption Current |
2A 10% |
|
Dimensions (W x D x H) |
148 x 97 x 18 (mm) |
|
Approx. Weight |
440g (including the base) |
|
Receiver |
Receiving Frequency |
5.1~5.9GHz |
|
RF communication system |
MIMO |
|
Modulation mode |
OFDM |
|
Frequency stability |
±4PPM |
|
Bandwidth |
40MHz |
|
Transmission Power |
≥15dBm |
|
Receiving Sensitivit |
≤-65dBm |
|
System latency |
≤1ms |
|
Sending/receiving channel |
1channel for sending/4 channels for receiving |
|
HD video protocol |
HDMI 1.3 |
|
HD video encryption protocol |
HDCP 1.2 |
|
Unobstructed Effective Range |
≥30m |
|
Power Supply |
5VDC |
|
Consumption Current |
2A±10% |
|
Dimensions (W x D x H) |
148 x 97 x 18 (mm) |
|
Approx. Weight |
436g (including the base) |
|
|
Operating Temperature |
-10 C~50 C |
|
Storage Temperature |
-20 C~80 C |
|
Operating Humidity |
15~85%RH |
