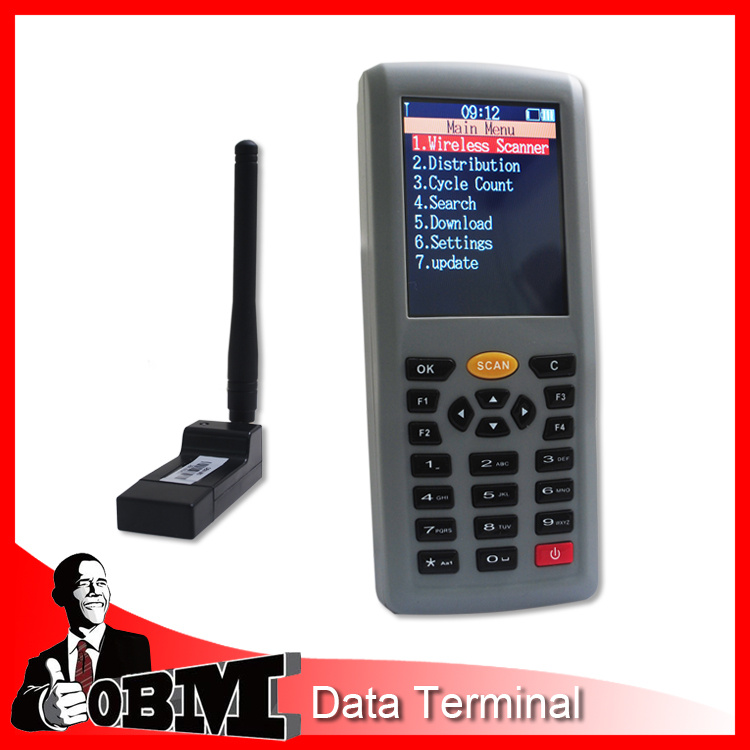

Wireless Laser Barcode Handheld Data Collection Device (OBM-9800)

Name: Wireless Laser Barcode Handheld Data Collection Device (OBM-9800)
Brand: china-manufacturer-directory.com
SKU: 739673435
Availability: InStock
Rating: 4.5 (107 reviews)

Supplier:	Easytech Systems Inc.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OBM-9800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery:	Rechargeable Lithium-Ion (3.7V,2800mAh)
Working Time:	8 Hours
Standby:	15 Days
Dimension:	150mm×63mm×31mm
Material:	ABS + Silicone
Charging Indicator:	LCD
Light Source:	650nm
Decode Rate:	45±2 Scans / Second
Resolution:	4mil
Scan Width:	20mm@Window,100mm@100mm
Type:	Handheld Computer
CPU Type:	ARM
Memory Capacity:	16MB
OS:	Obm
Screen Size:	2.8"

Product Description

Wireless Laser Barcode Handheld Data Collection Device(OBM-9800)

Features:
1. Cordless Scanner and Wireless Inventory handheld functions integrated;
2. Item name displays right after the barcode is scanned;
3. Program refreshing supported;
4. TXT or EXCEL file created as soon as data is uploaded;
Use as a USB flash disk (optional)

About Us:
Easytech is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.

Main Unit
Model		OBM-9800
Color		Fosted White
CPU Speed		48MHz
Memory
RAM		4KB
ROM		16MB(Optional 32MB)
SCREEN
Size		2.8
Color		16bit true color(65536 colors)
Resolution		240*320
type		Touch screen
Physical
Battery		Rechargeable Lithium-ion ( 3.7V , 2800mAh )
Working time		16 hours
Standby		15 days
Measurement		150mm × 63mm × 31mm
Material		ABS + silicone
Charging indicator		LCD
Working current		150mA
Standby current		6mA
EMC		CE & FCC DOC compliance
Scanning
Light Source		Light Source
Decode Rate		48±2 scans / second
Resolution		4mil
Scan width		20mm @window , 220mm @200mm
Depth of Field		0 ~ 250mm ( 0.33mm , PCS 90% )
indicator		buzzer , LCD
Barcode supported		EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI
Transmission
Cable		USB 2.0
wireless		433MHz (max. range 300m)
Environment
Working Temperature		0 ~ 45
Storing Temperature		-20 ~ 60
Humidity		5% ~ 95%
Lumination		Max.5,000 Lux ( Fluorescence )
