Product Specifications
| Prod Model: |
OBM-757 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen: |
2.8inch |
| Color Size And Weight: |
23.5X17.5X7.5cm , 0.56kg\Box |
| Carton Size And Qty: |
60X40X50cm, 32PCS/Carton |
| Type: |
Handheld Computer |
| CPU Type: |
ARM |
| Classification: |
Bar-code Scanner |
| Memory Capacity: |
16MB |
| OS: |
Obm |
| Screen Size: |
2.8" |
Product Description

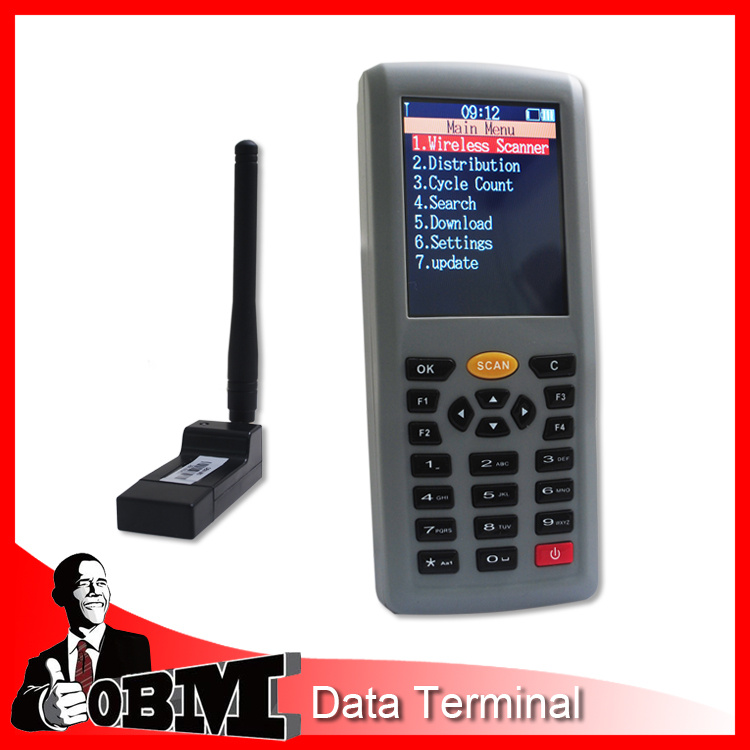

Wireless Laser Barcode Scanner Data Collector Handheld(OBM-757)
Features:
1. MULTI-FUNCTIONAL
Covers the full circulation of commodity: Incoming, outgoing, stockcount, replacement and defect report
2. RECONIZABLE
Supports the download of the item file: Barcode scanned matches to the corresponding item automatically and displays on the screen of the unit right away
3. Friendly Interface
It is easy to understand through 2.8" color display and graphical menu vividly
4. EFFICIENT
Report is automatically generated right after inventory is processed, 90% savings on time, manpower and administrative stuff
5. SAFE and Reliable
Supports real-time, storage and batch transmission of data without loss
6. WIRELESS (optional)
Adopts wireless and storage technology to support communications without cables
7. ENDURING
2800mA POLYMER-Lithium-ion battery ensures long working hours of the unit
Light source
|
CPU |
|
|
Frequency |
ISM band , 433MHz |
|
modulation |
GFSK |
|
Rate of Transmission |
200Kbps |
|
Output Power |
20dBm (max) |
|
Transmission Coverage |
300M visibility range ( Max. ) |
|
Antenna |
Integrated PCB |
|
Memory |
16M |
|
keypad |
23 |
|
Indicator |
beeper , LCD screen |
|
650nm laser |
|
Bit error rate (BER) |
1/1 million |
|
Safety performance |
Meet the Grade II National Criteria for Laser Safety |
|
Scanning method |
automatic or manual |
|
Supported interfaces |
RS232, PC2 keyboard, USB |
|
Barcode types |
EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Chinese postcode etc. |
|
Use type |
Hand-held or bracket-held installation |
|
Resolution (pcs0.9) |
0.10mm(4mil) |
|
Depth of field |
10-420mm (pos09 density 0.25) |
|
decode rate |
100 times/second |
|
precision |
0.10-0.825mm |
|
scan width |
60mm at 30mm; 98mm at 100mm |
Reading angle
of elevation |
60 degree |
|
Power voltage |
5V |
|
Working current |
57mA |
|
Static current |
36mA |
|
Light intensity |
Daylight, 4000Lux max |
|
Operating temperature |
-20° C-45° C |
|
Storage temperature |
-20° C-45° C |
|
Operating humidity |
5%-85% |
|
Storage humidity |
5%-85% |
|
color size and weight |
23.5x17.5x7.5cm , 0.56KG\box |
|
carton size and Qty |
60x40x50cm, 32pcs/carton |
