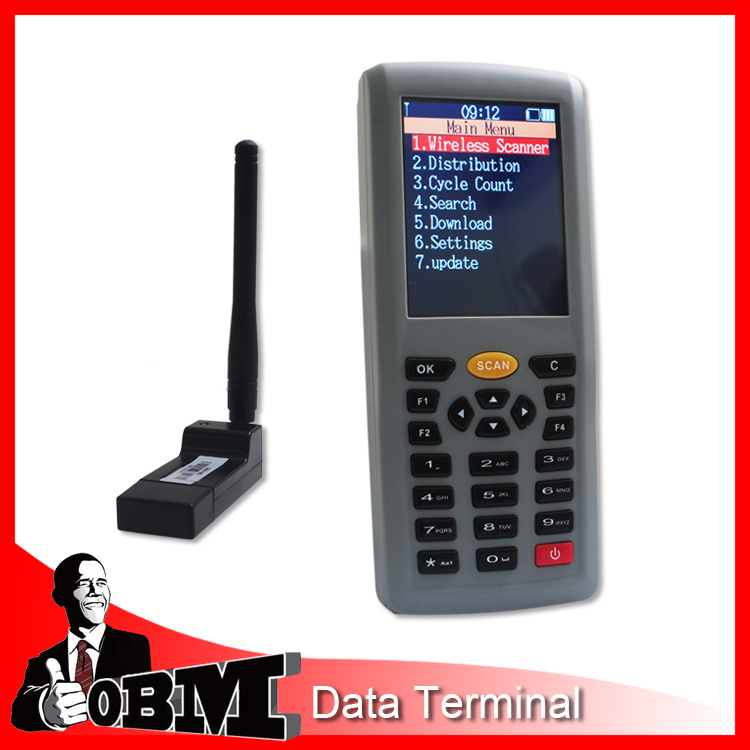

Wireless Laser Barcode Scanner Handheld Data Collector (OBM-9800)

Name: Wireless Laser Barcode Scanner Handheld Data Collector (OBM-9800)
Brand: china-manufacturer-directory.com
SKU: 741902895
Availability: InStock
Rating: 5 (117 reviews)

Supplier:	Easytech Systems Inc.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OBM-9800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	ISM Band,433MHz
Modulation:	Gfsk
Rate Of Transmission:	50kbps
Output Power:	20dBm (Max)
Transmission Coverage:	300m Visibility Range(Max.)
Antenna:	2.5db
Light Source:	650nm Laser Diode
Scan Pattern:	Single Line
Scan Rate:	45±2 /Sec
Scan Precision:	4mil
Type:	Handheld Computer
CPU Type:	ARM
Classification:	Bar-code Scanner
Internet Connection:	Built in Modem
Applications:	Personal Communication Assistant
Memory Capacity:	16MB
OS:	Obm
Screen Size:	2.8"

Product Description

Wireless Laser Barcode Scanner Handheld Data Collector(OBM-9800)
FEATURES:
1. MULTI-FUNCTIONAL
Covers the full circulation of commodity: Receiving, shipping, cycle count, replenishment and defect report
2. RECONIZABLE
Supports download of item file: Barcode scanned matches to the item automatically and displays on screen right away
3. SIMPLE
2.8" color display and graphical menu makes it easy to understand
4. EFFICIENT
Report is automatically generated right after inventory count, 90% savings on time, manpower and administrative overhead
5. SAFE
Supports real-time, storage and batch transmission
6. WIRELESS
Adopts mainstream wireless and storage technology, free from cables
7. ENDURING
2800mA POLYMER-Lithium-ion battery ensures long working hours

About Us:
Easytech is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.

TECHNICAL PARAMETERS
Radio Specifications
433MHz
Frequency	ISM band , 433MHz
modulation	GFSK
Rate of Transmission	200Kbps
Output Power	20dBm (max)
Transmission Coverage	300M visibility range ( Max. )
Antenna	Integrated PCB
Performance Characteristics
Light Source	650nm Laser
Scan Pattern	Single line
Scan Rate	48±2 /sec
Scan Precision	4mil
Scan Width	20mm@window , 220mm@200mm
Depth of Field	0 ~ 250mm ( 0.33mm , PCS 90% )
Roll(Till)	30°
Pitch	65°
Skew(Yaw)	55°
Resolution	30% minimum reflectance
Operating Mode	Continuous / itemized scanning
Error Rate	Error Rate
Indicator	beeper , LCD screen
Decode Capability	EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI .
Interfaces supported	Mini USB receiver , optional RS232 or PS2
Electrical Parameters
Receiver Voltage	DC5V
Receiver Current	50mA
Battery	Rechargeable lithium ion battery (3.7V ,1900mAh)
Charging Indicator	LCDdisplay
Stockcount Working current	120mA
Stockcount Standby Current	70mA
Laser Safety	national class2 regulatory
EMC	CE & FCC DOC compliance
Physical Characteristics
Memory	16M
keypad	23
Stockcount Dimensions	160mm×68mm×29mm
Material	ABS + silicon
