Product Specifications
| Prod Model: |
F3223 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| VPN: |
Pptp, L2tp, Ipsec/Gre |
| CPU: |
Arm9 |
| Module: |
Industrial Cellular Module |
| Band: |
450 MHz or 800MHz |
| Function: |
DHCP, DDNS, Nat, Dmz |
| Protocol: |
TCP/IP UDP, HTTP, FTP |
| Power Range: |
5-35 Vdc |
| Use: |
POS, ATM, Kiosk, Ipcam |
| Transfer Rate: |
100Mbps |
| Ports: |
≤4 |
| Firewall: |
Firewall |
| Application: |
Enterprise |
| Type: |
Wireless |
Product Description

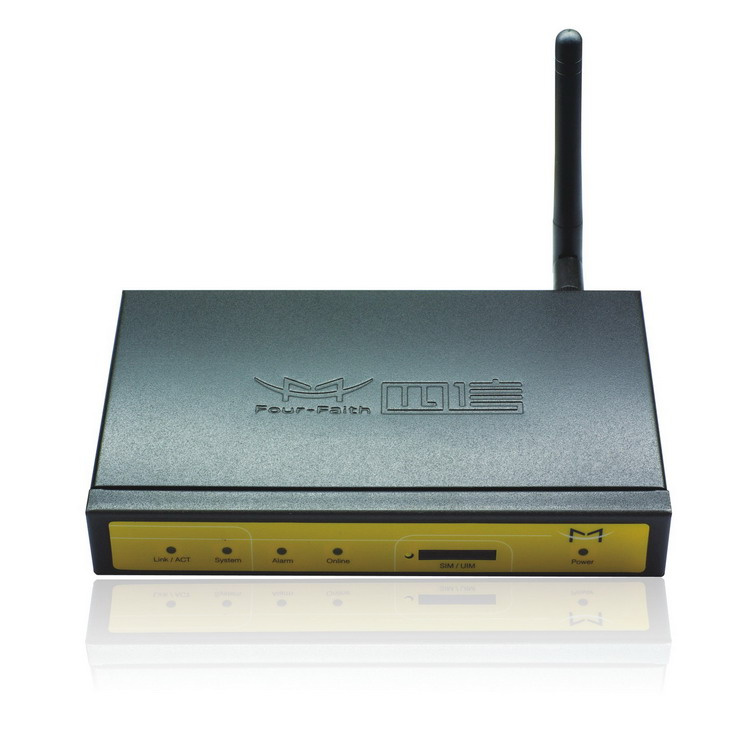

F3223 CDMA ROUTER SPECIFICATION
Eye catching points:
1. CDMA network for heavy network trafic
2. ARM9 CPU for data processing
3. Network protocol for safety and stability
4. Good performance for ATM, POS, KIOSK, IP camera surveillance ect
F3223 CDMA router adopts high-powered ARM9 CPU and embedded real time operating system. It integrates all the commonly used protocols from logical link layer to upper application layer, such as TCP/IP/UDP and so on. And it supports static and dynamic route, PPP Client and PPP server, VPN (including PPTP and L2TP+ IPSEC), DHCP server and client, DDNS (dynamic DNS), firewall, NAT and DMZ host. It provides a secure, high speed, reliable wireless Internet connection for customers. This product has been widely used on finance, water supply, environment protection, electric power system, post and weather fields.
A. Wireless Specification
1. Compliant with S-95 A/B and CDMA2000 1xRTT
2. Support 13K QCELP audio codec
B. Hardware System
1. Industrial ARM9 CPU, 200M
2. FLASH: 4MB (Extendable to 16MB)
3. SDRAM: 16MB (Extendable to 64MB)
4. E2PROM: 64KB
5. Interface
10/100M Ethernet Port
RS232 serial port (Support RS422/RS485 if needed), rates: 110~230400bits/s
Indicator lights: Power, Online, Alarm, System, Link/ACT"
Antenna interface: Standard SMA female interface, 50 ohm
SIM/UIM interface: Standard user card interface
Power interface: Standard 3-PIN power jack
Reset button: Restore the router to its original factory default settings
6. Power supply
Standard power supply: DC 12V/1.5A
Power range: DC 5~35V
7. Wireless module
High-powered industrial CDMA module
8. Size
Outline dimension: 157x97x25 mm
9. Weight: 870 g
10. Others
Operation temperature: -25~+65
Storage temperature: -40~+85
Humidity: 95% (unfreezing)
C. Software function
1. Support VPN tunnel, including PPTP and L2TP+IPSEC
2. Support auto online keeping mechanism, including online detect, auto redial when offline to make router always online
3. Support firewall and packet filter
4. Support multi protocols, such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, etc.
5. Support dynamic and static route
6. Support DHCP server
7. Support NAT, such as SNAT, DNAT etc.
8. Support dynamic DNS (DDNS)
9. Support DMZ host
10. Support route transmission, data communication by serial port. Support data service center management
11. Support VPDN network
12. Support WEB configure (local and remote)
13. Support telnet management and console
14. Support switch interface, Make multi terminals sharing router's wan connection
15. Support multi WAN dial method, including auto allocated IP, specifying local IP, specifying local and remote IP
16. Can be used as PPP server. Support multi authentication method, such as PAP, CHAP, CHAP-MS, CHAP-MSV2
17. Support multi debug method, such as web, console debug and SYSLOG etc.
18. Support console upgrade firmware
19. Support TFTP upgrade firmware
20. Support multi OS, such as WINDOWS, LINUX, SCO UNIX etc.
