Supplier: | Shenzhen Junfirer Technology Development Co., Ltd. |
---|---|
Price: | Negotiable/Piece |
Min Order: | 1/Set |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |

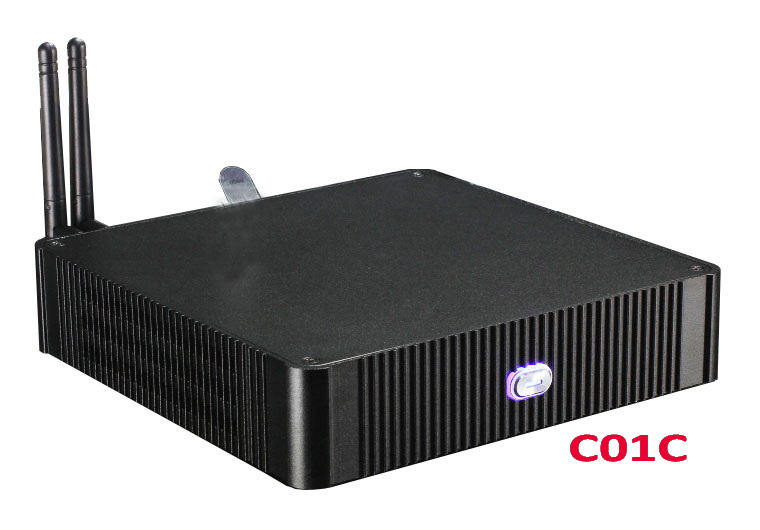

Prod Model: | JFTC2500iW |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 200X200X44mm |
Memory: | 2g DDR3 ,Supports up to 16GB Memory |
Chipset: | Intel Atom Processor D2500 (1m Cache, 1.86 GHz) |
Memory Capacity: | 2GB |
CPU: | Intel |
HDD Capacity: | 1TB |
GPU: | Intel |
Power Consumption | 20W |
Onboard CPU | Intel® Atom™ Processor D2500 (1M Cache, 1.86 GHz) |
Memory |
• 2G DDR3 RAM SO-DIMMs • Single-channel DDR 3 with two connectors for 1066 / 800 MHz memory support (4 GB max) |
Chipset | NVIDIA GeForce GT218 ,Standard Memory:512M |
Hard Disk | Standard 8 GB SSD (support up to 32GB and 2.5 inch SATA HDD ) |
Onboard VGA | Intel® Graphics Media Accelerator 3600 |
Onboard LAN | Intel® RTL8111E 10/100/1000 Mb/s Ethernet Controller |
Audio Solution | Four-channel Intel® High Definition Audio |
I/O Controller |
• Two SATA ports • One Serial headers • Two Mini PCIe port • Two USB 2.0 external ports • One Intel® High Definition Audio • Two DDR3 SO-DIMM solts |
Front-Panel Connectors |
• Reset, power on/off • HD LED, Power LEDs • USB 2.0 headers(Only for C01A) • Audio header(Only for C01A) |
Back-Panel Connectors |
• 1×DV12V DC input • 1×HDMI ports • 1×VGA ports • 1×SPDIF ports • 2×USB 2.0 ports • 1×RJ45 ports • 2×Audio header |
Operating System | Support Windows 7/Windows Embedded Standard 7 etc. |
