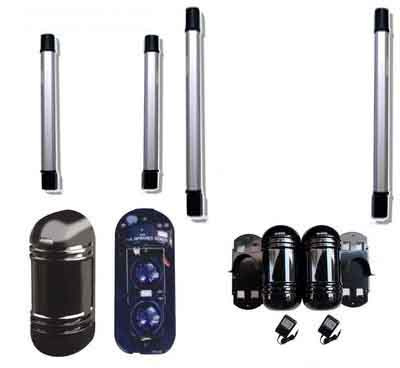

Wireless or Wired Beams Sensor and IR Beam Sensor (MS-B01)

Product Specifications

Prod Model:	MS-B01|B02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1) Name: MS-B02 Wireless Beems sensors

Wireless type or wire type available.
1. Anti-light 50000LUX, with internal auto-adjusted percolation system, avoid affection of strong light or van light.
2. Unique optic design, photoelectricity beams to penetrate multilayer glass, especial anti-environment
3. Sealed raining proof(fog), dustproof(bug) and so on. Integrated framework design, that work normally in bad environment.
4. Quadratic focalize optical to realize big caliber column.
5. Module design convenient for detector accession and cascade
6. High anti RFI/EMI
7. Receiving signal intensity multilevel LED (high precision)
8. Flexible and adaptabile
9. Detecting range: Optional

Sepecification:

1. Beems and distance can be adjusted as ordered.
2. Alertness distance:
(outdoor) 20m 30m 40m 60m 80m 100m 150m
Max distance 200~250 m 3. Two beams or more beams optional
4. Alarm motion: Break two beams at one time.
5. Light source infrared digital Pulse
6. Response speed 50-700msec (adjustable)
7. Alarm Output: Relay port output NO or NC, capacity ACDC30V0.5AMax
8. Power supply: DC13.824VAC1118V
9. Consuming current: 40mAmax 40mAmax 55mAmax 55mAmax 65mAmax 65mAmax
10. Operating temperature range: -2555
11. Operating humility range: 5%95%RH (relative humility)
12. Exterior size refer to picture
13. Tamper output: Output NC, capacity ACDC24V 0.5AMax

2) Name: MS-B01 Beems sensor (optional to select beams) introduction: IT is the best equipment to protect your house safe. It can be installed in the yard, building surrounding or two sides of the yard door, especially inner balcony to substitute metal structure. It gives you beautiful feeling. It will alarm at once and dial the pre-set alarm numbers.

1, The emitting bundle is shutoff by the object diameter of 20cm
2, The working elements as bellows: Several unvisible defense bundles from the
Remitters forms protection network. The buzzer of the receiver will hoot once
Any bundle is shut off for over 40ms and then the alarm host will send out the radio alarm. The remitting will think it is normal and will not send out the alarm signal to alarm host when a small animal such as bird, dove jump the protection area because they only shut off one infrared remitting bundle.

Features:
1, Dormant defense and protection baluster makes the burglar found in no any sense.
2, Complete defense ability: It can detect any activation of the burglar
3, Good interfereproof characteristics: It wound not occur wrong report for
The insect and other mall animal.
4, Strict anti-destroy ability: It will output the alarm signal once the power or cable are cut.

Name: MS-B03 Wireless Solar beams
Product introduction: Smart double / triple-beam sensor, the design uses a photoelectric beam to detect intrusion, which can meet the highest standards of quality and reliability. Double / triple beam after synchronized to work together, in the case of bad weather conditions, but also protect the alert range and stability. Called "smart" because it has a different frequency, can be stacked beam is set to "beam wall". This device has a rotating optical system is easy to install specially designed lens also helps alignment. Without power and signal lines.

High reliability

Synchronous dual / triple beam can effectively reduce the birds or leaves caused by the fault alarm report. Outdoor use, the most long-distance three times the distance for the operation, the operating distance is reliable in the harsh climatic conditions and alert distance.

External lighting protection function

Effective solution to the interference of sunlight, car headlights, fluorescent lights andmercury vapor lamps.
Simple adjustment of the beam
Dedicated viewfinder can be used for fast targeting, and to ensure good alignment. With monitor jack can be used to check the sensitivity.
Rotating optical system
