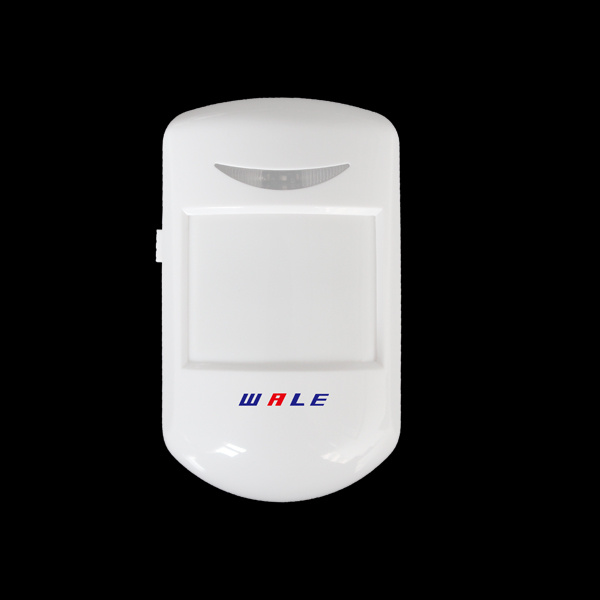

Wireless PIR Infrared Detector with Long Wireless Emitting Distance

Product Specifications

Prod Model:	WL-803W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty Time:	3 Years Guarantee
Dimension:	106*35mm
Sensitivity:	Adjustable
Detecting Range:	8m
Working Voltage:	3VDC
Type:	Probe
Usage:	Anti-theft
Installation Mode:	Wall Mounted
Certification:	CCC
Application:	Home

Product Description

Technical Parameter:


1, Wireless emitting distance: Open area: 300m
2, Emitting frequency: 315MHz / 433MHz;
3, Programme code: 1527 / 2264
4, Detecting range: 8m, detecting angle: 15°
5, working voltage: 3VDC, 2 AA alkaline batteries; Can connect the DC power supply.
6, digital circuits, adopt to microprocessors;
7, two-way digital temperature compensation, super anti-false alarm;
8, the SMT process manufacturing, resistance to the RFI, EMI interference;
9, the flame-retardant ABS housing, with the detector bracket.


Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. Two years warranty is provided for all models.

Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.

Probe type	PIR detector
Detection range	9-18m
Working voltage	9-16VDC
Working current	35mA
Alarm contacts	NC,12VDC,50mA max
Tamper contacts	NC,12VDC,100mA max
Alarm time	2.2s
Preparation time	2min
RFI characteristics	30V/m 10MHz ~ 1GHz
Working temperature	-10°C~+50°C;
Store temperature	-20°C~+60°C;
Dimension	128*64*40mm
