Product Description

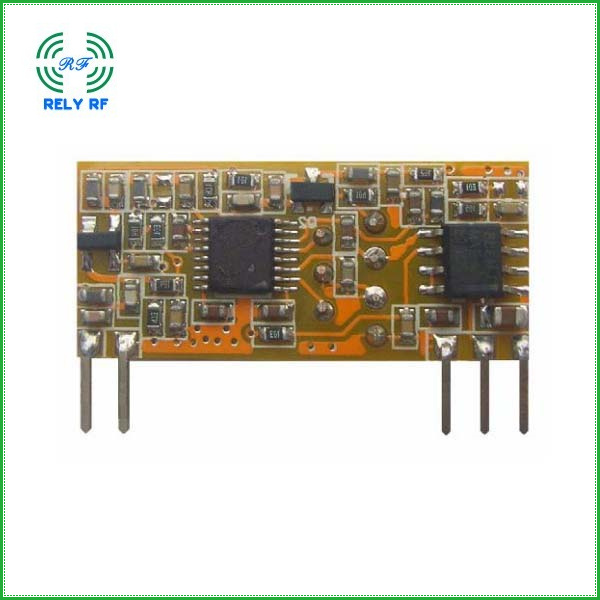

Wireless Receiver Module, ASK Receiver Module
The WR-RY-08 is a high quality superheterodyne receiver module, transceiver, RF modulewith VHF/UHF. The module adopting LSI circuit with high frequency and low noise which has strong antistatic protection, high reliability and competitive price. Its widely used in remote garage door, autogates as retract type, brakes, GSM/GPS system, factory automatic, communication and security system etc.
Characteristic:
Modulation: ASK
Voltage: 2.7V~5V
Frequency: 315/433MHz
Bit-rate: 2kbps-4kbps
Current: 10mA
Sensitivity: -115dBm
Working temperature: -20~+70
Dimension: 31.5mm(L)*12mm(W)*5mm(H)
1. It has reasonable receive band width, excellent ability of suppress coordinate frequency, strong anti-jamming, it can adapt to kinds of condition.
2 It has excellent ability of suppress assemble or scatter radiation, easy pass kinds of FCC or CE certification.
3 It has ability to restrain the radiation, can worked with several module (one transmitting module and several receiving module) at the same time, and have no interference to each other, and don't influence the receiving distance.
4. Adopting the SAW, the capability is immobile, and the temperature range is wide.
Frequency range is 250-450 MHz, easy to adjust.
5. Use microprocessor directly link, bit-rate can be up to 20kbps.
6. Enhance the anti-jamming ability for the mobile telephone, improve decoding waveform.
7. Frequency: 433 / 315MHz
Application:
Security System
Wireless Remote Control Car
Wireless Remote Control Robot
Automatic Power Switch Control
Garage door controllerNotes:
Antenna: Length = 22.6cm for 315MHz; Length = 17 cm for 433.92MHz.
|
315MHZ |
WR-RY-08-315MHZ |
|
433.92MHZ |
WR-RY-08-433.92MHZ |
Electrical Characteristics:
|
Characteristics |
Symbol |
Condition |
Value |
Unit |
|
Min |
Typ |
Max |
|
Frequency |
Fc |
|
300 |
315/433.92 |
450 |
MHZ |
|
Receiver Sensitivity |
|
|
-118 |
|
-112 |
dbm |
|
Data Rate |
|
|
0.058 |
|
10 |
KBaud |
|
VDD |
DC |
|
3 |
|
5.5 |
V |
|
Current |
|
|
5.7 |
|
12 |
mA |
|
Working Temperature |
|
|
-20 |
|
+70 |
|
Pin Assignment:
|
Pin |
Name |
Function |
|
1 |
ANT |
Antenna |
|
2 |
GND |
Ground |
|
3 |
GND |
Ground |
|
4 |
DATA |
Data connected to MCU |
|
5 |
VCC |
|
