I: Lights, doors, windows and electric appliances control
II: Agricultual long-distance control
III: Industrial long-range control

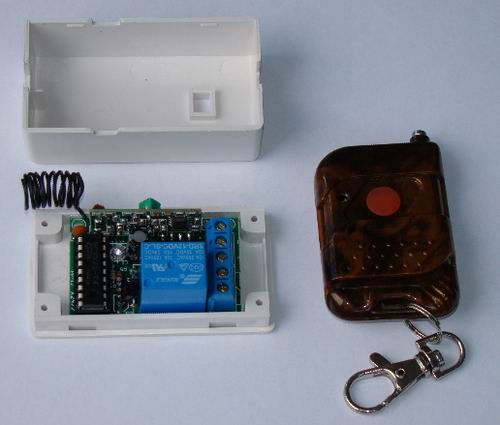

This is 1CH wireless remote control switch.
We are the professional wireless remote control system manufacturer.
We can design/produce 1CH, 2CH, 3CH, 4CH, 5CH, 6CH, 7CH, 8CH, 9CH, 10CH, 11CH and 12CH wireless remote control switch, AC90v~AC270v or DC12v voltage working circumstance, 100m~10km meters.
Our wireless remote control system advantage:
I: Wide input voltage:
AC90v~AC270v, 50Hz/60Hz or DC12v
II: Big load power:
1000~5000w
III: Wide operating temperature range:
-60~+500oC
IV: Optional Frequency:
303MHz, 315MHz or 433MHz
V: Coding way:
Fix code or intelligent learning code
VI: Application field:
1: Home wireless light control;
2: Home electric appliance control;
3: Agricultual long-distance control;
4: Industrial long-range control;
5: Door wireless open/close, car multi-route alarm;
6: Motor rotation control.
VII: Waterproof:
Under water 5~10meters
VIII: Long distance wireless remote:
100m, 500m, 1000m, 2000m, 10km
We can design/produce 3 different functional wireless remote control system individually or design all the 3 functions together. One is self lock model, another is non lock model, the third is commutative lock model.
Explanation:
1): Self lock model:
[For example 4CH wireless switch]
Press remoter button A first time, the receiver relay is ON, press remoter button A second time, the receiver relay is OFF, the same as B/C/D. Extend function: When Jumper is OFF possition, when press button A on the transmitter, receiver channel A goes on 2 seconds then goes off automaticaly...Same of channel B/C/D.
Use field: Electric equipment ON/OFF wireless control; Garage door open/close, light ON/OFF
2): Non lock model:
[For example 4CH wireless switch]
Press remoter button A always, the receiver relay is ON, release button A, the receiver relay is OFF, the same as B/C/D.
Use field: Electric motor rotation positive and negative wireless control
3): Commutative lock model:
[For example 4CH wireless switch]
Press remote button A, the receiver relay A is ON, the relay B/C/D is OFF;
Press remote button B, the receiver relay B is ON, the relay A/C/D is OFF;
Press remote button C, the receiver relay C is ON, the relay A/B/D is OFF;
Press remote button D, the receiver relay D is ON, the relay A/B/C is OFF;
Use field: Electric fan wind speed wireless control
A Wireless remote control switch is an electric switch which is controlled by a radio or other signal and does not require an operator to touch the switch is known as a wireless remote control switch. The remote control device, if electrically operated, uses batteries with a low, safe, voltage. Such a switch avoids the risk of electric shock if a user touches a switch with wet hands, and allows switching apparatus from a location without a wired switch.
We are a professional radio wave wireless remote control system manufacturer. The remote distance can design from 50m, 200m, 500, 1000m, 2000m, 5000m to 10000m. Our special technic can assure the remoter and receiver work normally in a worse conditions and lots disturb area. Adopting high speed rolling digital coding and decoding method, the wireless remote switch can prevent sharp electronic pulse disturb and enhance its receiving sensitive. Working frequency 47MHz, 230MHz, 303MHz, 315MHz and 433MHz, input voltage DC12v, AC90v ~ AC270v. Our high power and long distance wireless remote switches are widely used in agriculture water pumping control area, all kinds industry wireless control area, home appliance wireless control area and military fields.
