Product Specifications
| Prod Model: |
ES-8103S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Strobe Color: |
Red, Blue, Orange, White |
| Volume: |
105db |
| Dimension: |
270*193*100mm |
| Housing: |
ABS |
| Battery: |
Lithium Battery 3.7V / 800mAh |
| Tamper Switch: |
Protection |
| Receiving Distance: |
150m in Open Air |
| Type: |
Anti-Theft Alarm |
| Working Mode: |
Passive |
| Certification: |
CCC |
| Application: |
Outdoor |
| Sensor Type: |
Electric Alarm |
| Working Principle: |
Electro-Acoustic Style |
| Transmission Mode: |
Wireless |
| Alarm Volume (',within 1m): |
≥100dB |
| Usage: |
Fire |
| Signal Transmission: |
Wired and Wireless Alarm |
| Receive Frequency: |
433MHz / 868MHz / 315MHz Optional |
Product Description

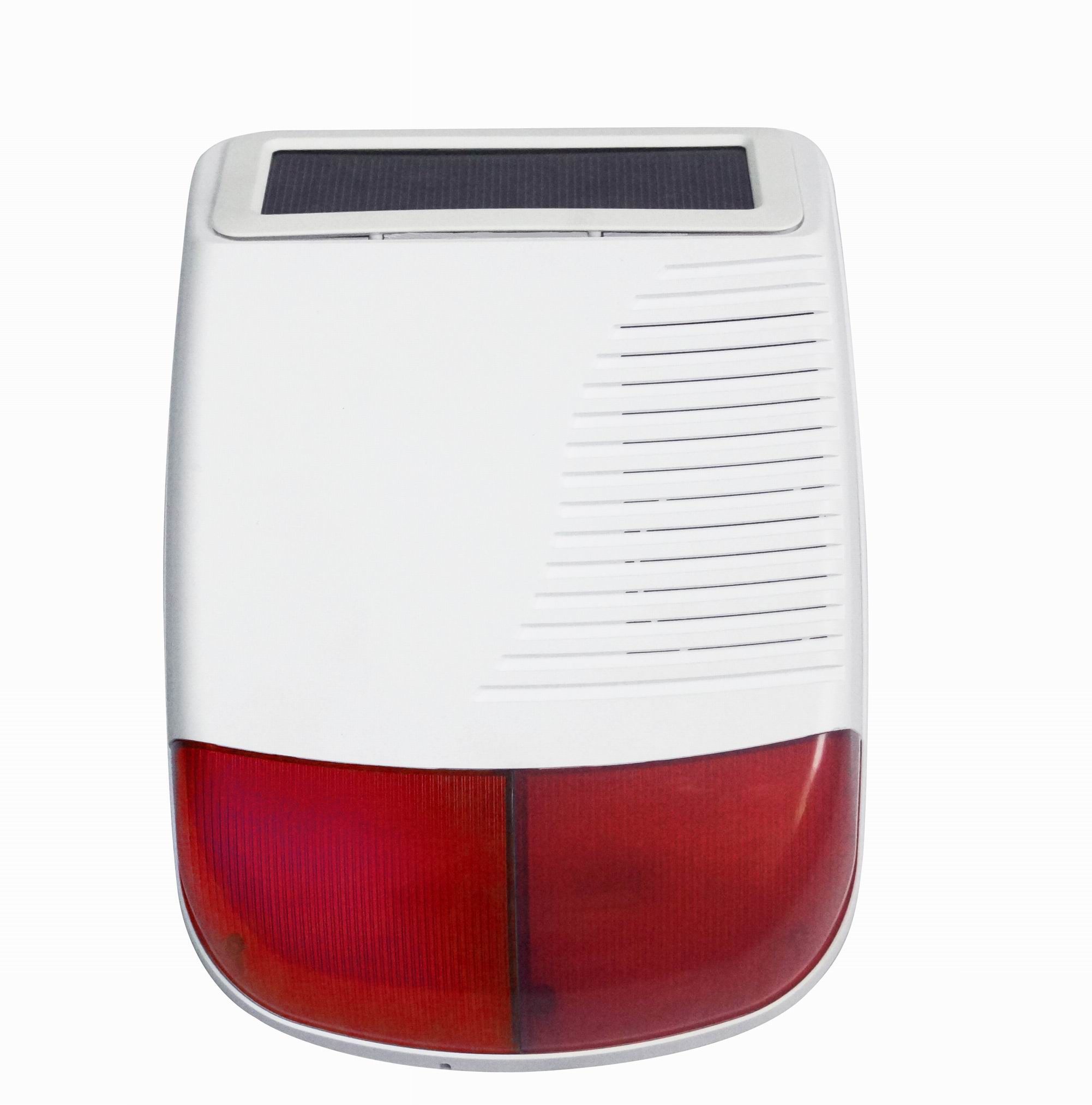

Wireless Solar Siren with 105dB alarm Sound (ES-8103S)
I. Feature
1. Waterproof case
2. Intelligent Control
3. Built-in backup lithium batteries, solar charger
4. Tamper alarm;
II. Technical:
1, Power consumption: static: ≤16 m
Dynamic: ≤220 mA
2, Back-up battery: 3.7v 4400ma / h
3, The solar charging current: 180mA
4. Electricity charge: 110 ~ 240VAC, USB 5V, charge time: ≤12 hours
5, Continuous cloudy standby time: ≤10 days
6, the longest sound and light alarm time: 3 minutes.
7, receiving distance: ≥150 meters (open area)
8, alarm volume: ≥105db.
III. Feature:
1, Intelligent control, eliminate false negative, to prevent false positives, stable and reliable;
2, Flood monitoring, on-site high-decibel sound and light alarm, the longest one minute;
3, AC/DC, with backup rechargeable lithium battery, power can be used normally;
4, scalable output control signal, automatically turn off after the alarm valve function;
IV. Technical:
1 Power supply: 100 ~ 240VAC 2, quiescent current: ≤ 25 mA
3, Alarm current: ≤ 250 mA 4, Alarm volume: ≥ 105db
5, trigger delay: ≤ 2 seconds 6, the alarm time: 1 minute
7, back-up battery: Lithium battery 3.7V / 800mAh 8, Charging time: ≥ 8 hours
9, Standby time: ≤ 6 hours 10 probe connection: 2 m
11, allows the maximum connection distance: ≤ 30 M
12 Dimensions: 105 * 65 * 35 mm
V. Install:
1, the flooding fixed probe mounted in a suitable position detection;
2, place a good alarm, then turned on the power, the buzzer "beep" sound, warning light flashes four times off, enters the standby state;
3, the alarm behind the switch to open the battery status;
4, lasted about 2 seconds when the probe detects a leak or overflow, the alarm sound and light alarm instantly spot, one minute in duration;
Model | Wireless Solar Siren with 105dB alarm Sound (ES-8103S) |
| Rated Voltage 100 ~ 240VAC | 100 ~ 240VAC |
| Color | Red, Blue, Orange, White |
| Quiescent Current | <25 mA |
| Alarm Time | One minute |
| SPL (Db/m) | 105db |
| Product size | 105 * 65 * 35 mm |
