Huizhou Dayawan Fox Etech Limited >> with Intel J1800 Quad Core 22nm Processor 2.41GHz Motherboard for Network Security

with Intel J1800 Quad Core 22nm Processor 2.41GHz Motherboard for Network Security

Name: with Intel J1800 Quad Core 22nm Processor 2.41GHz Motherboard for Network Security
Brand: china-manufacturer-directory.com
SKU: 767343125
Availability: InStock
Rating: 4.7 (65 reviews)

Supplier:	Huizhou Dayawan Fox Etech Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	ITX-M8F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gpio:	4-Way Input/Output Gpio
Integrated Graphics:	Integrated Graphics
Main Chipset:	Intel
Maximum Memory Capacity:	8G
Structure:	Mini-ITX
Memory:	DDR3
SATA Interface:	SATA2.0
Printed Circuit Board:	Six Layer
Main Board Structure:	Integrated
Audio Effects:	Not HiFi

Product Description

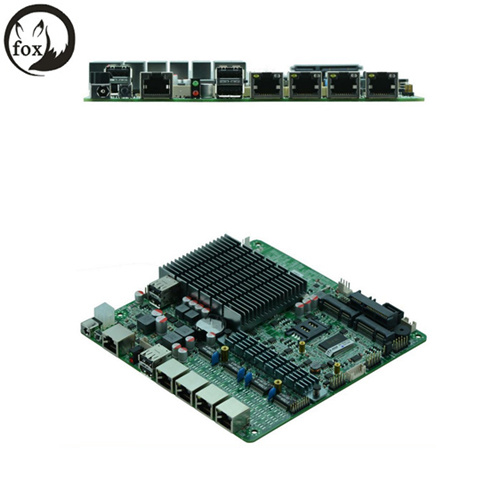

With Intel J1800 Quad core 22nm processor 2.41GHz motherboard for network security

Packaging & Delivery

Packaging Details:	neutral carton box
Delivery Detail:	1-3 days

Product Description

Item No.	ITX-M8F VER:1.1
CPU	Intel® J1800 Quad core 22nm processor 2.41GHz,compatible with Intel®Bay Trail -I/M/D series CPU
Chipset	Intel® Bay trail SOC , CPU integrates chipset
Memory	Support single channel DDR3(L)1333 memory,max up to 8GB
Display	Integrated with Intel® HD Graphics core,support VGA display output
Expansions	1*Mini-PCIE slot(support WIFI /3G module,default is with USB signal)
Expansions	Mini-PCIE signal and LAN4 use the same channel,alternative to one
Networking	Integrated 4*Intel 82583V Gigabit LAN controllers, Supports Wake-on-LAN
Storage Function	1SATA 2.5' HDD Space,install HDD directly,transfer rate up to 3Gbs 1SATA hard disk port(alternative to 2.5' hard disk ) 1*MSATA slot,supports Intel SSD,transfer rate up to 3Gbs


Rear I/O	1* 12V~19V DC JACK power input
	1* Power Switch
	1* CISCO standard COM port
	1* LED1(POWER LED/HDD LED)
	2* USB 2.0 Port
	4* RJ-45 LAN Port
Internal I/O Interface	1* JVGA Port, 1*12Pin
	1* LAN LED connector, 2*8Pin
	1* COM
	4*USB2.0
	1FP1( Front panel buttons and LED indicator 25pin)
	1* 4pin ATX power connector (for 12V~19V input/output)
	1* PS/2 KB/MS interface, 1*6Pin
	1* HDD Power Port
	1* SIM card socket
Cooling System	14pin CPU Fan,1 3pin System Fan
GPIO	4-Way Input/Output GPIO
BIOS	AMI 64MB Flash ROM
Watchdog Function	support hardware reset function (L256, 0~255 seconds)
Power Supply	DC12V-19V Single power
Operating Temp.	-10°C~60°C
Storage Temp.	-40°C~70°C
Humidity	5%-90% ( relative humidity; non-condensing)
Size	170mm x 170mm
