Huizhou Dayawan Fox Etech Limited >> with Intel N455 1.66g CPU Atom Fanless Mainboard (ITX-M58_A45)

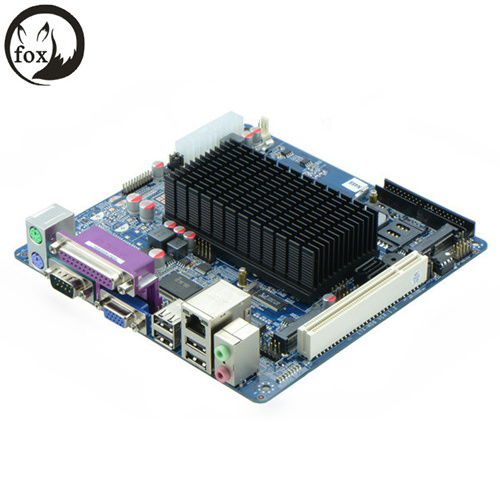

with Intel N455 1.66g CPU Atom Fanless Mainboard (ITX-M58_A45)

with Intel N455 1.66g CPU Atom Fanless Mainboard (ITX-M58_A45)
Price: US $ 60/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram

Product Specifications

Prod Model: ITX-M58_A45
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fanless: Fanless
Integrated Graphics: Integrated Graphics
Main Chipset: Intel
Structure: Mini-ITX
Memory: DDR3
SATA Interface: SATA2.0
Printed Circuit Board: Six Layer
Main Board Structure: Integrated
Maximum Memory Capacity: 2g
CPU Socket: Fcbga559

Product Description

With intel N455 1.66G CPU Atom Fanless mainboard (ITX-M58_A45)

Specifications

1. N455 Atom Fanless mainboard
2. Intel GMA3150 Graphics
3. 1* PCI, VGA / LVDS
4. DDR3 Memory
5. 1 LAN Port

Product Description

X86 Mini ITX Motherboard With CPU Atom N455
Atom motherboard with intel N455 1.66G CPU used for point of sale 2minipcie support DDR3 VGA+18bitlvds 2COM 2SATA+IDE fanless

With intel N455 1.66G CPU Atom Fanless mainboard
Model NO.ITX-M58_A45E  VER : 1.2
CPUIntel ®  Atom N455 Processor single core 1.66G
ChipsetIntel ®  ICH8M Chipset
Memory1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB
GraphicsIntel ®  GMA3150 Graphics
support VGA/LVDS synchronous/asynchronous display
 LVDS supports single 18bit
Expansion Slots1* Mini-PCIE (Support WIFI/3G)
 1* PCI
LAN1* RTL8105E 10/100Mbps Ethernet
Support Wake-on-LAN and PXE function
Storage2* SATAII 3Gbps
 1* MSATA (support SSD 3Gbps/USB WIFI)
 1* IDE
AudioIntegrated Realtek HD ALC662 for 6-Channel output
support MIC/Line-out/Line-in
Rear I/O1* PS/2
 1* LPT
 1* COM, the 9th pin supports +5V/+12V charged function
 1* VGA
 4* USB 2.0
 1* RJ_45 LAN
 1* AUDIO I/O (MIC and Line-out)
Internal I/O1* JVGA1 ( 2*5pin )
 1* LVDS 2*10pin , support single 18bit LVDS interface
 1* COM, the 9th pin supports +5V/+12V charged function
 1* AUDIO pin (Front Audio interface 2*5pin)
 4* USB 2.0
 1* FP1 (2*5pin Front panel buttons and LED connected)
 1* PS/2
 1* LVDS 1*6pin
 1* SIM
Fan interface1* CPUFAN and SYSFAN (3pin)
BIOSAMI 8MB DPI Flash ROM
WatchdogSupport hardware reset function (L256, 0~255 seconds)
Power Input20 PIN  ATX Power Supply
Operating Temp.-10 °C~ 60 °C
Storage Temp.-20 °C~ 70 °C
Humidity0%-95%(relative humidity; non-condensing)
Dimension170mm x 170mm
Huizhou Dayawan Fox Etech Limited build in 2006, specialize in producing and selling Thin Client, Mini PC, All-In-One Computer, Embedded Computer, Industrial Motherboard and etc.

Our company's operating philosophy is "more refined, more powerful. "We always adhere to this quality policy, "the quality get market opportunities, services to win customer satisfaction, innovation promote business progress, a truth-seeking creat companies brilliant. " Pursue the eternal customer principles "credibility first, quality first and service-oriented. "

We insist on Market-oriented, technology- fundamental. In recent years, our companies get big radiation increasing in the domestic business scope, won the praise of customers, with significant achievements in the industry. Building long-term customer relations with many Middle East\European and South American companies. Rely on technological progress, we change the pressure of competition as a driving force, whick make the company's new products, new processes emerge time by time.

With the idea of "quality, service, price, " and the spirit of fighting innovation, FOX Etech LIMITED continuous self- transcendence, our company become bigger and stronger, we will provide quality services to more customers. Your satisfaction is our pursuit! We look forward to working with you to become a long-term win-win partnership!
