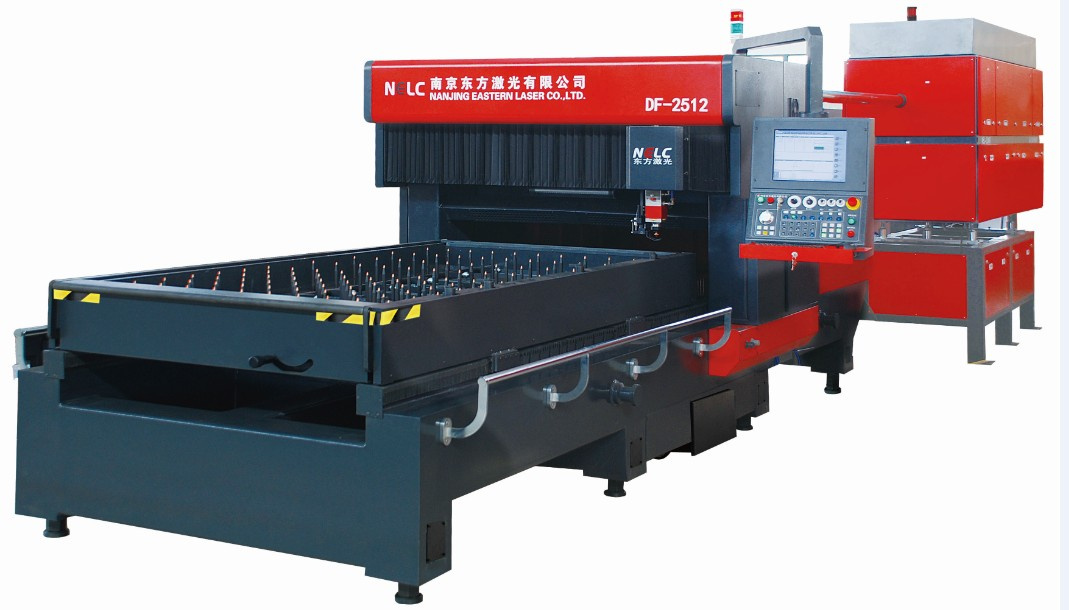

Wood Cutting Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
High power Die board laser cutting machine
Equipment Characteristics:
1).The structure of gantry with small size is stable and reliable
2). PA laser dedicated CNC systems, lasers and machine control systems into one.
3).The machine has the laser cutting proprietary energy control functions, machine operator functions, laser operation function, and expert cutting technology library, remote diagnostics and other functions.
4).The machine equipped with CAD/CAM the British Radan 2010 R2 dedicated automatic programming, automatic nesting software, which is to facilitate the production of graphics, programming and maximize the conservation of raw materials, and special cutting process features.
5). The machine with the laser cutting unique proprietary technology, the laser power of high-speed response slope tune, nozzle self-cleaning, high-speed punch, leapfrog movement to reposition and rollback cutting, automatic boundary.
6).The machine use upper and lower regional dust removal system at the same time. Cutting waste funnel fall into the scrap car, which is convenient for operator to clean regularly.
7). The machine adopt the American LASERMECH capacitive sensor, cutting head use the focusing mirror drawer Block, replace and clean the lens are very convenient.
8). 7.5"and 5"lens interchangeable. The cutting head is fitted with impact protection.
9). The machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life.
10). The three cutting gases are free to choose. The entire system uses high pressure gas line design, when cut stainless steel plate, the nitrogen pressure is up to 2.0 Mpa.
Cutting Samples
|
Model |
Parameter |
|
Wave length(μ m) |
10.6um |
|
Rated Power(W) |
1500W |
|
Maximum output Power (W) |
≥ 1650W |
|
Power Stability |
± 2%(Long term) |
|
Beam Diameter(mm) |
18mm |
|
Divergence |
≤ 1.5mrad |
|
Polarize |
Line Polarize, 45' angle |
|
Pulse Frequency |
0_ 1KHz |
|
Pulse width |
100us_ CW |
|
Power Supply |
AC 380V± 5% 50Hz
22KVA
3× 50A Fuse |
|
Water Chiller |
80L/min 0.4_ 0.5Mpa Pressure 20 degree
Must be over Dew point
Impurities ≤ 50um
Max water hardness 15 degree Germany Standard |
|
Environment Temperature |
Max Water hardness 12_ 30 degree |
|
Environment Humidity |
≤ 70% |
|
Compressor Air |
20L/Min 0.5_ 0.7Mpa Pressure No oil no water no dirty |
|
Gas Consumption |
≤ 50NL/h Purity 99.996%
If Reduce output power, gas consumption will be down |
|
Laser Source working situation and power out control system interface |
0-24V Digital Switch Signal |
|
Output Power out Control |
0-10V Simulation Signal |
|
Red Light Position |
Have |
|
Working Model |
(CW) GatedPulse) |
Our 1500W Laser Source Production make according to ISO9001 Certificate.
SLCE 12 × 18G Cutting bed main Technical Parameter:
|
Sequence |
Name |
Parameter |
Unit |
|
1 |
Cutting size |
1800× 1200 |
mm |
|
2 |
X axis |
1800 |
mm |
|
3 |
Y axis |
1200 |
mm |
|
4 |
Z axis |
150 |
mm |
|
5 |
X Y axis positioning Accuracy |
± 0.03/1000 |
mm |
|
6 |
X Y axis Repeat Positioning Accuracy |
± 0.005 |
mm |
|
7 |
Cutting bed Max Position Speed |
10 |
M/min |
|
8 |
Cutting board material Max weight |
200 |
Kg |
| Prod Model: |
DF-2512 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Power: |
1500W |
| Cutting Table: |
1250*2500mm |
Nanjing Eastern Laser Co.(NELC), a subsidiary of Rofin-Sinar Technologies, Inc.In China, specializes in design, development, manufacturing, sales, and technical services of high power CO2 laser sources and laser-based materials processing systems.Rofin-Sinar Technologies, Inc.Is the world leader in industrial laser sources and laser-based materials processing solutions with over 50 branches or offices in more than 20 countries and regions around the world.
The company was founded in 1993, and located in the National Nanjing High-tech Industrial Development Zone.NELC is a member of the executive directors of China Optics and Optoelectronics Manufacturers Association.NELC was appointed by the association to draft the national industrial standards for gas lasers.Jiangsu Provincial Government certifies NELC a high-tech enterprise.The City Government of Nanjing accredits NELC a foreign-invested advanced technologies enterprise, as well as a credit-worthy and trust-worthy company.The company passed the ISO9001 quality assurance system certification in 2000, and the laser products have passed CE certification.
Built upon licensed ROFIN-Sinar Laser technologies, the company has 20-years experience of design, development and manufacturing of high power CO2 laser sources and many years of design, development and manufacturing of laser-based materials processing machines.We have a team of managers and engineers of 20-years experience for management, product design and development, as well as production.The company has a large customer network accumulated over 20-year's time, and a large group of satisfying and supportive customers.
The company is one of the handful companies worldwide which have the high power CO2 laser manufacturing technologies, and the core manufacturing technologies of CNC laser processing equipment.The product portfolio includes high power CO2 laser sources, CNC laser cutting machine;CNC laser tube cutting machine, CNC laser welding machine, and CNC laser cladding machine
The company regards product quality essential for survival, and innovative technology will be our foundation for development.We see customers as friends, and customers' needs will be the goal of our pursuit.Excellent services are our best guarantee to our customers.We see competition as stimulus to push us to do better.Sustainable growth will be the goal of all our endeavor.
We will pursue a strategy of development in that we will strive to develop what is not available elsewhere, and for the ones available we will develop a better one.We provide technical advice, operations training, quality services during pre-sales, sales and after-sales, and laser application solution and turn-key laser processing equipment services to customers.
Nanjing Eastern Laser Co.Ltd has exported machine to many countries such as America country, Europe country, Middle East country and South East Asia country etc, Until now we have supplied about more than one thousand units of CO2 lasers and CNC-laser cutting machines for materials processing in a variety of industries.These lasers and CNC-CO2 lasers cutting machines have been used in track-rail transportation industry, textile machinery, grain processing machinery, agriculture machinery, fabric dyeing machinery, food processing machinery, engineering machinery, elevator manufacturing, aerospace industry, , appliances manufacturing, electric cabinet manufacturing, die-board cutting for printing& packing industry, sheet metal cutting, diamond saw blade manufacturing, water pump impeller welding etc...The application of laser processing system in manufacturing is expanding as more and more manufacturers adopt advanced manufacturing method in production.
