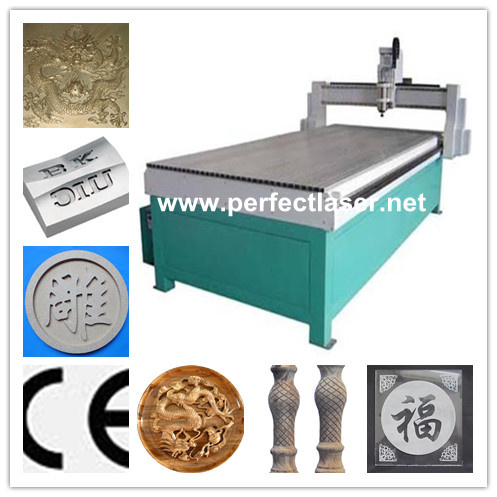

China CNC Router with CE Certificate (PEM-1224)
1. Applicable Fields
CNC Router is widely applied in engraving and cutting on all kinds of metal and nonmetal materials, such as wood/MDF, PVC plastic, plexiglass, acrylic, organic glass, marble, granite, aluminium, copper, steel and many other materials.
2. Product Features
The three axes use linearity square guide rail and drive. The whole casting alloy aluminum outer coverings dont distort and have accepted heating treatment. With DNC on-line, it can receive documents of 2G. It can run with high speed, which can be up to 16m/min.
If you want to know more, please contact us soon.
|
Model |
PEM-1212A |
PEM-1212B |
PEM-1325A |
PEM-1325B |
|
Working Area(X,Y,Z) |
1200*1200*100mm |
1300*2500*120mm |
|
Perfect Laser also have the ability to custom-made according to users special demand |
|
Spindle Power |
3KW |
4.5KW |
3KW |
4.5KW |
|
Table material |
Aluminium Alloy, Cast Steel Structure |
|
Maximum feed height |
80mm-300mm |
|
X,Y,Z Guideway rails type |
Square Guide Rail, Gear Transmission |
|
Working Delicacy |
0.025-0.05mm |
|
Max Engraving Speed |
25,000mm/min |
|
Resolution ratio |
0.002mm |
|
Repetition accuracy |
±0.02mm |
|
Spindle Rotating Speed |
6000 - 24,000rpm |
|
Spindle cooling |
Water Cooling |
|
Drive motor system |
Step Motor and Step Driver(Option: Servo System) |
|
Interface |
PCI Port or USB Port |
|
Memory buffer (Flash) |
128MB (U Disk) |
|
Engraving Command |
G code, u00, mmg, PLT, HPG |
|
Command language system |
English Version, Windows 98/2000/XP Operation System |
|
Operational Software |
Original Type3 Software, ArtCam software or Wentai Software |
|
Command language system |
English Version, Windows 98/2000/XP Operation System |
|
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
|
Working temperature |
0-45 degree |
|
Relative humidity |
30% - 75% |
|
Remark: the PEM-1325B is equipped with Vacuum work table and adopt more advance X-Y-Z Auto-oil-feeding System. |
Perfect Laser, a leading high-tech manufacturer of laser machinery in China, approved by ISO9001 and CE, with 3000 M2 production area and international work group, have rich experience in R&D, manufacturing, sales, exporting and after-sales services.
Our products, provided with stable performance and reasonable price, have been exported to overseas contries.
All of the components we use in the machine are of top quality, which have won us a high reputation from our customers worldwide.
Primary advantages of our product:
1) Excellent and High Quality Control
2) Prompt Delivery
3) Competitive Price
4) Earth-friendly Product
5) Small Order Accepted
6) Approved with CE certificates
All our products have notable superiority in supporting different clients with special demanding and personal services. Executed by reliable quality and reasonable price, Perfect Laser products got favorable sales success and outstanding reputation not only domestical in China, but also popular in more than 30 counties and areas.
Based on a highly specialized & internationalized staff group and technology, Perfect Laser accomplished the whole processes from software-exploitation, hardware-design, system-detecting to technical-supporting. Holding with an open mind, Perfect laser established two R&D center respectively in Changchun and Wuhan city, and cooperated closely with lots of researching institutes and universities all over the world. We applied for 63 national patents, and many of our technical achievement & technical index are in the advanced position in global range. Leading by market demanding, we chase for meeting our clients' Needs unceasingly and commit ourselves to product-oriented science & technology as well as market-oriented products, so as to combine high-tech with product perfectly to provide our client with favorable technical service and super-value product.
"Outstanding quality, global service". The whole staff of Perfect Laser act according to this concept with full enthusiasm and constant innovative spirit. Implement with the strategy of global sales, internationalized purchasing and internationalized technology, we established a stable platform to our long-term development. Stick with an open mind, Perfect Laser is willing to go forward hand in hand with global enterprises. Keeping forward looking, Perfect Laser will create bright future in phase with the world, with the times, and with clients' Requirement.
