Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic: |
Automatic |
| Certification: |
CE |
| Type: |
Wood Process and Matching Equipment |
Product Description
FOUR SIDE MOULDER (VM516S)
Technical parameters: Working width: 20-160mm
Working thickness: 8-110mm
Min working length: 240mm
Motor power:
First down spindle: 4kw
First right spindle: 4KW
Left spindle: 4kw
First upper spindle: 5, 5kw
Feeding motor: 3kw
Elevation motor: 0.75kw
Cutter spindle rotation speed: 8000rpm
Cutter spindle dia: 40mm
First down spindle: 125mm
Right vertical spindle: 112-160mm
Max tool cutting circle dia behind feeding guide: 140mm
Left vertical spindle: 112-160mm
Upper soindle: 110-160mm
Feed speed: 6-36m/min
In-speed pressure wheel dia: 140mm
In-speed pressure wheel width: 2x50mm
Pressure wheel width opposite left spindle: 2x20mm 2x14mm
Driven roller size in out-feed table: 101x130mm
Max. Pressure of feeding wheel: 6bar
Adjustment range of vertical spindle: 40mm
Adjustment range of infeed and reference guide: 10mm
In-feed table length: 1.55m
Setting precision of mechanical digital readout: 0.05mnm
Factoty:

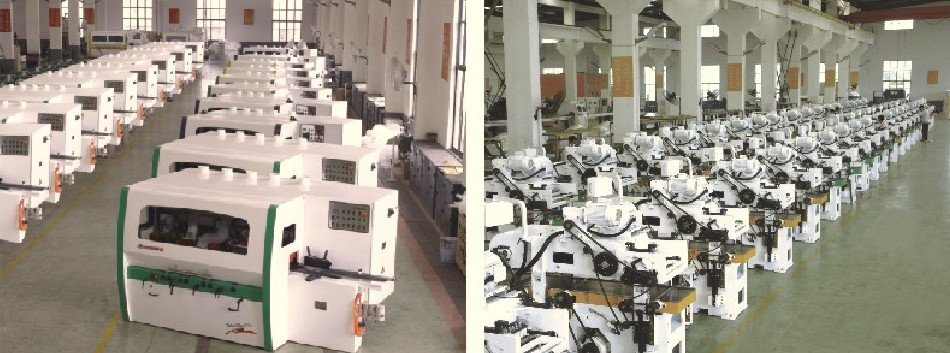

Jangja Machinery is a professional manufacture and exporter of woodowrking machinery in China, especially sawing machines and planing machines, with the efforts for more than 50 years, now Jangja has become the typical representative in solid timber preparation machinery line in China. Workshop:
Processing Equipment:
Equipment is the lifeblood of the indusrty production, We had introduced advanced equipments from Japan and Germany, arrange the production of according to the optimal production process, carried out the rigorous testing during whole process, these advanced manufacturing & testing machines guarantee the machining preciosion, quality of each workpiece and machine reliablity.
You are welcome to contact with us for more info about our machines.
You are welcome to be our agent of our wood working machine in your market! ! !
