Nanjing ZMAKE Machinery Co., Ltd. >> Woodworking Machinery for Wood Chip Handling Barker

Woodworking Machinery for Wood Chip Handling Barker

Name: Woodworking Machinery for Wood Chip Handling Barker
Brand: china-manufacturer-directory.com
SKU: 768118545
Availability: InStock
Rating: 4.5 (95 reviews)

Supplier:	Nanjing ZMAKE Machinery Co., Ltd.
Price:	US $ 10000-20000/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	various
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooperating Machine:	Wood Chipper
Application:	100000-300000m3/Year MDF/HDF /Pb Factory
Peeling Rate:	More Than 90%
Energy Consumption:	Low
Capacity:	Strong
Certification:	SGS

Product Description

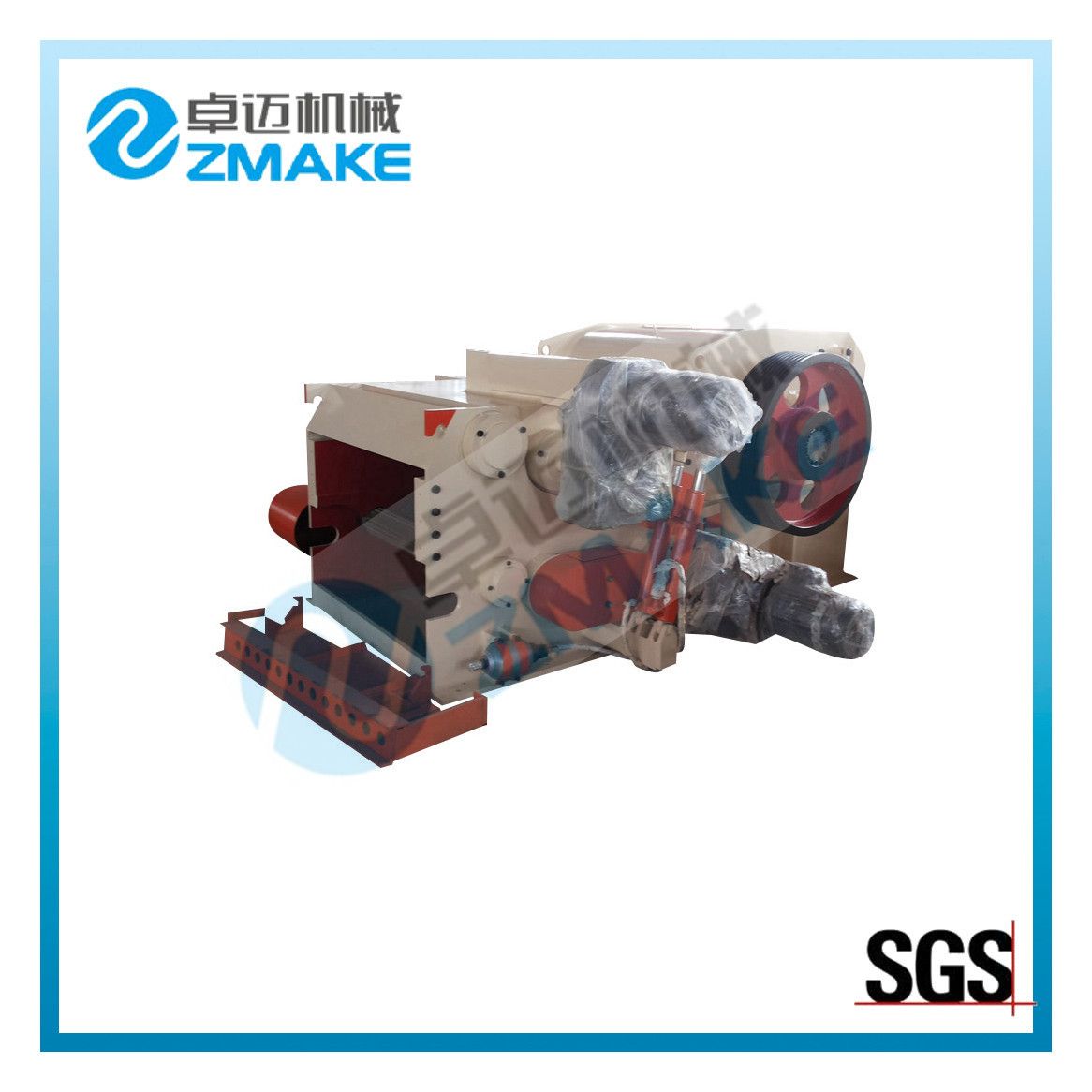

Woodworking machinery for wood chip handling barker

1. Application:

The complete production line can be used in 100000-300000M3/year MDF/PDF/PB and paper manufacting factory.

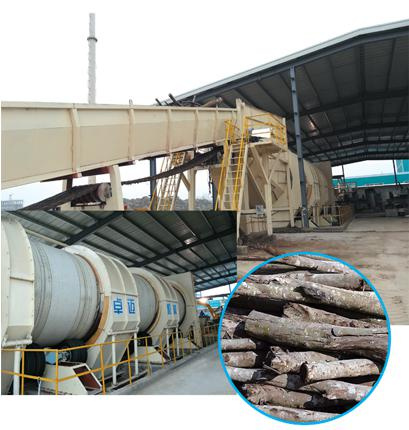

2. The Process

A. Log-->Infeed chain conveyer-->Barker chute-->Chipper-->Outfeed chain conveyer-->Roller conveyer-->Belt conveyer-->Belt / Roller conveyer-->Chipper

B. Bark-->Out-feed channel-->Belt conveyer-->Hammer flaker-->Energy Plant

3. Technical Data

No.	Equipment Name	Capacity (100000m³/year)	Capacity (150000m³/year)	Capacity (200000m³/year)	Capacity (250000m³/year)
1	In-feed Chain Conveyor	BZY418/24	BZY4110/30	BZY4112/30	BZY4112/30
	Delivery Capacity(m³/h)	75	115	180	240
	Motor Power(kw)	22	30	37	45
2	In-feed Chute	ZMLC2150-35	ZMLC2160-35	ZMLC2160-35	ZMLC2160-35
	Incline Length(mm)	5000	6000	6000	6000
	Incline Angle(ºC)	35	35	35	35
3	Roller Barker	BBP1130/15	BBP1140/15	BBP1140/21	BBP1140/26
	Capacity(m³/h)	75	115	180	240
	Motor Power(kw)	*345**	*355**	*455**	*555**
4	Output Chain Conveyor	BZY4110/6	BZY4112/6	BZY4112/6	BZY4112/6
	Delivery Capacity(m³/h)	75	115	180	240
	Motor Power(kw)	11	15	15	18.5
5	Roller Conveyor	BZY3110/5	BZY3120/5	BZY3120/5	BZY3120/5
	Delivery Capacity(m³/h)	75	115	180	240
	Motor Power(kw)	*33**	*34**	*34**	*35.5**
6	In-feed Belt Conveyor	BZY11100/10	BZY11120/10	BZY11120/10	BZY11120/10
	Delivery Capacity(m³/h)	75	115	180	240
	Motor Power(kw)	4	5.5	7.5	11
7	Drum Wood Chipper	BX2110	BX2113C	BX2116	BX2120
	Capacity(m³/h)	75	115	180	240
	Motor Power(kw)	220(380V)	450(10KV)	710(10KV)	1000(10KV)
8	Output Screw Conveyor	BZY235/8	BZY235/8	BZY235/10	BZY236/12
	Capacity(m³/h)	75	115	180	240
	Motor Power(kw)	15	*211**	*215**	*218.5**
9	Bark Conveyor	BZY1165/36	BZY1180/36	BZY1180/40	BZY1180/45
	Capacity(m³/h)	40	50	60	70
	Motor Power(kw)	7.5	7.5	11	11

Nanjing ZMAKE Machinery Co., Ltd is founded in 2003, and is the member enterprise of China NATIONAL FORESTRY MACHINERY ASSOCIATION & China PAPER ASSOCIATION. ZMAKE is located at the economical development zone, Lishui County, Nanjing City, Jiangsu Province. It's about 15 kilometers away from Nanjing Lukou International Airport, and about 5 kilometers away from Nanjing Lishui High-speed Rail Station, so the transportation is very convenient. That company's land occupation is around 38690 square meters, manufacturing shop is about 28000 square meters, office is about 3000 square meters. Annual sales is more than 50 million Chinese yuan, it owns the rights of self-managed import and export.

Nanjing ZMAKE Machinery Co., Ltd is a forest equipment company with R&D, Manufacturing, Sales, Service. It has more than 100 employees, of which there are more than 40 professional & technical workers. That company equipped with many kinds of CNC & mechanical processing equipment, we offer best service for customers with scientific& perfect detection technology.

In the manufacturing field of artificial board, chipboard, pulp and paper, ZMAKE provides the technology, the productions and the service for preparation production line. That related productions contain roller peeling machine series, drum / disc chipper series, ring flaker series, screen equipment, wood rechipper series, stock bin series, all kinds of transportation equipment and non-standard production and so on. Our equipment absorbed the international advanced technology and using experience, they are the best replacement for imported equipment.

ZMAKE brand cutting tools, accessories won great recognition from our customers by mature manufacturing idea and craft. ZMAKE advocates that we should provide service for customers within " perfect manufacturing system & scientific management ".
