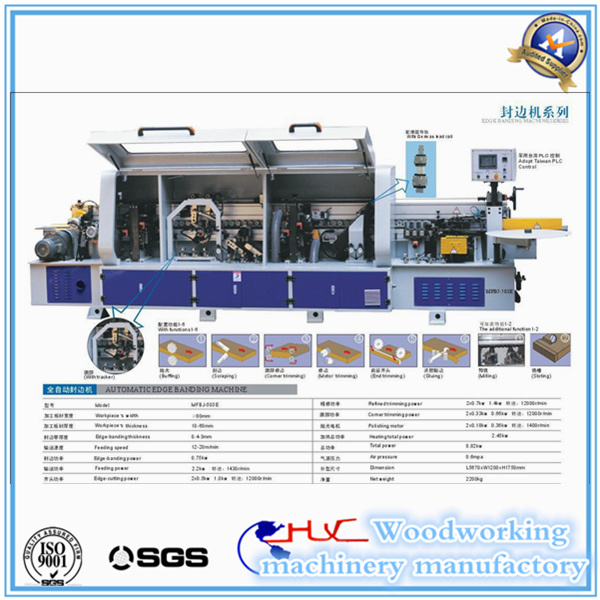

Woodworking Tool for Edge Banding Machine with Corner Tracking (MFBJ-503E)
| Price: |
US $ 13500-15000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
MFBJ-503E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size(L*W*H): |
5670*1200*1750mm |
| Weight: |
220kg |
| Voltage: |
380V |
| Type: |
Linear Edge Banding Machine |
| Automatic Grade: |
Automatic |
| Certification: |
SGS |
| Manufacturing Principles: |
Glue Tank Underneath |
Product Description
Woodworking Tool for Edge Banding Machine
with Corner Tracking (MFBJ-503E)

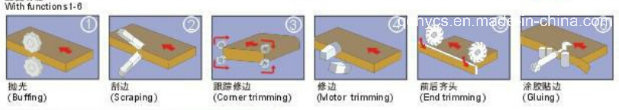

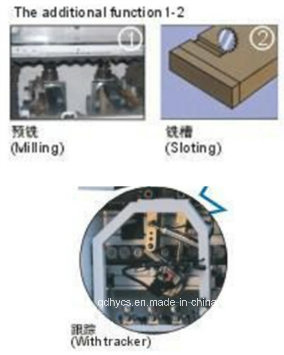

Main Function:Premilling, Gluing, Edge Banding, End Cutting, Fine Trimming, Scraping, Buffing, Slotting
Detail:
Features:1. It is suitable for medium density fiberboard, core-board, Solid wood board, flakeboard and other's straight edge trimming
2. The edge is delicate and smooth, and the sealing line is flat and smooth.
3. Equipped with the counting device, it makes the machine adjustment and debugging more unified and simple by the numberable scale, a mass of adjustment time can be saved.
4. It is stable, reliable and durable, and the price is moderate. Technical Specification:| Model | MFBJ-503E |
| Width of Workpiece | ≥80mm |
| Thickness of Workpiece | 10-60mm |
| Thickness of Edge banding | 0.4-3mm |
| Feeding speed | 12-20m/min |
| Edge banding Power | 0.75kw |
| Feeding Power | 2.2kw 1430r/min |
| Edge cutting Power | 2*0.5kw 1.0kw 12000r/min |
| Fine Trimming Power | 2*0.7kw 1.4kw 12000r/min |
| Corner Trimming Power | 2*0.33kw 0.66kw 12000r/min |
| Polishing Motor | 2*1.8kw 0.36kw 1400r/min |
| Heating Total Power | 2.45kw |
| Total Power | 8.82kw |
| Air Pressure | 0.6mpa |
| Overall Size(L*W*H) | 5670*1200*1750mm |
| Weight | 2200kg |
