Taizhou Sihai Machinery Co., Ltd. >> Worm Gearbox for Food Process Industry

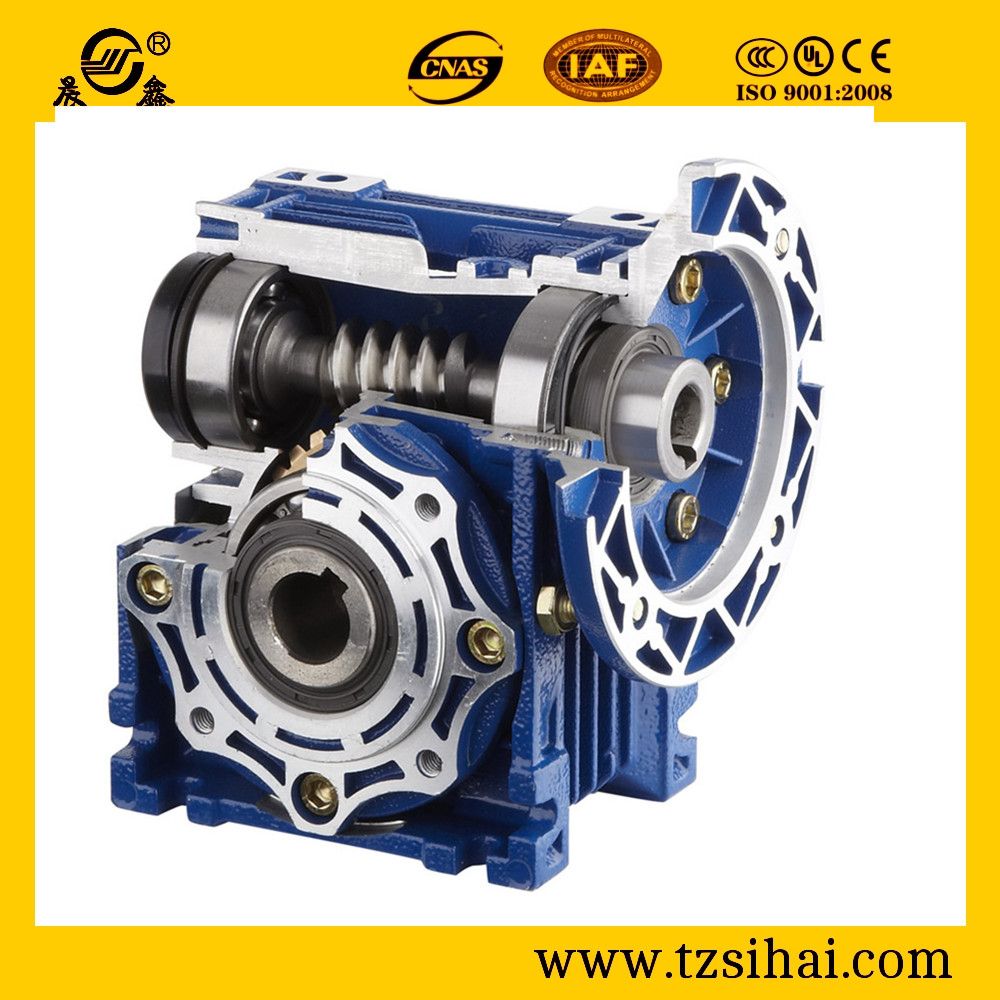

Worm Gearbox for Food Process Industry

Name: Worm Gearbox for Food Process Industry
Brand: china-manufacturer-directory.com
SKU: 762398255
Availability: InStock
Rating: 4.9 (114 reviews)

Supplier:	Taizhou Sihai Machinery Co., Ltd.
Price:	US $ 25/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	NMRV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Power:	0.06kw-15kw
Input Speed:	1400 Rpm or Other
Speed Ratio:	5 /7.5 /10 /15 /20 /25 /30 /40 /50/60 /80 /100
Output Torque:	2.6n.M-1195n.M
Motor Coupling:	Flange or Shaft
Color:	Blue,Silver or Customised
Quantity Control:	ISO 9001
Manufacturing Method:	Rolling Gear
Toothed Portion Shape:	Bevel Wheel
Type:	Worm and Wormwheel
Material:	Aluminium

Product Description

Features
1.Wide transmission rate, strong output torque
2.Compact mechanical structure, light weight, small volume&Good heat-dissipating
3.Smooth operation with lower noise or vibration
4.Easy mounting, free linking, high efficiency
5. PERFECT SUBSTITUDE FOR MOTOVARIO AND BONFIGLIOLI PRODUCTS

Applications
Wide range of application,including light industry of food &beverage, Cement,
package,construction material,chemicals and etc.

Technical data:

Model	RV025 030 040 050 063 075 090 110 130 150
Single unit versions	NMRV - fitted for motor flanged coupling, NRV - with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft,
Power	0.06----15KW
Single unit reduction ratio	1:5 7.5 10 15 20 25 30 40 50 60 80 100
Output torque	2.6---1195N.M
Worm shaft material	20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm
Worm wheel material	worm mandrel is HT250,and worm ring gear,ZQSn10-1,hardness is 60HRC

After-sale service:
One year warranty,subject to proper operation and installation;free technical support all the time.

Taizhou Sihai Machinery Co., Ltd. Has been specialising in the manufacture and export of RV series worm gearboxes and other power transmission products for years, dedicated to provide to our customers good quality products in competitive prices. The main products are RV series worm gear speed reducers, UD series mechanical speed variators, G3 series helical geared motors and the specially designed reducers for polishing machines. Our products are widely used in the mechanical apparatus for foodstuff, ceramics, package, chemical, printing, and plastics, etc.

Guided by the idea, "Quality is the very key. ". The company proceeds in strict quality control to all the products, complying with the requirements of ISO9001: 2008, and certificated, which has enabled our products to have enjoyed the successful sales, popularity and good reputation among the markets of Europe, MID-east, and Souteast Asia...

Innovation, good quality, customers' satisfication, and excellent service are the principles of the company. All customers at home and abroad are warmly welcome to contact us and negotiate for mutual business expansion.
