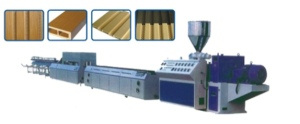

WPC Greenerwood (wood grain PVC WPC) Profile Extrusion Line (SJ65/28)
Product Specifications
| Prod Model: |
SJ75/28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sj65/28: |
Single Screw Extruder |
| Type: |
Profile Extruder |
| Screw: |
Twin-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Plastic Processed: |
WPC |
Product Description

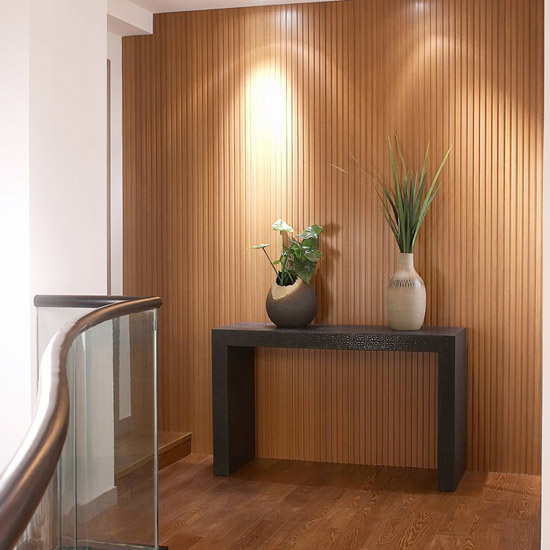

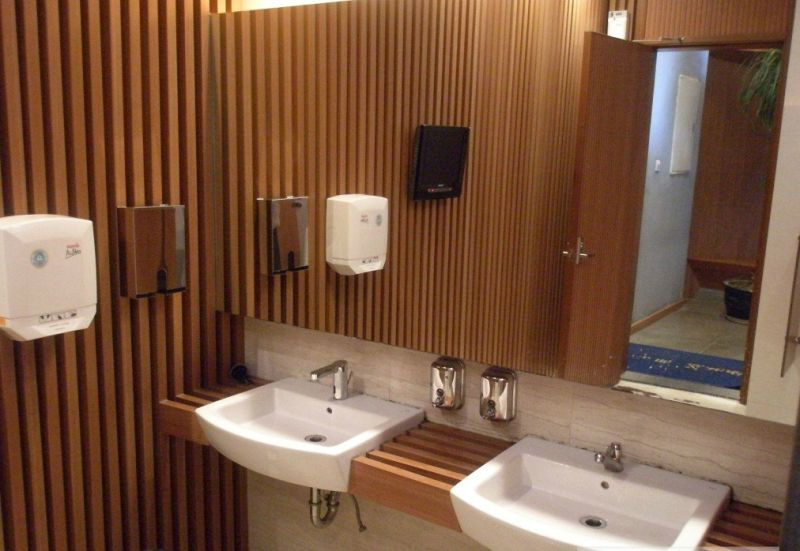

GreenerWood Production Equipments: GreenerWood is a kind of artificial wood, which is more economic and environmental than nature wood. GreenerWood is made from wood fiber, PVC resin and other little additives through extrusion technique. Its physical performance is the same with wood, but it also has the advantages of antiwater, antimoth, antiseptic, thermal insulation and etc. It can be recycled and doesn't include any harmful substance to human body. The content of released formaldehyde is only 0.3mg/L, greatly lower than national standard (1.5mg/L). So GreenerWood is the true green composite material. Application: Mainly used for indoor decoration, such as: acoustic panel, ceiling, decking, wall panel, skirting, string course, window shade, fencing, railing and others. It can be used in the fields of exterior wall panel, indoor, bathroom, home decoration, outdoor landscape and etc. Raw Material: Wood powder(80-100 mesh)-- PVC resin powder calccium—DOP 530 foaming regulator—lubricant AC foaming agent stabilizer. Process Flows: Weighing Heat/cool mixing -- Pelletizing Profiles Line Crush and reuse
|
Mixing Machine |
|
Type |
Heat/Cool |
Heat/Cool |
Heat/Cool |
|
Volume |
200/500L |
300/600L |
500/1000L |
|
Time |
8-10 min per time |
|
Cooling time |
6-10 min per time |
|
Pelletizing Line |
|
Model |
RMSG65/132 |
RMSG80/156 |
RMSG92/188 |
|
Screw |
Conical Twin Screw |
|
Capacity |
200kg/h |
300kg/h |
400kg/h |
|
Cooling |
Three Phase Air Cooling |
|
Main Motor |
37kw |
55kw |
110kw |
|
Profiles Line |
|
Model |
SJ 50/25 |
SJ70/25 |
SJ90/25 |
SJ120/25 |
|
Screw |
Single Screw |
|
Capacity |
60kg/h |
90kg/h |
130kg/h |
200kg/h |
|
Max Width |
150mm |
180mm |
240mm |
300mm |
|
Main Motor |
11kw |
22kw |
45kw |
75kw |
|
|
|
|
|
|
Qingdao Jinfuxin Plastic Machinery Co., Ltd is a state designated enterprise producing plastic machinery and high-tech enterprise in Qingdao. Mainly engaged in research & development, manufacturing, sales, and after-sale service of new plastic machinery. Products consist of PVC Crust Foam Board Production Line, Plastic Grass Mat Machine, PET/PP Strap Production Line, PA/PP/PE/PET/PBT Filament Extruding Machine, etc. And all kinds of plastic pipe, profiles, board, bar extrusion line and auxiliary equipment. Our machines are popular with the customers, which are sold all over the country and exported to Southeast Asia, Russia, Ukraine, Iran and other countries.
Since our company has establishd, it always takes the domestic and international market as the guide, the technology as leader, the quality as the life, strengthens joint units with domestic colleges and universities of science and technology and brings in and absorbs foreign advanced technology, in a timely manner to develop new plastic industry products according to the market demand, provides customers with a complete innovative set of production line, takes customer satisfaction as the ultimate goal, to strive for the best plastic machinery in China.
And expand the Qingdao Jin Xinquan Plastic Products Co., Ltd., production of plastic corrugated pipe products are mainly used for electrical threading pipe, auto threading pipe, casing, machine tool products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instruments and meters, etc
Jinfuxin company aim "morality for the surplus, credit management, service oriented, joint development, shaping the future".
