WPC Machinery for WPC Outdoor Decking, Fencing, Wall Cladding

Name: WPC Machinery for WPC Outdoor Decking, Fencing, Wall Cladding
Brand: china-manufacturer-directory.com
SKU: 762372145
Availability: InStock
Rating: 4.5 (123 reviews)

Price:	US $ 25000-35000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

WPC Machinery for Outdooe decking(High Tech , PLC control)

PE +Wood decking wpc extrusion line

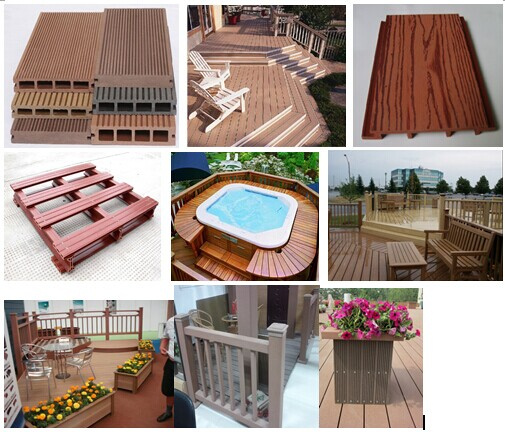

The machine can produce PE, PP or PVC and wood profile products. These products are mainly applied for making pallets, packing cases, floors, wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max. 50-75%. This machine can produce the PP, PE, PVC, ABS, PS and etc

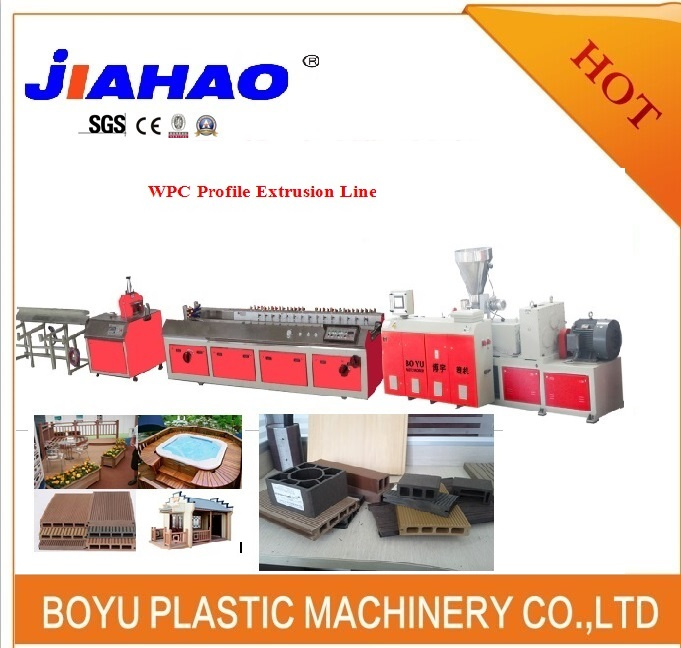

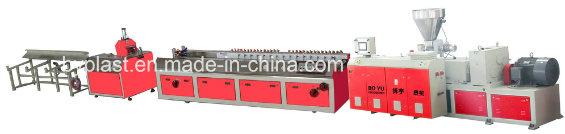

SJSZ65/132 wpc profile production line including :

1. SJSZ65/132 twin screw extruder

2.Auto screw loader

3. High speed vacuum Calibration table

4. High speed hauling off unit and cutter machine

5. Stacker

Item	SJSZ 65/132	SJSZ 80/156	SJSZ 92/188
Screw Diameters(mm)	65mm/132mm	80mm/156mm	92mm/188mm
L/D Ratio	22:1/25:1	22:1/25:1	22:1/25:1
Output(Kg/h)	160-200	250-350	400-500
Main Driving Power(kw)	37	55	110
Heating Powder(Kw)	4 zones, 20Kw	5 zones, 38Kw	6 zones, 54Kw

BOYU Service: "Turn Key" project, including WPC project feasibility analysis, workshop and electric facilities design, machine installation and test, staff training, mould adjust and test, formulation, after-sale service, ect..

BOYU would always supply clients with high-tech, stable-performance, professional property, and exceptional quality WPC machines. We are trying to be No. 1 in China WPC machinery area, and wish a great future with clients together.

Origin and brand of electric appliances of BOYU Extrusion Line

1) Main motor: Siemens

2) Contactor: Siemens

3) Temperature Controller: Japanese RKC

4) Inverter made: ABB

5) PLC Control

Prod Model:	BYSJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PLC Control:	High Tech
Suitable Resin: PE/PP/PVC+Wood Powder:	Model No.: Sjsz-65/132
Product Type: WPC Extruder:	Breaker,Contactor: Siemens
Final Products: WPC Profile, Door Frame,:	Automatic System
Type:	Profile Extruder
Feeding Mode:	One Feed
Assembly Structure:	Integral Type Extruder
Screw:	Twin-Screw
Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw
Exhaust:	Exhaust
Automation:	Automatic
Computerized:	Computerized
Plastic Processed:	PE/PP/PVC
Product Type:	WPC

Wuxi Boyu Plastic Machinery Co., Ltd. is one of the most professional WPC PVC foam board production line manufacturer in China. The main production is PVC WPC(wood plastic) foam board extrusion machinery. BoYu pay attention to technological innovation, actively introduce advanced foreign technology, and constantly develop new products.

As one of the earliest domestic manufactories to develop WPC machine/PVC foamed board extrusion line, our company is the professional manufacturer in wood-plastic machinery in China. We have large number of senior experts and technician in WPC/PVC extrusion line, molds, process formula and product production. Accumulated rich experience in the area of WPC/PVC extrusion line, we can provide all-round service and turn-key project.

Our company has passed the CE/SGS/BV quality system certification, and carried out the production in strict accordance with the quality system certification to ensure the quality of products.

Our main products:

1, WPC/PVC foam board production line;

2, WPC/PVC hollow Door board production line;

3, PVC imitation marble wall panel sheet production line;

4, WPC(PE/PP/PVC+wood) profile production line;

5, PVC wall panel production line;

6, Plastic auxiliary equipment.

7, PVC Sheet production line

Our machines are in good quality and various kinds. What you want, we can!
