WPC production line:
WPC wood plastic door and window production lines use different specifications wood-plastic specialized twin-screw extruder, and wood-plastic specialized single screw extruder, and can be configured to the corresponding vacuum shaping table, hauling machine, horizontal cutting machine, stacker and other auxiliary equipment.
Replacement of mold can produce different specifications of plastic sheet. The tractor uses a unique technology, steady work, good reliability, great traction. Using a vacuum special larger swirl cooling system to increase to facilitate cooling and shapping in order to meet the needs of the production characteristics of wide wood-plastic plate. Transverse cutting device and plate traction speed sync, reasonable design, stable operation it can be automatically cut to length, and equipped with dust recovery.
Main equipments:
1. Parallel twin -screw plastic extruder one set
2. Dead die of Wood plastic composites by user's instruction
3. Mold of vacuum shaping table each specification per set
4. Vacuum cooling shaping table one set
5. Hauling machine(crawler tractor) one set
6. Horizontal cutting machine one set

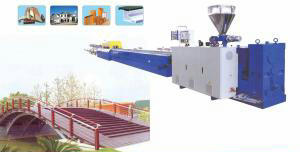

The WPC profile production line is equipped with conical twin screw extruder, calibration unit, haul off machine, cutting machine
The WPC profile production line
A) Screw & barrel
The screw & barrel is from CHENSHI Product and alloy nitride
Diameter: 65mm, 132 mm
Output: 120 ~ 150 kg/h
The screw structure designed specifically for PVC Product and the Meshing type of Two screws is conical meshing. The screw is Counter-rotating and turning outside the speed is 1 ~ 34.7 r/min
The material of screw is 38CrMoAlA the nitride layer of screw is 0.5-0.7mm,
Hardness: HV 740-940.
The temperature controlat the screw core: The heating of screw is by out circulation oil heating at the screw core.
The material of barrel is 38CrMoAlA the nitride layer of barrel is 0.6-0.7mm,
Hardness≥ HV 940.
The barrel temperature control: Heating rings is cast aluminum heating rings, with stainless steel cover outside
The barrel cooling method is air cooling
The barrel had 4 heating zones. The heating power is 19KW. Temperature range is 50~300° C. The fan is from Qingdao Product. The power is 0.55kw. The pressure sensor is from Xiaogan Hubei With melt pressure display.
B) Calibrated feeding system:
The Feed hopper is made by stainless steel
Calibrated feeding
The feeder motor is from Suboleier Hangzhou. The motor power is 055KW. The
Working method of the main motor is Three-phase asynchronous motor. The main
Motor speed is 10 ~1500 r/min. Feeder screw speed is 1 ~ 50 r/min.
Speed regulating method By ABB inverter
C)Vacuum exhausting system
The Vacuum pump is Chinese good quality product.
The Vacuum pump power is 2.2KW
Pump motor working method: Three-phase asynchronous motor
The Vacuum degree: 0~ -0.075Mpa
D) Driving and speed reduction system
The gearbox has high torque
The cooling system method is water cooling
The gear material is 20CrMoTi, nitride and ground. The gear material nitride
Using German technology, long service life, low noise, low calorie
Gearbox is horizontal type from Jiangyin. The motor is connected to the gearbox by coupler.
Through ultra-bevel gear torque output from uniaxial into biaxial torque output.
E) Main motor system
AC motor is Zhongtian Shanghai
Main motor power 37kw, 380V, 50Hz
Speed regulating method: ABB Frequency Converter.
F) Outer Size & Weight
Outer Size: 3200× 1500× 2100 mm
Center height is 1050mm
The Weight: Is 3000kg
G) Constant temperature oil tank system
