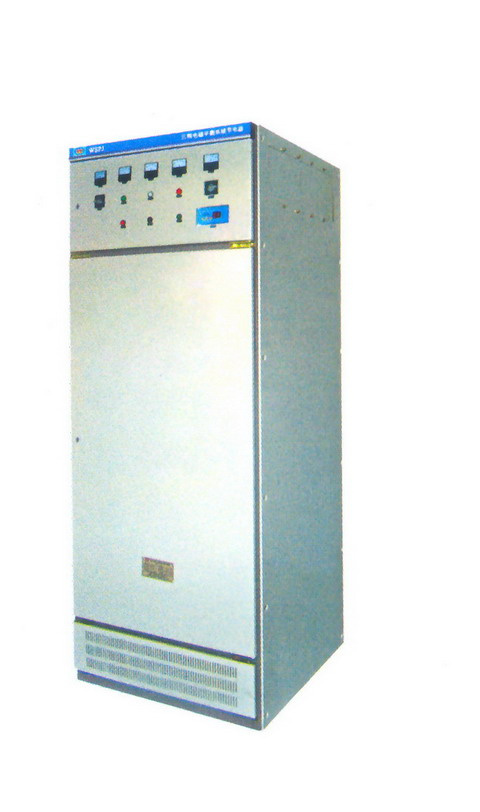

1)Description: WPGJ power factor correction cabinet for electric circuit
2)Main function:
1)reduce reactive power, the power factor increased to over 0.95
2)improve voltage quality
3) reduce line loss, decrease temperature
4) increase efficiency of the transformer load factor and electrical equipment
3)Performance characteristic
Adopting self-healing capacitor whose performance is far better than oil medium power capacitor. The medium and the poles of the self-healing capacitor have self-healing performance. It is with high density of field, low consumption of the medium, small volume and large capacity.
An automatic controller of reactive power compensation has been set which can circulate automatically and switch the capacitor by steps. The switching time interval can be adjusted to keep the reactive power consumption of the electric network at the lowest level, in order to improve the quality of the network voltage efficiently and reduce the consumption of the power distribution system and the transformer.
Multiple protections:
1). Single fuse protection
2). Over current protection
3). Over voltage protection
4). Under voltage protection
5). Inrush current and higher harmonic suppression
4. The power factor can be improved to 0.92 or above if the proper capacity is adopted.
4)Unique feature
1) self-heating metallization shunt capacitors are used, which is equipped with internal safety device and boasts of HGH reliability and efficiency
2)adopt dry type self-heating capacitor, small volume, low weight, large capacity
3)Automatic switch on / off performance, accoridng to power factor
4)self- discharge function, remaining voltage will decreased lower than 50V in one minute after switch off; Full protection

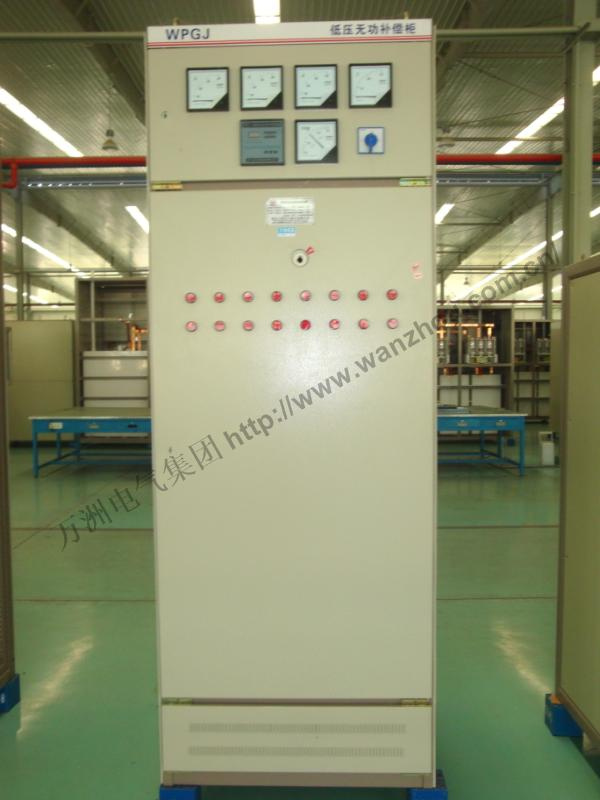

Style WPGJ low voltage compensation cabinet
Rated Voltage 240V ~ 600V
Working conditon Ambient temperature -40C ~ + 50C
Humidity <95%
Altitude <2000M
Supply the following information for plan capacitor metal name plate information capacity type
Capacity
Rated current
Min and max working current
Electric meter information working voltage
Working current
Workshop condition load type ( such as pump, mill ball etc)
