Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe |
| Usage: |
Transmission Chain |
| Material: |
Rubber |
Product Description

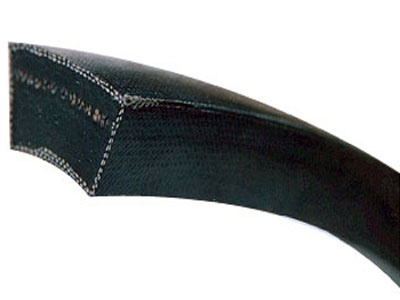

With the increasing demand on advanced pertomance and more compactness of agricultural machinery and industrial drive, specially for combined harvester, transplanter, etc. Serious reverse flexure of belts, large caloric power and increasing impact of outburst load which conventional belts obviously can not satisfy corresponding quality requirements. Technical innovation is made on our wrapped Variable Speed belts, developed for large agricultural machinery, feature simple structure, easy production, smooth transmission, resistant to shock loads and vibration, high abrasion, oil and heat resistance provides longer service life, wide applicability and convenient maintenance.
We manufacture these wrapped variable speed belts in accordance with standard ISO 3410-1989 and Chinese standard GB/T 15327-2007, GB/T14829-2007, GB/T 10821-2008 refer to BS 3733, RMA IP 25.
Heca offers both Half-wide width vs belt (use for agricultural machinery) and wide width vs belt (only use for industrial variable speed application).
Construction:
Rubber impregnated cross woven cotton-polyester fabric.
Low Stretch high modulous adhesive activated polyester cable cord.
Compression rubber.
|
Section |
W16 |
W20 |
W25 |
W31.5 |
W40 |
W50 |
W63 |
W71 |
W80 |
W100 |
|
Top Width (mm) |
17 |
21 |
26 |
33 |
42 |
52 |
65 |
74 |
83 |
104 |
|
Pitch Width (mm) |
16 |
20 |
25 |
31.5 |
40 |
50 |
63 |
71 |
80 |
100 |
|
Height (mm) |
6 |
7 |
8 |
10 |
13 |
16 |
20 |
23 |
26 |
32 |
|
Section |
Top Width mm |
Pitch Width mm |
Height mm |
Length Factor |
Length Range |
|
|
|
|
|
Li to La mm |
inch |
mm |
|
|
|
|
|
HI/FV25 |
25.4 |
23.6 |
12.7 |
80 |
39 - 79 |
1000 - 2000 |
|
|
|
|
|
HJ/FV32 |
31.8 |
29.6 |
15.1 |
95 |
55 - 118 |
1400 - 3000 |
|
|
|
|
|
HK/FV38 |
38.1 |
35.5 |
17.5 |
110 |
63 - 118 |
1600 - 3000 |
|
|
|
|
|
HL/FV45 |
44.5 |
41.4 |
19.8 |
124 |
79 - 157 |
2000 - 4000 |
|
|
|
|
|
HM/FV51 |
50.8 |
47.3 |
22.2 |
139 |
79 - 197 |
2000 - 5000 |
|
|
|
|
HECA INDUSTRY original names as Sanmen Rubber Item Factory, was established in 1989, located in the city of Taizhou, Zhejiang Province, which is 116 kilometers from Ningbo and 400 kilometers from Shanghai.
It is a leading manufacturer specialized in quality rubber belt and hose for industrial and automotive application.
Our factory covers 166, 500 sq. Meters, currently has a total assets of 385 million RMB and a registered capital of 50.8 million RMB. There are total 1461 stuffs including 126 junior and senior
Technicians, employ the most advanced manufacturing line of transmission belt and silicone hose.
Our products are well sold in China and exported to America, Europe, Middle East, Africa and South Asia. etc. The products are well accepted by our customers and enjoy a good reputation both in the domestic and overseas markets.
The company takes quality a high priority to its customers and has been awarded with the ISO9001-2000 Quality Management System Certification, ISO 14001-2004 Environment Management System Certification, ISO 10012-2003 Measurement and Detection System Certification, OHSAS1800 Occupational Health Safety System Certification.
Adhering to the principle of "quality first, Customers first", we pay much attention to product quality control. Do our best to build famous brand and service to the customers all over the world. With advanced equipment and technology, management process, we are redefining the rubber technology, offering the best product and service to our customers.
