Product Specifications
| Prod Model: |
WS-CMP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inductance: |
0.047~27uh |
| Size: |
0603~1008 |
| Rated Current: |
50mA~1800mA(Max) |
| Dcr: |
0.01~1.2 Ohm |
| Material: |
RoHS |
| Package: |
SMD |
| Lead Time: |
Fast |
| Structure: |
Multilayer Ferrite |
| Type: |
Multilayer Ferrite Chip Inductors |
Product Description

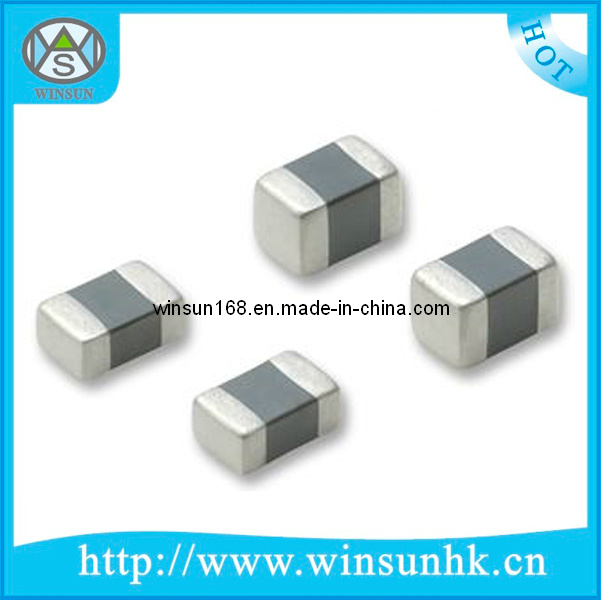

WS-CMP SERIES HIGH QUALITY FERRITE CHIP/SMD INDUCTOR
FEATURES:
. Very large rated current and low direct-current resistance.
. No cross coupling between indutors due to low magnetic shield and high reliability.
. No lead,ideal for high density SMT installation,with no directtionlity.
. Superior solderability and resistance to soldering heat,ideal for wave
or reflow soldering.
APPLICATIONS:
VCD/DVD , digital cameras , personal computers etc.
SPECIFICATIONS
Inductance : 0.047uH~27uH
Size: 0603~1008
Rated Current : 50~1800mA(Max)
DCR : 0.01~1.2 Ω (Max)
Operating temperature range :40 to +85°C
Storage temperature range: 10 to +40°C
DIMENSIONS :
ELECTRICAL CHARACTERISTICS:
(WS-CMP Series)
Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal ect.
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect
