Product Specifications
| Prod Model: |
WS-F6700-DFC3BXL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wired |
| Firewall: |
Firewall |
| Application: |
Enterprise |
| Transfer Rate: |
10/100/1000Mbps |
Product Description
Specifications

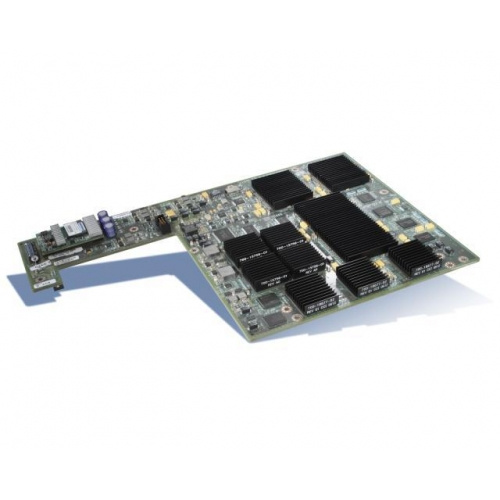

WS-F6700-DFC3BXL
Catalyst 6500 Dist Fwd Card- 3BXL, for WS-X67xx
Good price
Fast delivery
The DFC3BXL is an optional daughter card for CEF720-based line cards such as WS-X6704-10GE, WS-X6724-SFP, WS-X6748-SFP, and WS-X6748-GE-TX. It provides localized forwarding decisions for each line card and scales the aggregate system performance to reach up to 400 mpps. The DFC3BXL offer enhancements to support Multiprotocol Label Switching (MPLS) and Access Control Entries (ACE) counters on the Cisco 6700 Series line cards. The DFC3BXL also has improved scalability to support one million IPv4 routes and 256-KB NetFlow entries.
Cisco WS-F6700-DFC3BXL General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 6500
Product Name: Catalyst 6500 Distributed Forwarding Card 3
Product Type: Distributed Forwarding Card
Cisco WS-F6700-DFC3BXL Interfaces/Ports
Interfaces/Ports: Not Applicable
Interfaces/Ports Details: Not Applicable
Cisco WS-F6700-DFC3BXL Miscellaneous
Additional Information:
Supports all features that WS-F6700-DFC3A currently supports
Support of MPLS and ACE counters
Supports one million routes
Compatible with Cisco IOS Software 12.2(18)SXD and later Release
Supports all features that WS-F6700-DFC3A currently supports
Support of MPLS and ACE counters
Supports one million routes
Compatible with Cisco IOS Software 12.2(18)SXD and later Release
Compatibility:
Supported Supervisor Engines:
WS-SUP720
WS-SUP720-3B
WS-SUP720-3BXL
Supported Line Cards:
Cisco Catalyst 6700 series
|
Device Type |
Switching accelerator WS-F6700-DFC3BXL |
|
Enclosure Type |
Plug-in module |
|
RAM Installed ( Max ) |
512 MB |
|
Performance |
IPv4 switching : 450 Mpps
IPv6 switching : 225 Mpps |
|
Capacity |
MAC addresses : 96000
NetFlow entries : 128000
IPv4 routes : 256000 |
|
Designed For |
P/N: WS-X6704-10GE, WS-X6704-10GE=, WS-X6704-10GE-RF, WS-X6708-10G-3C, WS-X6708-10G-3C=, WS-X6708-10G-3CXL, WS-X6708-10G-3CXL=, WS-X6724-SFP, WS-X6724-SFP=, WS-X6724-SFP-RF, WS-X6748-GE-TX, WS-X6748-GE-TX=, WS-X6748-GE-TX-RF, WS-X6748-SFP, WS-X6748-SFP=, WS-X6748-SFP-RF |
