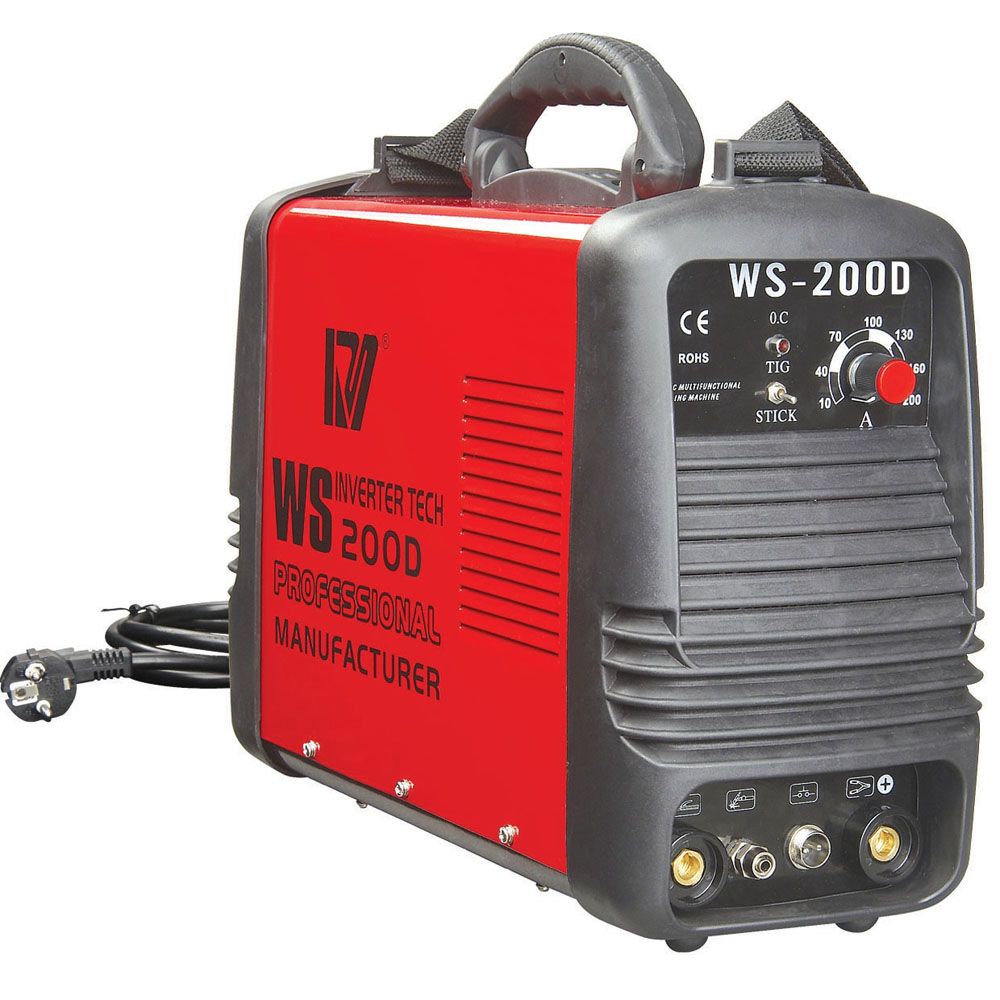

Product Specifications
| Prod Model: |
WS-200D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
ARC Welders |
| Current: |
Direct Current |
Product Description
1. Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.
2. Current can be adjusted stepless, high efficiency.
3. Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4. Two welding model: DC MMA, DC TIG, widely used, touched arc technique or HF arc-starting and convenience arc-starting, stable welding current, strong welding permeability.
5. Suit for all kinds of basic and acid electrodes.
6. Be able to weld steel, carbon steel, stainless steel, copper, aluminum, titanium, nickel and other alloy material.
7. With complete accessories.
8. Carton box.
|
Model |
Rated Input Voltage (V) |
Input Capacity (KVA) |
No-load Voltage (V) |
Rated Current (A) |
Up-Slope Time (S) |
Down-Slope Time (S) |
Postflow Time (S) |
Basic Current (A) |
Pulse Rate |
Arc-Starting |
Power Factor COS |
Output Voltage (V) |
Frequency (Hz) |
Weight (kg) |
Dimension (mm) |
|
|
WS-140D |
110/220 |
4.2 |
56 |
10-140 |
2 |
4 |
10 |
10-140 |
0.1-0.9 |
HF |
0.8 |
15.6 |
50/60 |
11 |
410*230*320 |
|
|
WS-160D |
110/220 |
5.3 |
56 |
10-260 |
2 |
4 |
10 |
10-160 |
0.1-0.9 |
HF |
0.8 |
16.4 |
50/60 |
11 |
410*230*320 |
|
|
WS-180D |
110/220 |
5.9 |
56 |
10-180 |
2 |
4 |
10 |
10-180 |
0.1-0.9 |
HF |
0.8 |
17.2 |
50/60 |
12 |
475*255* 385 |
|
|
WS-200D |
110/220 |
6.7 |
62 |
10-200 |
2 |
4 |
10 |
10-200 |
0.1-0.9 |
HF |
0.8 |
18.0 |
50/60 |
12 |
475*255*385 |
|
|
WS-250D |
110/220 |
8.8 |
62 |
10-250 |
2 |
4 |
10 |
10-250 |
0.1-0.9 |
HF |
0.8 |
20.0 |
50/60 |
12 |
475*255*385 |
|
Taizhou Changda Welding Machine Manufacturing Co., Ltd is located in Taizhou, a beautiful coasted city of East Sea of Zhejiang, China. We are a hi-tech company and specialised in studying and manufacturing inverter welding machines.
We produce ARC WELDING, MIG WELDING, TIG WELDING, PLASMA CUTTER, BATTERY CHARGER AND SO ON. All of our products have got the certificates of ISO9001, CE, RoHS, LVD AND EMC.
Our products are widely used in machinery, metals, petrochemical pipelines, aerospace and electronic engineering industries. The products are sold to distant area such as America, Europe, Middle East and Southeast Asia and so on.
Now our products have won high appreciation among our clients because of the unique design, innovative structure, reliable performance, and convenient maintenance.
Our company advocates? Market-oriented, being honest and trustworthy; Leading technology service supremacy. Our company will afford top-ranking products, competitive price reliable quality and the best professional service for you. We warmly welcome your visiting to our company for instruction, cooperation and development.
