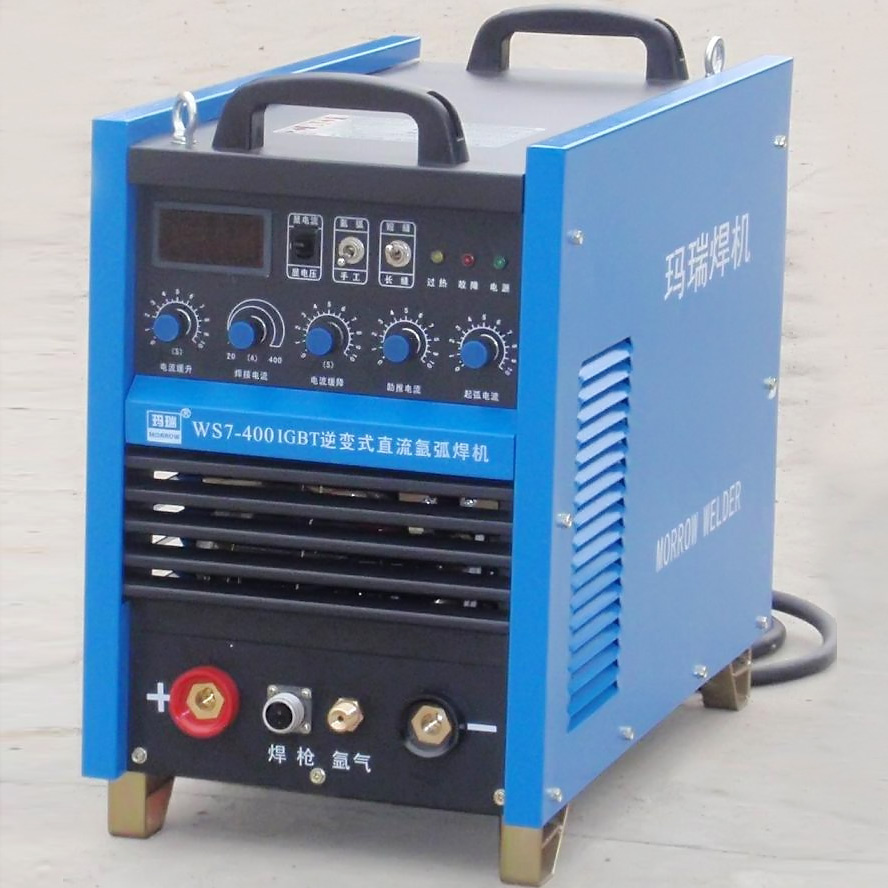

WS7 Series IGBT Inverter HF TIG Welder (WS7-400)
Product Specifications
| Prod Model: |
WS7-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
ARC Welders |
| Current: |
Inverter Current |
Product Description
Features
1. Adopt the soft switch technology, high efficiency, low power consumption
2. Automatic protection from overcurrent, overheat, over/under voltage
3. Support TIG welding and MMA welding
4. Up/down-slope of welding current continuously adjustable, pre-gas sending and delay gas sending
5. HF automatically strikes arc, and automatically extinguishes after the arc is successfully stroke
6. In TIG welding, the long/short seam switch can support the switch between continuous welding and discontinuous welding. The build-in circuit guarantees a good arc-ignition and crater filling, and endows the machine with such features as easy to start arc, arc heat concentrated, good gas protection result, etc.
7. In MMA welding, can be used together with all kinds of electrode with a diameter below 0.5mm. In TIG welding, can weld stainless steel, alloy steel, copper, silver, titanium
8. With arc-striking current adjustment switch, can easily adjust the arc-striking current, optimize the arc ignition effect. The pushing current adjustment knob can strengthen the arc force and prevent the welding electrode stuck to workpieces
9. Can be equipped with the distance control box to realize distance control, simplify the operation
10. Can be used in welding the stainless steel parts, pressure container and pipeline, realize TIG grounding and TIG covering once a time, greatly improve the working efficiency
11. A voltage fluctuation of ± 20% is allowable
|
|
WS7-315 |
WS7-400 |
WS7-500 |
|
Power source |
3-phase 380V/415V 50Hz |
|
Rated input capacity |
12.2KVA |
17.3 KVA |
23.7 KVA |
|
Rated input current |
18.6A |
26.3A |
36A |
|
Rated welding current |
315A |
400A |
500A |
|
Welding current |
315A 60%DE |
400A 60%DE |
500A 60%DE |
|
250A 100%DE |
315A 100%DE |
400A 100%DE |
|
Adjustment range of current |
20-315A |
20-400A |
20-500A |
|
Efficiency |
83% |
|
No-load voltage |
TIG |
40-50V |
|
MMA |
70-80V |
|
Current up/down-slope time |
0-10S |
|
Time for pre-gas sending |
1S |
|
Time for delay gas sending |
5S |
|
Dimensions (mm) |
500×260×360 |
550×260×360 |
|
Weight (Kg) |
35 |
40 |
55 |
|
Air switch |
32A |
32A |
40A |
|
Input cable (mm 2 ) |
3×4+1×2.5 |
3×4+1×2.5 |
3×6+1×4 |
|
Insulation class |
F |
|
Protection class |
IP21 |
Sichuan Morrow Welding Development Co., Ltd. (Chengdu Morrow Electronic Equipment Factory) is a high-tech enterprise specialized in research, development, production and sales of IGBT series inverter welding products. We established Morrow Inverter Power Research Institute to specially engage in research, development, and regeneration of inverter welding machine. We can develop and produce specialized products according to different requirements of different customers. We established ERP system. All of our products are produced in line with ISO9001: 2000 quality system certificate and passed "CCC" certificate as well as the CE certificate.
As one of the top 50 enterprises in China's welding products industry, Morrow have supplied products for such many projects, for example, Bird's Nest Project of 2008 Beijing Olympics, Three Gorges Project, Ertan Hydropower Station, Daya Bay Nuclear Power Station, Xiaolangdi Project, etc. Now, we have obtained the import-export operation right, and have successively exported products to Japan, India, Canada, Russia, Belarus, South Africa and Vietnam, etc.
We mainly produce the international-advanced IGBT inverter all-digital air plasma welding machine, all-digital welding machine, industrial-level welding machine. All of these machines have such features as small in size, light in weight, energy saving, high reliability, and good welding quality, and so on.
We have an excellent R&D team, so we have independent IPR for all of our products. Now, we have developed many kinds of world-advanced welding machines. At present, these products have received favorable report from many customers. The sales grow stably these years.
Now, we have developed 40 series and over 100 kinds of products. We have almost all kinds of products and can meet different requirements of different customers. Now, our products are mainly used in such industry as petrol, chemical engineering, machinery, shipbuilding, nuclear, power, metallurgy, railway, boiling, steel structure, aerospace, and so on.
In addition, we have developed a series of economic-type machines at present. These new products also adopt IGBT technology, but they are smaller, lighter and cheaper.
With the business motto of "Quality First, Performance First, and Service First", we are dedicated to offering ideal welding equipment for domestic and overseas customers.
