Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1000/Piece |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | WS98YV-2 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Performance: | Low Noise |
Material: | Copper |
Drive Mode: | Electric |
Configuration: | Stationary |
Power Source: | AC Power |
Type: | Piston |
Lubrication Style: | Lubricated |
Piston Type: | Closed |
Application: | Low Back Pressure Type |
Mute: | Not Mute |

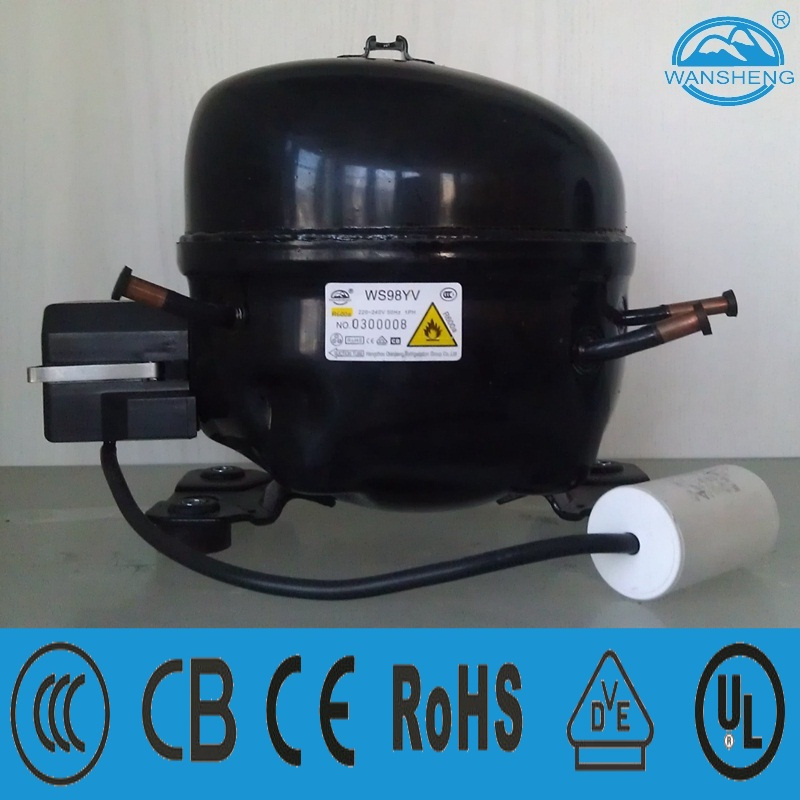

R600a WANSHENG Low Back Pressure (LBP) Compressor | ||||||||||
R600a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C | |||||||
Amb. Temp.: 32.2°C | Suction. Temp.: 32.2°C | |||||||||
Subcooling Temp.: 32.2°C | LBP ASHRAE | |||||||||
Model | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor (μF) | Running Capacitor (μF) | Starting Relay | Cooling Type |
WS series220-240V~50Hz | ||||||||||
WS98YV | 9.8 | 170 | 100 | 1/7 | 1.7 | RSCR | / | 4 | PTC | S |
