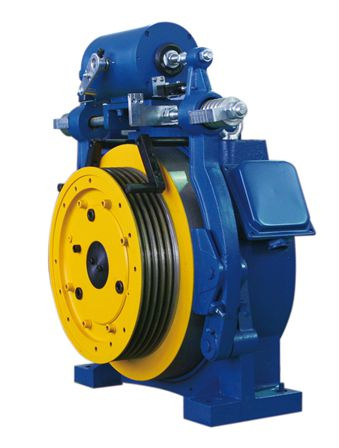

WYT-S Gearless Permanent Magent Synchronous Traction Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
===== Technical Data =====Voltage:AC380V
Suspension:2:1
ROPE:Single
Capacity:450kg~1150kg
Speed:0.5m/s~2.5m/s
Prot.Class:IP41
Ins.Class:F
=====overall dimensions and mounting dimensions=====
| Model | Type |
|
|
| Num | (mm) |
|
|
|
|
|
|
|
| Size(mm) |
| Capacity | Speed | Sheave | Pitch | Current | Motor Speed | Frequency | Power | Torque | Shaft Load | Weight |
| (kg) | (m/s) | (mm) | (mm) | (A) | (rpm) | (Hz) | (kW) | (Nm) | (kg) | (kg) | A | B | C | D | E | F | G |
| WYT- | S0.5A | 450 | 0.5 | φ400 | 4 | φ10 | 16 | 4.2 | 48 | 8 | 1.6 | 320 | 5500 | ≈450 | 140 | 207 | 79.5 | 357 | 78 | 33 | 417 |
| S1.0A | 1.0 | 7.7 | 96 | 16 | 3.2 |
| S1.5A | 1.5 | 11.2 | 144 | 24 | 4.8 |
| S1.6A | 1.6 | 12 | 153 | 26 | 5.1 |
| S1.75A | 1.75 | 12.4 | 168 | 28 | 5.6 |
| S2.0A | 2.0 | 14.5 | 192 | 32 | 6.4 |
| S2.5A | 2.5 | 17.5 | 240 | 40 | 8.04 |
| WYT- | S0.5B | 630 | 0.5 | φ400 | 4 | φ10 | 16 | 5.6 | 48 | 8 | 2.3 | 460 |
| S1.0B | 1.0 | 10.4 | 96 | 16 | 4.6 |
| S1.5B | 1.5 | 15.3 | 144 | 24 | 6.9 |
| S1.6B | 1.6 | 15.9 | 153 | 26 | 7.4 |
| S1.75B | 1.75 | 17.8 | 168 | 28 | 8.1 |
| S2.0B | 2.0 | 20.2 | 192 | 32 | 9.3 |
| S2.5B | 2.5 | 24.5 | 240 | 40 | 11.5 |
| WYT- | S0.5C | 800 | 0.5 | φ400 | 5 | φ10 | 16 | 6.8 | 48 | 8 | 2.8 | 550 | 170 | 235 | 79.5 | 390 | 108 | 28 | 450 |
| S1.0C | 1.0 | 12.5 | 96 | 16 | 5.5 |
| S1.5C | 1.5 | 18.2 | 144 | 24 | 8.3 |
| S1.6C | 1.6 | 19.8 | 153 | 26 | 8.8 |
| S1.75C | 1.75 | 20.6 | 168 | 28 | 9.7 |
| S2.0C | 2.0 | 24 | 192 | 32 | 11 |
| S2.5C | 2.5 | 28.8 | 240 | 40 | 13.8 |
| WYT- | S0.5D | 1000 | 0.5 | φ400 | 5 | φ10 | 16 | 7.8 | 48 | 8 | 3.4 | 665 |
| S1.0D | 1.0 | 14.9 | 96 | 16 | 6.7 |
| S1.5D | 1.5 | 22.2 | 144 | 24 | 10 |
| S1.6D | 1.6 | 23.6 | 153 | 26 | 10.7 |
| S1.75D | 1.75 | 24.3 | 168 | 28 | 11.7 |
| S2.0D | 2.0 | 28.2 | 192 | 32 | 13.4 |
| S2.5D | 2.5 | 34.6 | 240 | 40 | 16.7 |
| WYT- | S0.5E | 1150 | 0.5 | φ340 | 8 | φ8 | 12 | 9.3 | 56 | 9.4 | 4 | 675 | 170 | 235 | 87 | 390 | 108 | 28 | 450 |
| S1.0E | 1.0 | 17.2 | 113 | 18.84 | 8 |
| S1.5E | 1.5 | 26 | 168 | 28 | 11.9 |
| S1.6E | 1.6 | 26 | 180 | 30 | 12.7 |
| S1.75E | 1.75 | 28.3 | 198 | 33 | 14 |
| S2.0E | 2.0 | 33 | 226 | 37.7 | 16 |
| S2.5E | 2.5 | 41.8 | 281 | 46.8 | 19.8 |
| WYT- | S0.5AL | 450 | 0.5 | φ480 | 4 | φ10 | 16 | 4.2 | 40 | 6.6 | 1.6 | 385 | 140 | 207 | 79.5 | 357 | 78 | 33 | 417 |
| S1.0AL | 1.0 | 7.7 | 80 | 13.3 | 3.2 |
| S1.5AL | 1.5 | 10.8 | 119 | 19.9 | 4.8 |
| S1.6AL | 1.6 | 12 | 127 | 21.2 | 5.1 |
| S1.75AL | 1.75 | 12.4 | 139 | 23.2 | 5.6 |
| S2.0AL | 2.0 | 14.5 | 159 | 26.5 | 6.4 |
| S2.5AL | 2.5 | 16.8 | 199 | 33.2 | 8.04 |
| WYT- | S0.5BL | 630 | 0.5 | φ480 | 4 | φ10 | 16 | 5.6 | 40 | 6.6 | 2.3 | 550 | 170 | 235 | 79.5 | 390 | 108 | 28 | 450 |
| S1.0BL | 1.0 | 10.4 | 80 | 13.3 | 4.6 |
| S1.5BL | 1.5 | 15.3 | 119 | 19.9 | 6.9 |
| S1.6BL | 1.6 | 15.9 | 127 | 21.2 | 7.4 |
| S1.75BL | 1.75 | 17.8 | 139 | 23.2 | 8.1 |
| S2.0BL | 2.0 | 20.2 | 159 | 26.5 | 9.3 |
| S2.5BL | 2.5 | 24.5 | 199 | 33.2 | 11.5 |
| WYT- | S0.5CL | 800 | 0.5 | φ480 | 5 | φ10 | 16 | 6.8 | 40 | 6.6 | 2.8 | 665 |
| S1.0CL | 1.0 | 12.5 | 80 | 13.3 | 5.5 |
| S1.5CL | 1.5 | 18.2 | 119 | 19.9 | 8.3 |
| S1.6CL | 1.6 | 19.8 | 127 | 21.2 | 8.8 |
| S1.75CL | 1.75 | 20.6 | 139 | 23.2 | 9.7 |
| S2.0CL | 2.0 | 24 | 159 | 26.5 | 11 |
| S2.5CL | 2.5 | 28.8 | 199 | 33.2 | 13.8 |
| WYT- | S0.5DL | 1000 | 0.5 | φ480 | 5 | φ10 | 16 | 8.2 | 40 | 6.6 | 3.3 | 800 |
| S1.0DL | 1.0 | 14.4 | 80 | 13.3 | 6.7 |
| S1.5DL | 1.5 | 21.7 | 119 | 19.9 | 10 |
| S1.6DL | 1.6 | 22.8 | 127 | 21.2 | 10.7 |
| S1.75DL | 1.75 | 24.7 | 139 | 23.2 | 11.7 |
| S2.0DL | 2.0 | 28 | 159 | 26.5 | 13.3 |
| S2.5DL | 2.5 | 34.6 | 199 | 33.2 | 16.7 |
| Prod Model: |
WYT-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Driving System |
| Load Capacity: |
450kg~1000kg |
| Persons: |
6-13 Persons |
| Speed: |
0.5m/S-2.5m/S |
About us
Establisehd in 1989, Bluelight is a leading manufacturer of elevator control systems and gearless permanent magnet sychronous machines. It is member of China Elevator Association and an ebterprise certified by ISO9001.
From 1998, Shenyang Bluelight started development of gearless permanent magnet sychronous machines. With a R&D team leading by two doctors experts in motor, Bluelight cooperated constantly with domestic universities, overseas well-known companies for exchange of technolongy and successfully developed the first gearless permanent magnet sychronous machine in October, 2000. After several technical improvements, Bluelight passed the national EMC testing in July, 2001 and successfully obtained certification. Meanwhile, the machines had been lanched into mass production, Shenyang Bluelight has granted several patents of gearless permanent magnet sychronous machines and owned all the knowledge property rights.
Nwadays, Bluelihgt gearless machines are widely used in China and some of products have been sold to Europ, America, Korea, Japan, Taiwan, Middle East, Southeast Asia etc. Relying on the excellent characteristics such as low noise, low vibration, smooth and comformable running etc., Bluelight gearless machines are being recongnized by more and more elevator manufacturers.
