Product Specifications
| Prod Model: |

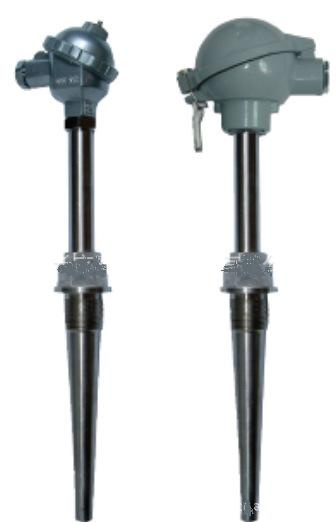

WZPN-631, WZPN2-631 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thermal Resistance: |
Wear-Resistant Type, with Tapered Protection Tube |
Product Description
In some special occasions, such as chemical plants, smelters, thermal power plants and so on, special material and structure thermal resistance and thermocouple are required.
There are three kinds of wear resistant coatings. The material hardness is HRC58-62, temperature range is 0-600centigrade, 0-800centigrade(A), 0-1000centigrade(B). Corrosion-resistant coatings have good anti-corrosion performance. In addition to melt molten lithium, potassium, sodium, hydrofluoric acid, chlorine trifluoride, it almost can resist all of chemical media. It has long service life within 0-250 centigrade. If fixed thread is corrosion-resistant, then the thread can not work under pressure environment.
|
name |
Indexing NO. |
range(centigrade) |
Allowable error t(centigrade) |
|
platinum resistance |
Pt100 |
-200-+420 |
A or B class |
|
Copper resistance |
Cu50 |
-50-+100 |
±(0.3+6X10-3 t ) |
Models
W Z * -* * *
|
W |
Temperature meter |
|
Z |
Thermal resistance |
|
* thermocouple material |
P)Pt |
|
C)Cu |
|
* install and fixed type |
1)without fixed device |
|
2)fixed thread type |
|
3)movable flange |
|
4)fixed flange type |
|
6)fixed thread tapered protect tube type |
|
* junction box type |
2)splash proof type |
|
3)waterproof type |
|
None uniform design: socket type, small junction box type |
|
* design series number |
0)ø16mm protecting tube |
|
1)ø12mm protecting tube |
|
None uniform design: protecting tube of various specifications |
