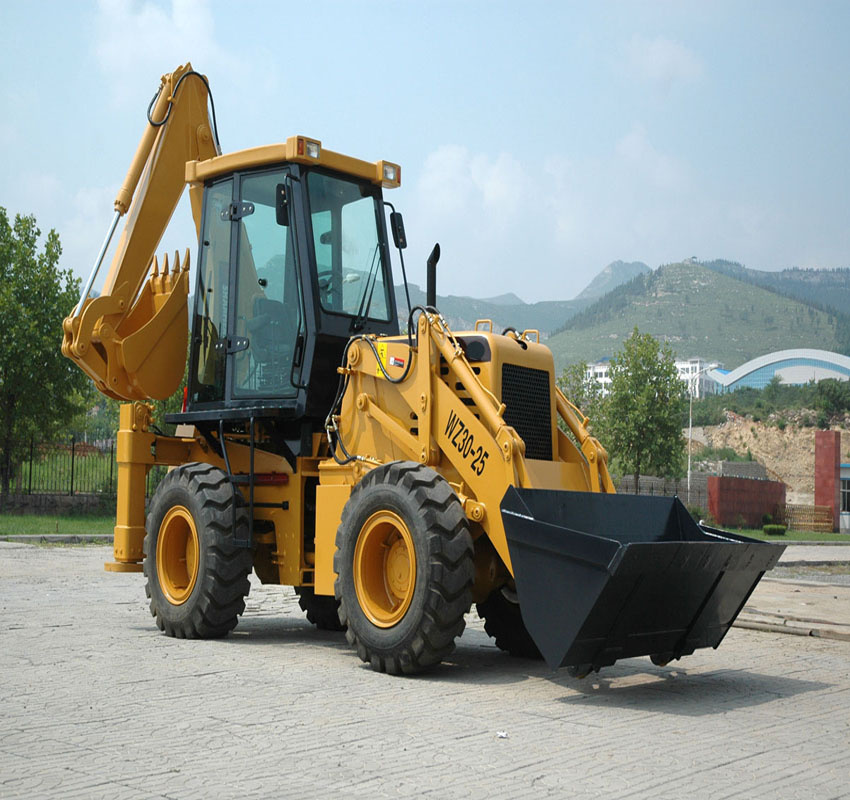

WZY30-25 Backehoe Loaders
Product Specifications
| Prod Model: |
WZY30-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wheel Excavator |
| Size: |
Medium-Sized |
| Condition: |
New |
| Certification: |
ISO9001: 2000 |
Product Description
Engine Model: CUMMINS 6BTA3.9-C100
Type: Four-stroke, Direct Injection type, Turbo Charge
Rated power: 74kw
Rated speed: 2200 rpm
Excavating Operation Specification
Backhoe bucket capacity: 0.3m3
Backhoe turning angle (Left): 90
Backhoe turning angle(Right: ) 90
Max. Digging radius: 5482mm
Max. Dump height: 3738mm
Max. Outreach: 1084mm
Max. Digging radius: 5482mm
Bucket's max. Rotating angle: 163.2
Max. Digging depth: 4340mm
Loading Operation Specification
Rated bucket capacity: 1.0m3
Rated lifting force: >25kN
Max. Dump height: 2612mm
Max. Dump reach: 727mm
Dig depth: 191mm
Drawback angle at ground POS. 40
Bucket upward angle: 63
Max. Breakout force: >40kN
Rated lifting force: >25kN
Rise Time: 5.1s
Fall time: 4.9s
Tilting time: 0.9s
Transmission System
Max. Traction power: 42kN
Min. Turning radius: 4300mm
Forward/Backward gear I: 5.8/7.0 km/h
Forward/Backward gear II 10.5/12.6 km/h
Forward/Backward gear III 20.1/24.3 km/h
Forward/Backward gear IV 40.2/48.6 km/h
Tansportation Dimension
Operating weight: 7400KGS
Total length: 7070mm
Overall height (to top of boom) 3420mm
Overall width 2350mm
Wheel base 2150mm
Cab height 2700mm
Shandong huanhai machinery group Co., Ltd is one of largest machineries manufacture in China. It consisted of 3 factories, with more than 800 workers and engineers.
We speclized in manufacturing and exporting of all kinds agricultural machineries, construction machineries and plastics machineries. Our factories have more than 20 years manufacturing experience and can supply all kinds of high quality machinery and equipment. Many of our products have passed CE approval and are exported to European and American market.
We pay much attention to innovation of products, also we adopt all usuful suggestions from customers to improve our products, we can desigh and arrange production according to your reasonable suggestions.
Our main products is as below:
(1 ) agricultrual machineries:
15tpd /20tpd/30tpd/50tpd/70tpd/100tpd/150tpd rice milling plant
TF40 TF50 TF70 series maize mill
Sh41 sh81 sh101 sh121 sh151 sh181 gn12 gn15 power tiller
15HP 20HP 25HP 30HP 35HP 45HP 55HP 72HP 82HP 100HP 120HP four wheel tractors
Yl95A yl100 yl125 yl130 yl150 yl160 oil press
2t to 100t oil pre--pressing plant, solvent extraction plant, refinery plant.
1000ton per year charcoal briequette plant
(2) construction machineries:
Zl08f zl10f wheel loaders
Zl12 f zl20f wheel loaders
Zl30f zl50g zl60g wheel loaders
SD13 SD16 SD22 SD32 bulldozers
Mg135 mg165 mg185 mg200 mg220 motor graders
1.6t / 3.5t / 5.5t / 7t / 13t / 21t / 22t / 32t crawler excavators
(3) plastics machineries:
PE/PVC double wall corrugated pipe extrusion line 75-500mm
PP/pet strap band extrusion line 8-20mm
XPS board extrusion machine
WPC profiles extrusion line
PP-r cold and hot water pipe extrusion line
...
With our continued efforts now our all kinds of machineries and equipments have been exported to Turkey, Mexico, Russia, Ukraine, Iran, u. A. E, Saudi arab, Australia, India, Peru, Chile, sri-lanka, South Africa, Benin, Madagascar, Tanzania, Syria, Egypt etc more than 30 countries.
