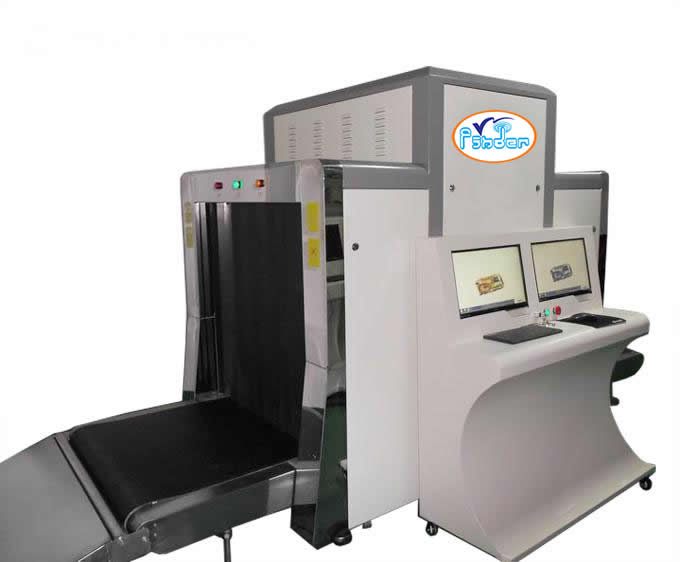

X-ray Baggage Scanner Security Inspection Device for Station

Product Specifications

Prod Model:	VX5030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Industry Alarm
Usage:	Auto
Name1:	X-ray Scan Device
Name2:	X Ray Luggage Scanning System
Tunnel Size:	500*300
Customied Logo:	Accept

Product Description

x-ray baggage scanner security inspection device for station



Product Description

FEATURE:
1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray:Transmit ray under automatic control, avoids the miss.
4. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
5. Eagle-eye:Could be expediently observing enlargement area.
6. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA:
Tunnel Size:                    1000(W)×1000(H)mm
Conveyor Speed:                 0.22 m/s
Conveyor Max Load:              200 kg
Single inspection dosage           < 1µGy
Wire Resolution:                 0.1mm metal line
Steel Penetration:                 30MM armor plate
Film Safety:                     For ISO 1600
Maximum leakage radiation        <0.3µGY/H
X-RAY GENERATOR:
Orientation:                        Vertically Upward
Tube Current:                       0.4~1.2MA(adjustable)
Anode Voltage:                      100~160 KV(adjustable)
Angle:                             80°
Generator cooling/working periods       Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM:
X-ray Sensor:                      L Type Photo-Diode array detector 12bit.
Monitor:                          High resolution 17inch color LCD display.
Color Quality:                     24 Bit real colors.
Edge Enhancement:                 Object contour edge is more distinct.
Super Image Enhancement:           Image detail is more distinct.
High penetrate strength display:       Increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly.
Low Penetrate strength Display:       increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly.
Magnifier:                          Function of partial enlargement
Brightness/Dimming:                  Increase brightness of image/decrease brightness of image.
Image recurrence:              Display previous twenty image and process any one of them.
Image restoration:              Restore image to initial status at the time of stopping conveyor
Image storing:                 Real Time store any image and process it in operation status.

MULTI-ENERGY FUNCTION:
Multi-energy color:            Display organic material for orange, display inorganic material for blue, and display mixture for green.
High energy / low energy: switch to display two energy type, high energy stands for metal etc. low energy stands for nonmetallic.
Auxiliay function for drugs & explosives: Help to detect such dangerous material as drugs& explosives etc.
Audible & visible alarm:  Give sound and visible signal when conforming to condition.
ETHERNET TCP/IP FUNCTION
OPERATING ENVIRONMENT:

Storage Temperature:             -20ºC to 60ºC Operating Temperature:           0ºC to 45ºC Relative Humidity:               20 to 95% non-condensing System Power:                  220 VAC (±10%) 50±3HZ Power wastage:                1.5 KW (Max) Noise:                        <65DB

Packaging & Shipping
we takes strong ploywooden case
shipment can takes of By sea

Our Services
our sales team can give feedback within 12 hours after receive your inquiry
