Analog/Digital Imaging Unit
X-ray Flat-panel Detector

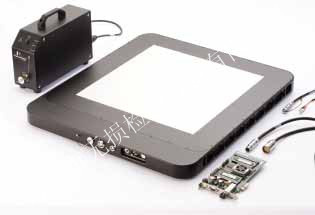

CP series X-ray Flat-panel Detector
Provids a total digital imaging solution for conventional NDT. It is based on amorphous silicon TFTs, generating high-resolution corrected radiographic images within 1.4 seconds, immediately avalialbe for futher processing at system level.
Model 1313 2520 2020(0820)
Pixel Area 13.05*13.05mm 19.5*24.4mm 204.8*204.8mm
Pixel Matrix 1024*1024(1*1) 1536*1920 1024*1024
Pixel Pitch
Limit Resolution Ratio 3.94lp/mm 3.94lp/mm 3.94lp/mm
Energy Range 40kVp-225kVp 40kVp-320kVp 40kVp-215MeV
A/D 14bits 14bits 14bits
Frame Rate 10fps(1*1) 1-7.5fps(1*1) 1-7.5fps(1*1)
30fps(2*2) 15-30fps(2*2) 30fps(2*2)
Operating Humidity 10-90% 10-90% 10-90%
Weight 1.68kg 4.38kg 10.8kg
Screen DRZ+, CSL DRZ+, CSL DRZ+, CSL
Software TRP(Chinese/English) TRP(Chinese/English) TRP(Chinese/English)
