X-Ray Pipeline Crawlercan detect the welding line of long pipeline.high radiographic quality&imaging sensitivity&efficiency

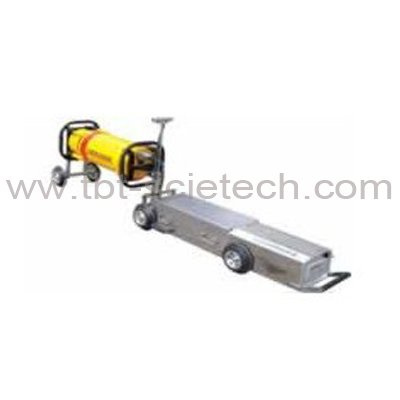

X-Ray Pipeline Crawler
I. Product Description
The X-Ray pipeline crawler include the special part that can detect the welding line of
long pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality,
high imaging sensitivity, low failure rate and high work efficiency.
The X-ray pipeline crawlers have differential driving and vibration absorbers. The chassis
of the X-ray pipeline crawlers can be moved in the pipeline steadily without off center
running and overturning. The X-ray pipeline crawlers can be moved in the pipeline with great
efficiency because it is controlled by PLC with protecting it from blocking and undervoltage.
The X-ray pipeline crawler is easy to be separated into several parts and then to be
put together, so it is easy to carry. You can change the exposure parameter and make
the X-ray pipeline crawler move, stop and have an exposure with the exterior controlling
source. The X-ray pipeline crawlers are easy to operate.
II. Product Specification:
Type |
X-PCD2000-1 |
X-PCD2000-2 |
X-PCD-3 |
Penetration Pipe Diameter |
300-1200 |
273-800mm |
159-400mm |
Formal Size |
1.0*0.25m |
0.85*0.2m |
1.0*0.15m |
Total Weight |
50kg |
45kg |
30kg |
Total Weight |
50kg |
45kg |
30kg |
Motor Power |
12W (continuous) |
120W (continuous) |
80W (continuous) |
Battery Power |
24V 14Ah |
24V 14Ah |
24V 14Ah |
Crawling Speed |
15-18m/min |
15-18m/min |
15-18m/min |
Crawling Slope |
30° |
30° |
30° |
Swerving Radii |
5D |
5D |
10D |
Radiative Source |
Ir-192(5-100ci) |
Ir-192(5-100ci) |
Ir-192(5-100ci) |
Se75(5-100ci) |
Se75(5-100ci) |
Se75(5-100ci) |
Radiative Angle |
45° |
45° |
45° |
Time of Exposure |
30 Minutes
(continuous) |
30 Minutes
(continuous) |
30 Minutes
(continuous) |
Time of Delay |
30s |
30s |
30s |
Positioning Source |
200mci Cs 137 |
200mci Cs 137 |
200mci Cs 137 |
Crawling Distance |
5Km * 2 |
3Km * 2 |
3Km * 2 |
Relative Humidity |
< 70° |
< 70° |
< 70° |
Environment Humidity |
10-90%RH (incondensable) |
10-90%RH (incondensable) |
10-90%RH (incondensable) |
We can make and manufacture products according to customer specific needs.
provide best and professional service for you, pls contact with us freely;
Usage field: NDT products
Product name: X-Ray Pipeline Crawler
