Product Specifications
| Prod Model: |
AT10080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optional: |
Tip Function |
| Operation Software: |
Friendly |
| Tunnel Size: |
1000(W)*800(H)mm |
| Fuction: |
Detecting Weaons on Bags |
| Scanning Image: |
Color |
| Technical Traingin: |
Providing |
| Software: |
Multi-Language Support |
| Dispaly: |
17 Inch Monitor |
| Cooperation Way: |
Agent/, Resellor |
| Warranty: |
12 Months |
Product Description
X ray systems to detect explosives and other dangerous devices
SECU SCAN X-ray inspection systems offer the highest image quality in the industry, a vital factor in the search for explosives, weapons and contraband in baggage, mail and freight. Around the globe, our X-ray inspection equipment plays a vital roles in aviation security, customs inspections and in protecting national critical infrastructure.
Technology Features
1. Multi-Energy penetration system
2. New x-ray protection technology
3. Multi-functions image processing system
4. EI-TIP( Threat Image Projection) function
5. Shiny clear images
6. Any selection of the image magnified area
7. Collect the high-speed parallel of detection data
8. Movable machine with integrated structure
9. Sophisticated design with multi-functions operator interface
10. Support JPG&BMP image transformation format to USB
General Specification
Tunnel Size: 1000(W)*800(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg
Wire Resolution: 38AWG
Penetration: 38mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage <0.1 μ Gy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 100, 000 pictures in real time
Zoom: 32 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: Switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data
Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
Operation Power: 220VAC(± 10%)50± 3Hz
Power Consumption: 1.0 KW (max), 1.0KW(working)
Noise: <58dB
Shenzhen Security Electronic Equipment Co., Ltd (SEE), is a high-tech company integrating R&D, manufacturing, engineering, training and services.

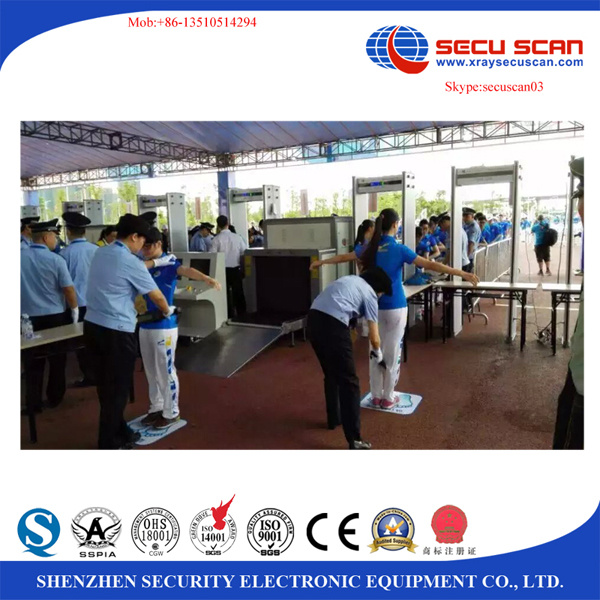

SEE gradually establishes a very comprehensive product range covering X-ray machines with different tunnel size X-ray machines, Walk through Metal Detector, Hand-held Metal Detector, Liquid Scanner, Explosive auto detection system, under vehicle system and etc. SEE security systems have been used in different countries and regions in airports, seaports, customs, railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.
With ISO9001 management system, SEE always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements.
With global marketing strategy, SEE provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' Expectations. SEE registered its own trade mark SECUSCAN, which are well known in national market.
SEE is great help for public security solution.
