Product Specifications
| Prod Model: |
Mo30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X-ray: |
Machine |
| Current: |
30 Ma |
| Voltage: |
34 Kvp |
| Time: |
2 S |
| Power Supply Voltage: |
180~240V |
| Frequency: |
50Hz |
| Power: |
.3kVA(Not Lower Than 1.3kVA) |
| Range Of The Timer: |
0.4~2 S |
| Film Size: |
127mm× 178mm |
| The Movement Of Camera Head Mounting. (V: |
630 Mm |
| Group: |
Adult |
| LCD Display: |
With LCD Display |
| Type: |
X-ray Machine |
| Kind: |
X-ray Unit for Mammography |
| Certification: |
ISO9001 |
| Type Of Operating Light: |
Without |
| Anesthesia: |
Without |
| Source: |
Without |
Product Description

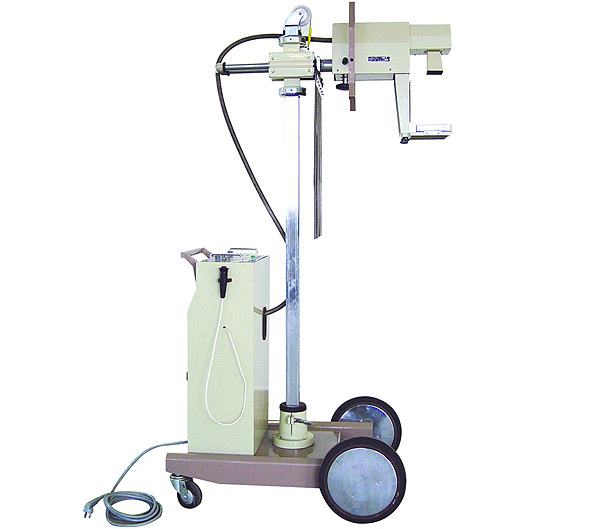

X-RAY UNIT FOR MAMMOGRAPHY
GENERAL
It is used to diagnose early mamma pathological changes
Using the Mo. Target X-ray tube can show the pathological changes details.
A nipple areola cuticles fat galactophore canals glandular tissue connective tissue and blood vessels can be seen in the picture.
It has high correctness for distinguishing benign tumor and malignant tumor.
It can be moved to sickroom to photograph beside bed.
The unit can also be used to find foreign matters in human body to do nondestructive inspection of right metal and nonmetal materials.
MAIN TECHNICAL PARAMETER
Main character
| Max rated capability Current | 30 mA |
| Voltage | 34 kVp |
| Time | 2s |
| Power supply Voltage | 180~240V |
| Frequency | 50Hz |
| Power | 1.3kVA(not lower than 1.3kVA) |
| Range of the timer | 0.4~2 s |
| Film size | 127mm× 178mm |
The movement of camera head mounting.
(vertical) | 630mm |
Adapt to different part of human
(rotation) | ± 180° |
Shockproof, single focus and bridge rectification
Max rated capability Current: 30 mA
Voltage:34 kVp
Time: 2 s
Power supply Voltage: 180~240V
Frequency: 50Hz
Power:1.3kVA(not lower than 1.3kVA)
Range of the timer: 0.4~2 s
Film size:127mm× 178mm
The movement of camera head mounting.
(vertical):630 mm
Adapt to different part of human
(rotation): ± 180°
The camera head mounting horizontal range: 160 mm
Rotating angle of the module of the camera head mounting and the pole.
180°
X/
Specification of X-ray tube/focal spot value
XD7 1.05/35 1mm× 1 mm
Stationary anode, single focus
/
Transport dimension: 76× 103× 202(cm)
Gross Weight: 200kg
