Product Specifications

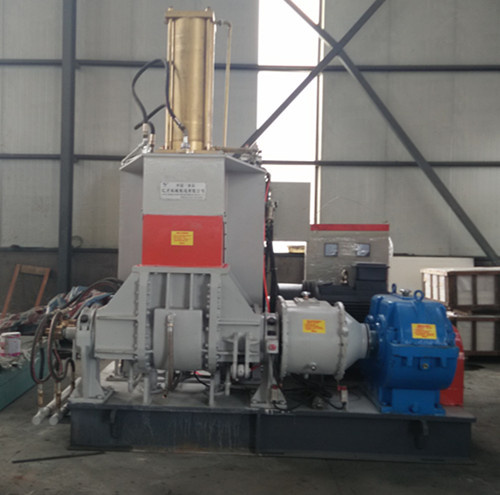

Prod Model: |
X(S)N 20*32 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
380V |
Weight: |
<50 tons |
Type: |
General Rubber Machinery |
Type Of General Rubber Machinery: |
Material Processing Machine |
Type Of Tire Machinery: |
Rubber Regeneration Machinery |
Power: |
10~100KW |
Using Life: |
≥15 Years |
Warranty: |
1 Year |
Color: |
White |
Product Description
Why choose our company?
1. AAA grade credit enterprise.
2. With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.
3. Exported to more than 20 contries with good quality. Example: The good year company in Chile...
Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.
Why choose our this machine?
1. With completely sealed condition, materials are mixed or plasticized under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
3. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
4. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam-heating effect and fit in with the needs of plastics and rubber processing technology.
5. Feeding from back door on the frame(or separate top door) is convenient ofr continuous process operation in production line. The mixing chamber is able to turn forward by 140 around th front rotors to discharge and is easy for changing pigments and cleaning the chamber.
6. Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.
type | X(S)N-3×32 | X(S)N-10×32 | X(S)N-20×32 | X(S)N-35×30 | X(S)N-55×30 | X(S)N-75×30 | X(S)N-110×30 | X(S)N-150×30 |
Total Volume of kneading chamer | L | 8 | 25 | 45 | 75 | 125 | 180 | 250 | 325 |
Total volume of mixing chamber | L | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 |
Driving motoal power | KW | 5.5 | 15 | 30 | 55 | 75 | 110 | 185 | 220 |
Tipping motor power | KW | 0.55 | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 |
Tipping angle | | 135° | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
Rotational speed of the rotor(front\back) | r/min | 0~60,32/24.5 | 30/23.5 | 30/25 | 30/24.5/30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
Flow rate of compressed air | Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Flow rate of compressed air | M3/min | ≥ 0.3 | ≥0.5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥1.5 |
Pressure of cooling water (rubber mixing) | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Pressure of heated steam(Plastication) | Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
Overall dimensions(LXWXH) | MM | 1660×960×1750 | 2580×1300×2280 | 2630×1520×2550 | 3200×1900×2945 | 3360×1950×3050 | 3760×2143×31350 | 4075×2712×3580 | 4200×3200×4000 |
Weight | Kg | 2000 | 3300 | 4500 | 6500 | 7200 | 10000 | 14500 |
Qingdao Huicai Machine Manufacture Co., Ltd. is a joint-stock enterprise founded based on former Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, it has over ten years' history in manufacturing rubber machinery. It is a specialized manufacturer integrating research and manufacture of various specifications of plate press, rubber mixing mill etc. Rubber machinery and tyre machinery. Due to its rich technical force, advanced manufacturing technology, complete test means and quality after-sales service, the company enjoys good reputation in this industry of China. Its products enjoy a very high reputation in the domestic and international market.
Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.
Our company will continue to persist in the principle of "Win by Excellence, Credit first, Customer Oriented" and considerate and best after-sales service. We sincerely welcome worldwide customers come to our company for negotiation, and invite people with lofty ideals to join us to create great undertaking together.
