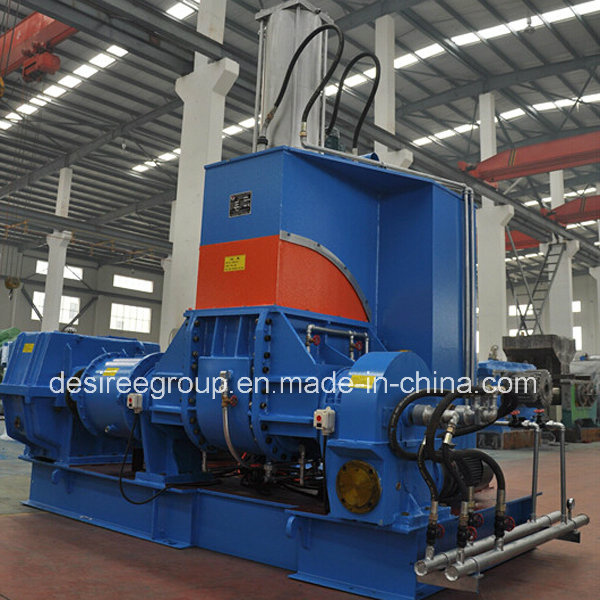

X (S) N-55 Rubber Kneader Machine/Banbury Rubber Kneader

Product Specifications

Prod Model:	X(S)N-55x30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Type Of Tire Machinery:	Rubber Regeneration Machinery
Weight:	<50 tons
Power:	10~100KW
Voltage:	380V
Using Life:	≥15 Years
Warranty:	1 Year
Name:	Rubber Kneader
Total Volume Of Mixing Cham:	125L

Product Description

X (S) N-55 Rubber Kneader Machine/Banbury Rubber Kneader

Function:
Mainly used for plasticating and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, and used in the mixing of various low glue degree materials.

Technical Parameters:

Model No.	X(S)N-35×30	X(S)N-55×30	X(S)N-75×30	X(S)N-110×30
Total volume of mixing chamber(L)	75	125	170	250
Working volume of mixing chamber(L)	35	55	75	110
Driving motor power(kW)	55	75	110	185
Tilting motor power(kW)	2.2	2.2	4	5.5
Tilting angle(°)	140	140	140	140
Rotational speed of the rotor (front /rear)(r/min)	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air(MPa)	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Capacity of compressed air(m3/min)	≥0.9	≥1.0	≥1.0	≥1.5
Pressure of cooling water (rubber mixing )(MPa)	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of heating steam (plastics mixing )(MPa)	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Dimensions(L * W *H)(mm)	3200*1900*2950	3230*1927*2958	3325*2615*3105	4075*2712*3580
Gross weight(t)	~6.3	~7.1	~9.5	~14.9

Features:
1. Mixing chamber tilting type: hydraulic or motor drive
2. Rotor: two-wing/blade or four-wing/blade rotor
3. Rotor surface: plated with hard chrome, and polished treatment without any stick for rubber material
4. Rotor shafts end sealing: with good quality sealing and reasonable design
5. Gearbox reducer: use qualified and famous brand
6. PLC control: Omron brand or as requested by customer
7. Dust collector: available by requirement

Advantages:
1. Ronable design, tightly construction, occupying small area, installing convenience.
2. High efficiency of production,
3. Easy to operate.
4. Easy for cleaning the mixing chamber and replacing color material. The mixing chamber adopts close construction. Cooling & heating system is good.


Company Information

Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of high quality rubber machinery.

The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.

Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.


Warmly welcome to make a field inspection of our factory.
