X2 Type Metallized Polypropylene Capacitor
| Price: |
US $ 0.034-0.35/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
MKP-X2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electric: |
Metallised Polypropylene Film |
| Rated Voltage: |
275VAC 310VAC |
| Impulse Voltage Withstanding: |
2500VDC |
| Capacitance Range: |
0.0047 ~ 2.2 UF |
| Capacitance Tolerance: |
10% 20% |
| Dissipation Factor: |
0.3% Max at 10kHz and 25c |
| Operating Temperature: |
-40 ~ +105 |
| Type: |
Polypropylene Capacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
472 ~ 225 |
| Electrolyte: |
Polypropylene Film Capacitor |
| Tuning: |
Polypropylene Film Capacitor |
| Filter: |
Polypropylene Film Capacitor |
Product Description

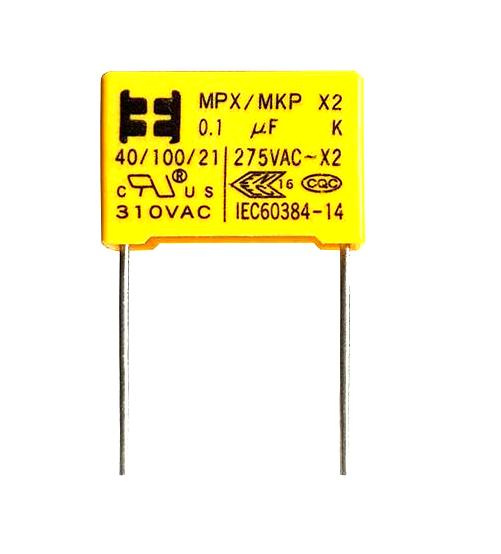

Metalized polypropylene film capacitor class X2
1.Features and uses
MKP-X2 are non-inductively wound with metalized polypropylene film as the dielectric / electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin ,the identical outer appearance , very low loss at high frequency ,suitable for high current. High insulation resistance ,long life due to self-healing effect ,withstanding 2.5KV impulse voltage ,class X2 ,as an aross-the-line type noise suppression capacitor ,and suitable for AC purpose .
2.Specifications
| Reference standard | GB/T 14472 (IEC60384-14) |
| Climatic category | 40/100/21 |
| Rated voltage(Ur) | 275/310VAC |
| Capacitance range | 0.001 ~ 2.2Uf |
| Capacitance tolerance | J:±5% K:±10% M:±20% |
| Voltage proof | 4.3Ur(5S) |
| Dissipation factor | ≤0.3%(10KHz ,20ºC) |
| Insulation resistance(IR) | Cr ≤0.33uF ≥15000MΩ |
| Cr > 0.33uF ≥5000S(20ºC,1min) |
3.Recognized standards and certificates
| Recognized organization | Recognized marks | Recognized standard | Certificates
series No | Rated Voltage |
| CQC |
| GB/T14472-1998
| CQC11001061901 | 275VAC |
| UL / CUL |
| UL60384-14 | E365151 | 310VAC |
| ENEC |
| DIN EN 60384-14(VDE0565-1-1):2014-04;
EN 60384-14:2013-08
IEC 60384-14(ed.4) | 2013045 | 275VAC |
4.Dimensions(unit:mm)
Capacitance
(UF) | P=7.5 | P=10 | P=15 | P=22.5 | P=27.5 |
| W | H | T | W | H | T | W | H | T | W | H | T | W | H | T |
| ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| 0.001 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0012 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0015 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0018 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0022 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0027 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0033 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0039 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0047 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0056 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0068 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.0082 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.01 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.012 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.015 | 10.5 | 9 | 4 |
|
|
|
|
|
|
|
|
|
|
|
|
| 0.018 | 10.5 | 9 | 4 | 13 | 9 | 4 |
|
|
|
|
|
|
|
|
|
| 0.022 | 10.5 | 9 | 4 | 13 | 9 | 4 |
|
|
|
|
|
|
|
|
|
| 0.027 | 10.5 | 11 | 5 | 13 | 9 | 4 |
|
|
|
|
|
|
|
|
|
| 0.033 | 10.5 | 11 | 5 | 13 | 11 | 5 |
|
|
|
|
|
|
|
|
|
| 0.039 | 10.5 | 12 | 6 | 13 | 11 | 5 |
|
|
|
|
|
|
|
|
|
| 0.047 | 10.5 | 12 | 6 | 13 | 11 | 5 |
|
|
|
|
|
|
|
|
|
| 0.056 |
|
|
| 13 | 11 | 5 | 18 | 11 | 5 |
|
|
|
|
|
|
| 0.068 |
|
|
| 13 | 12 | 6 | 18 | 11 | 5 |
|
|
|
|
|
|
| 0.082 |
|
|
| 13 | 12 | 6 | 18 | 11 | 5 |
|
|
|
|
|
|
| 0.1 |
|
|
| 13 | 12 | 6 | 18 | 11 | 5 |
|
|
|
|
|
|
| 0.12 |
|
|
|
|
|
| 18 | 12 | 6 |
|
|
|
|
|
|
| 0.15 |
|
|
|
|
|
| 18 | 12 | 6 | 26.5 | 15 | 6 |
|
|
|
| 0.18 |
|
|
|
|
|
| 18 | 13.5 | 7.5 | 26.5 | 15 | 6 |
|
|
|
| 0.22 |
|
|
|
|
|
| 18 | 13.5 | 7.5 | 26.5 | 15 | 6 |
|
|
|
| 0.27 |
|
|
|
|
|
| 18 | 14.5 | 8.5 | 26.5 | 16 | 7 |
|
|
|
| 0.33 |
|
|
|
|
|
| 18 | 16 | 10 | 26.5 | 16 | 7 |
|
|
|
| 0.39 |
|
|
|
|
|
| 18 | 19 | 11 | 26.5 | 17 | 8.5 |
|
|
|
| 0.47 |
|
|
|
|
|
| 18 | 19 | 11 | 26.5 | 17 | 8.5 | 32 | 18 | 9 |
| 0.56 |
|
|
|
|
|
|
|
|
| 26.5 | 18.5 | 10 | 32 | 18 | 9 |
| 0.68 |
|
|
|
|
|
|
|
|
| 26.5 | 18.5 | 10 | 32 | 18 | 9 |
| 0.82 |
|
|
|
|
|
|
|
|
| 26.5 | 22 | 12 | 32 | 20 | 11 |
| 1.0 |
|
|
|
|
|
|
|
|
| 26.5 | 22 | 12 | 32 | 20 | 11 |
| 1.2 |
|
|
|
|
|
|
|
|
|
|
|
| 32 | 22 | 13 |
| 1.5 |
|
|
|
|
|
|
|
|
|
|
|
| 32 | 22 | 13 |
| 1.8 |
|
|
|
|
|
|
|
|
|
|
|
| 32 | 24.5 | 15 |
| 2.2 |
|
|
|
|
|
|
|
|
|
|
|
| 32 | 28 | 14 |
| 2.7 |
|
|
|
|
|
|
|
|
|
|
|
| 32 | 33 | 18 |
| 3.3 |
|
|
|
|
|
|
|
|
|
|
|
| 32 | 33 | 18 |
| 3.9 |
|
|
|
|
|
|
|
|
|
|
|
| 32 | 37 | 22 |
| 4.7 |
|
|
|
|
|
|
|
|
|
|
|
| 32 | 37 | 22 |
Note :we can offer your specific demand by technology treaty .
