Product Specifications
| Prod Model: |
X58-1366 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset: |
Intel X58+Ich10 |
| CPU: |
I7 |
| Size: |
280mm X 216mm |
| Shipping Time: |
2-4 Working Days |
| Shipping Way: |
DHL /UPS / FedEx |
| Origin Of Place: |
Shenzhen ,China |
| Products Logo: |
for Your Optional |
| Main Chipset: |
Intel |
| Structure: |
ATX |
| Memory: |
DDR3 |
| CPU Socket: |
LGA 1366 |
Product Description

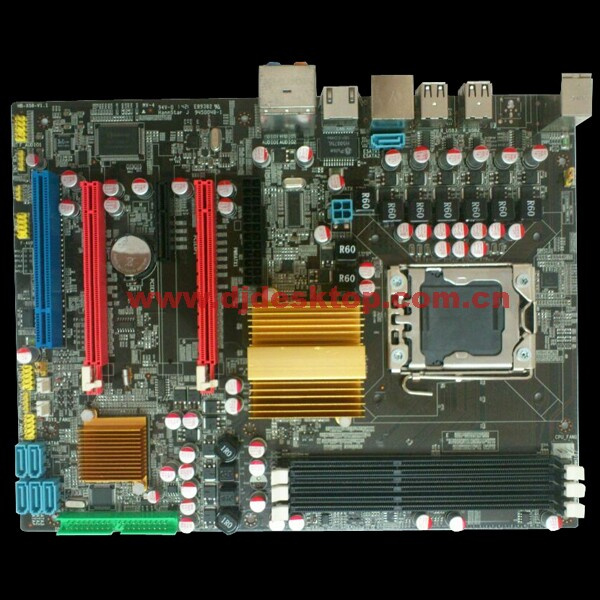

X58 Chipset 1366 Socket Support 3*DDR3 Motherboard support I7 processor
1. Intel X58+ICH10 Chipset, LGA 1366, Supports I7 Processor
2. Supports 3*DDR3 1600/1333/1066MHz memory, Dual Channel, BIGGEST MEMORY 3*4GB
3.5*SATA, 6*USB2.0, 1*VGA, 2*PCI Express x16, 1*PCI Express x8, 1 * PCI Compatibility PCI2.3.
4. Inbuilt 10/100/1000 Mbit
CPU
SUPPORT PROCESSOR LAG1366 SOCKET, Intel Core i7 PROCESSOR
Chipset
Northbridge: Intel X58 Express Chipset
Southbridge: Intel+ICH10
Memory
SUPPORT DDR3 1066/1333/1600 DOUBLE CHANNEL.
SUPPORT 3*240 PIN DDR3 SLOT, BIGGEST MEMORY 3*4GB
Sound Card
On board HD AUDIO, support 8 channel output (AUDIO1/2)
LAN Card
Inbuilt 10/100/1000 Mbit
Expansion Slot
2 * PCI Express x16
1 * PCI Express x8
1 * PCI Compatibility PCI2.3
SATA Slot
5 X Serial ATA2 (Max Speed 300MB/S)
IDE Port
1 X IDE CAN CONNECT TWO IDE DEVICES, SOUPPORT UDMA66/100/133
I/O Port
6 X USB 2.0 (2 inbuilt)
1 X Serial Port, compatible high speed 16550 UART MODEL
1 X PS/2 keyboard slot
1 X PS/2 Mouse slot
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
SIZE
280mm x 216mm
PACKING
20PCS IN ONE CARTON
| CPU |
| SUPPORT PROCESSOR LAG1366 SOCKET,Intel Core i7 PROCESSOR |
| Chipset |
| Northbridge: Intel X58 Express Chipset |
| Southbridge: Intel+ICH10 |
| Memory |
| SUPPORT DDR3 1066/1333/1600 DOUBLE CHANNEL. |
| SUPPORT 3*240 PIN DDR3 SLOT , BIGGEST MEMORY 3*4GB |
| Sound Card |
| On board HD AUDIO , support 8 channel output (AUDIO1/2) |
| LAN Card |
| Inbuilt 10/100/1000 Mbit |
| Expansion Slot |
| 2 * PCI Express x16 |
| 1 * PCI Express x8 |
| 1 * PCI Compatibility PCI2.3 |
| SATA Slot |
| 5 X Serial ATA2 (Max Speed 300MB/S) |
| IDE Port |
| 1 X IDE CAN CONNECT TWO IDE DEVICES, SOUPPORT UDMA66/100/133 |
| I/O Port |
| 6 X USB 2.0 (2 inbuilt) |
| 1 X Serial Port, compatible high speed 16550 UART MODEL |
| 1 X PS/2 keyboard slot |
| 1 X PS/2 Mouse slot |
| Accessories |
| CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE. |
| SIZE |
| 280mm x 216mm |
| PACKING |
| 20PCS IN ONE CARTON |
