Product Specifications
| Prod Model: |
XCF Various model |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001,ISO14000 |
| Application: |
Ore Dressing Production Line |
| Capacity: |
Can Be Customized |
| Product Rating: |
First Grade Quality Products |
| Advantage: |
Professional Manufacture |
| Experience: |
More Than 50 Years |
| Company Established: |
1956 |
| Factory Area: |
55000m2 |
| Installation: |
Under Our Engineer's Guide |
| After Sale Service: |
for The Whole Using Life |
| Type: |
Flotation Separator |
| Color: |
Multi Color |
| Certification: |
ISO9001:2000 |
| Customized: |
Customized |
| Warranty: |
1 Year |
| Condition: |
New |
Product Description

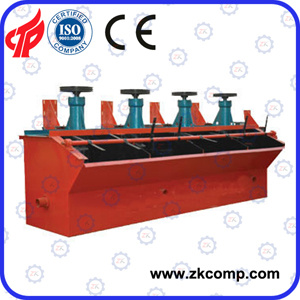

XCF/KYF flotation machine
The introduction of XCF/KYF flotation machine:
Models XCF and KYF are enforced aeration flotation machine. It has a smaller diameter of impeller, thus lower peripheral speed, saving 30-50% of power. Because and air distribut
Or is equipped in the tank, air is evenly dispersed. The impeller acts as a centrifugal pump, so as to make the solid particles suspending. The tank is mode as u type, reducing sand settlement to the least. Due to reasonable design of the impeller structure and the impeller space, impeller wearing is even, so, the service life of the impeller and stator are extended. Model KYF is unable to spontaneously suck slurry, while has low power consumption. In contrast, model XCF has the ability to automatically suck slurry, and may be allocated horizontally without need for foam pump, but consumes more power than model KYF. Therefore, model XCF and model KYF are combined into a set, i. E., XCF as the sucking tank, and KYF as the direct tank. The combined set can be arranged horizontally without foam pump either.
Henan Zhengzhou mining machinery Co., Ltd. Produces mineral processing equipment with advanced technology and production equipment, and mineral processing equipment are suitable for all kinds of non-ferrous metals, ferrous metals, rare metals and non-metallic mining. The company has 150 t of large crane, rolls over 90 mm steel plate of large plate bending rolls and produces ball mil with diameter above 4 m. At the same time, we can provide you with a full set of solutions with consulting, design, manufacturing, installation and debugging process equipment.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html
| model | Volume | cell size | impeller Dia. | impeller speed | capacity | Power |
| (m3) | (mm) | (mm) | (r/min) | (m3/min) | (kw) |
| XCF/KYF | 1 | 1000x1000x1100 | 400/340 | 358/281 | 0.2-1 | 5.5/4/1.1 |
| XCF/KYF | 2 | 1300x1300x1250 | 470/410 | 331/247 | 0.4-2 | 7.5/5.5/1.1 |
| XCF/KYF | 3 | 1600x1600x1400 | 540/480 | 266/219 | 0.6-3 | 11/7.5/1.5 |
| XCF/KYF | 4 | 1800x1800x1500 | 620/550 | 215/200 | 1.2-4 | 15/11/1.5 |
| XCF/KYF | 6 | 2050x2050x1750 | 620/550 | 215/200 | 3-6 | 15/11/1.5 |
| XCF/KYF | 50 | 4400x4400x3500 | 1200/1030 | 134 | 10-40 | 90/75/1.5 |
| XCF/KYF | 70 | 5100x5100x3800 | 1120/1120 | 121 | 13-50 | 90/90/1.5 |
| XCF/KYF | 100 | 5900x5900x4200 | 1260/1260 |
| 20-60 | 132/110/1.5 |
Henan Zhengzhou Mining Machinery Co., Ltd, was established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 55000m2 and various building area of 28000 m2. It has the annual income of more than RMB180million in 2008 and now the fixed assets of over RMB80 million. In the plant, there are branches and workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
Main products include: Jaw style, hammer style, impact style and roll style crusher; Ball mill, direct fired drier, rotary kiln, preheater, coker, magnetic separator, flotation machine, classifier, feeder, hoisting machine and conveyor etc. These complete sets of machinery for cement building material, metallurgy, coking and chemical smelting etc are sold well in the world. Our company also has professional installation and construction teams and perfect after-sales service guaranty system.
With the development of the People's Republic of China, Henan Zhengzhou Mining Machinery Co., Ltd undergoes frequent difficulties and has accomplished over 50 years' brilliant history. Initially from the manufacturing of original single machine till today's series of and complete sets of mining metallurgical machinery, it has made great contribution to the development and utilization of mineral resources of our country. For many years, each spot check and annual examination carried by National Mining Machinery Quality Supervision and Inspection Center for our products is acceptable and our company is always appointed as Credible and Reputed Enterprise by Henan Provincial Administration of Industry and Commerce.
Henan Zhengzhou Mining Machinery Co., Ltd will continue providing excellent products and service for our society, with the guideline of "survival by quality, development by good faith, users supreme". Our company would make sincere cooperation with all circles for mutual benefit and common development.
