Oriemac Machinery & Equipment (Shanghai) Co., Ltd. >> XCMG 8ton Remote Control Small Crawler Excavator Xe80c

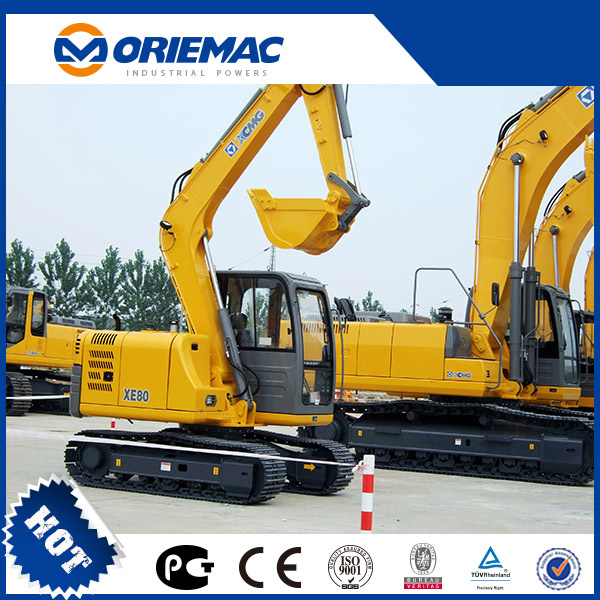

XCMG 8ton Remote Control Small Crawler Excavator Xe80c

Name: XCMG 8ton Remote Control Small Crawler Excavator Xe80c
Brand: china-manufacturer-directory.com
SKU: 728652985
Availability: InStock
Rating: 5 (98 reviews)

Supplier:	Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Price:	US $ 50000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XE80C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Crawler Excavator
Size:	Small-Scale
Condition:	New
Certification:	ISO9001: 2000

Product Description

XCMG 8ton excavator hydraulic cylinder XE80C
Bucket: 0.3m3, digging force 53.6kn
Rated power: 60kw
Operating weigh: 7460KG, ISUZU

XCMG 8ton excavator hydraulic cylinder XE80C

Specifications
Bucket: 0.3m3
Digging force 53.6kn
Rated power: . 60kw
Operating weigh: 7460KG
ISUZU Engine
LUDV Hydraulic System

XCMG XE80C Mini Hydraulic Excavator 51.2kn 53.8kw imported ISUZU engine

Model			XE15	XE40	XE50C	XE60CA	XE65CA	XE80C
Operating weight		kg	1640	4050	5030	5960	5960	8270/7870
Standard bucket capacity		m³	0.044	0.14	0.18	0.09-0.23	0.09-0.25	0.14-0.34
	Engine Model	/	3TNV82A	4TNV88	4TNV88-SYY	4TNV94L	4TNV94L	B3.3
	Direct injection	/	√	√	√	√	√	√
	4 Four strokes	/	√	√	√	√	√	√
	Water cooling	/	√	√	√	√	√	√
	Turbo charged	/	×	×	×	×	×	√
	Air to air intercooler	/	×	×	×	×	×	×
	No. of cylinders	/	3	4	4	4	4	4
	/ Rated power/speed	kw/rpm	16.5/2200	27.1/2200	37.6/2200	39.8/2200	39.8/2200	60/2200
	/ Max. torque/speed	N.m	86.5/1320	142/1320	142	214/1100	214/1100	292/1600
	Displacement	L	1.33	2.19	2.19	3.054	3.054	3.3
	Travel speed	km/h	4.4/2.4	4.2/2.6	4.2/2.6	4.2/2.2	4.2/2.2	4.9/2.6
	Swing speed	r/min	11	13.5	13.5	11	11	12
	Max. gradeability	/	30	30	58%	30	30	35
	Ground pressure	kPa	23.8	36.3	29.5	32.5	32.5	35
	Max.Bucket digging force	kN	13.9	23.2	23.2	48.3	48.3	53.6
	Max.arm crowd force	kN	8.8	19.3	19.3	32.5	32.5	39.2
	Max.traction force	kN	12.2	33.9	--	--	--	59
	Main pump	/			--		--
	Rate flow of main pump	L/min	2×19.8+14.1	1×110+11	2×55+11	143	156.2	1×198+21
	Max pressure of prime relief valve	MPa	24	21	21	24.5	24.5	27.4
	Max pressure of travel system	MPa	21	21	21	22	22	27.4
	Max pressure of swing system	MPa	18	21	16.7	21	21	20.6
	Max pressure of pilot system	MPa	3.3	3.9	3.9	3.5	3.5	3.9
	Fuel tank capacity	L	20	65	65	110	110	127
	Hydraulic tank capacity	L	29	70	70	85	85	124
	Engine lubrication	L	5.5	7.4	7.4	12	12	7
	A Overall length	mm	3760	5455	5475	5860	5860	6155
	B Overall width	mm	1080	1650	1800	1920	1920	2320
	C Overall height	mm	2400	2440	2540	2585	2585	2635
	D Overall width of upperstructure	mm	1080	1500	1500	1780	1780	--
	E Overall width of undercarriage	mm	1080	1635	1800	1920	1920	2320
	F crawer width	mm	230	300	400	400	400	450
	G Tumbler distance	mm	1217	1721	1917	1990	1990	2180
	H Crawer gauge	mm	850	1335	1400	1500	1500	1870
	I Clearance under counter weight	mm	472	578	675	710	710	821
	J Ground clearance	mm	180	350	381	385	385	428
	K(/)Dozer black(width/height)	mm	1080/225	1650/300	1800/340	1920/340	1920×340	--
	A Max. digging height	mm	3616	5320	5412	5630	5630	7188
	B Max. dumping height	mm	2478	3700	3788	3945	3945	5100
	C Max. digging depth	mm	2320	3600	3555	3830	3830	4119
	D Max. vertical wall digging depth	mm	1520	2580	3115	2680	2680	3197
	E Max. digging reach	mm	3915	5810	5810	6130	6130	6375
	F Min. swing radius	mm	2335	2385	2385	2460	2460	--
	G Min.tail swing radius	mm	1190	1490	1490	1660	1660	1770
	Max.dozer lifting height	mm	220	255	718	390	390	409
	Max.dozer cutting depth	mm	240	375	560	560	560	438
		mm	1690	2795	2795	3000	3000	3710
		mm	1100	1600	1600	1600	1600	1650
		m³	0.044	0.14	0.18	0.23	0.25	0.34
		m³	/	/	/	0.2	0.2/0.23	0.3
		m³	/	/	/	0.09	0.09	0.14
