Product Specifications
| Prod Model: |
WZ30-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Loading Weight: |
950kg |
| Rated Bucket Capacity: |
1.0m3 |
| Digger Capacity: |
0.3 M3 |
| Wheelbase: |
2600 mm |
| Wheel-Tread: |
1700mm |
| Engine Model: |
Yuchai Yc4108 |
| Rated Power: |
65kw |
| Rated Speed: |
2500r/Min |
| Max.Digging Depth: |
4400mm |
| Dimension: |
8000×2200×3350mm |
| Type: |
Small Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Rotary |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
Specifications
Bachhoe loader with competitive price .
1. With multi-function .
2.Imported key components , axle, hydraulic system .

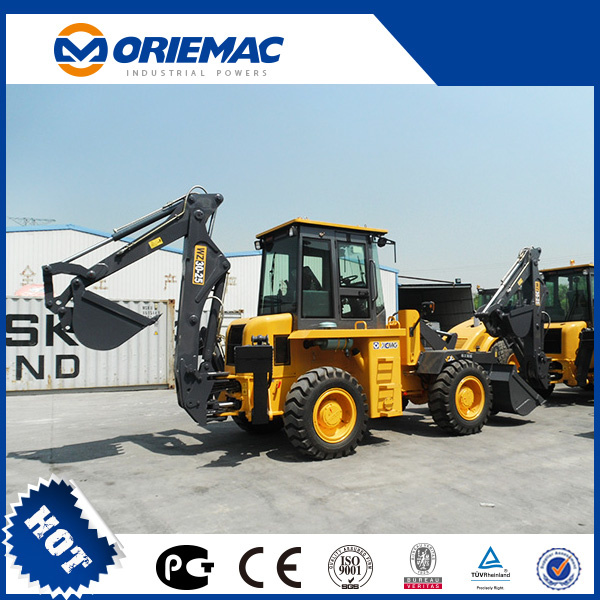

XCMG Mini Backhoe Loader with competitive price
1. The WZ30-25 is a new multi-function agricultural / compact machine equipment which gathering the loading and excavating in the integral whole machine.
2. Adopt engine which is powerful and with low maintenance. Reach Europe III exhaustion standard .
3. Traveling has been improve by means of the highest speed. It is usually used in the narrow ground because of the small turning radius. 4-wheel drive bring it high drawbar force,
4. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make intime brake automatically, so it is more safety.
Description |
WZ30-25 |
Rated loading weight |
950kg |
Rated bucket capacity |
1.0m3 |
Digger capacity |
0.3 m3 |
Wheelbase |
2600 mm |
Wheel-tread |
1700mm |
Unloading height |
2650mm |
Unloading distance |
930 mm |
Max.steering angle |
±35º |
max.steering angle of dig working device |
±85º |
I Traceing speed I(F/R) |
0-6.2km/h |
II Traceing speed II(F/R) |
0-12km/h |
III Traceing speed III(F/R) |
0-20km/h |
Traceing speed (F/R) |
0-33km/h |
I Back I speed |
0-8 km/h |
II Back II speed |
0-28.5 km/h |
Diesel |
YUCHAI |
Model |
YC4108 |
Rated power |
65KW |
Rated speed |
2500r/min |
Tire specification |
16/70-24 |
Max.digging depth |
4400mm |
Max.digging radium |
5471mm |
Contour dimension(Length×width×height) |
8000×2200×3350mm |
Operating weight |
9.5T |
Oriemac Machinery & Equipment (Shanghai) Co., Ltd. is a top package equipment solution provider in Shanghai, China, especially for construction machinery, heavy industrial equipment and vehicle. We are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly and on schedule. With over 8 years experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001: 2008 standard, Oriemac had established and have been consistently keeping good business relationship with many general contractors, civil engineering companies and construction companies throughout the world. We participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present.
To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, Oriemac has been often praised by our customers and has taken great reputation as a trustworthy partner.
Oriemac believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers.
Oriemac, industrial powers for your projects!
